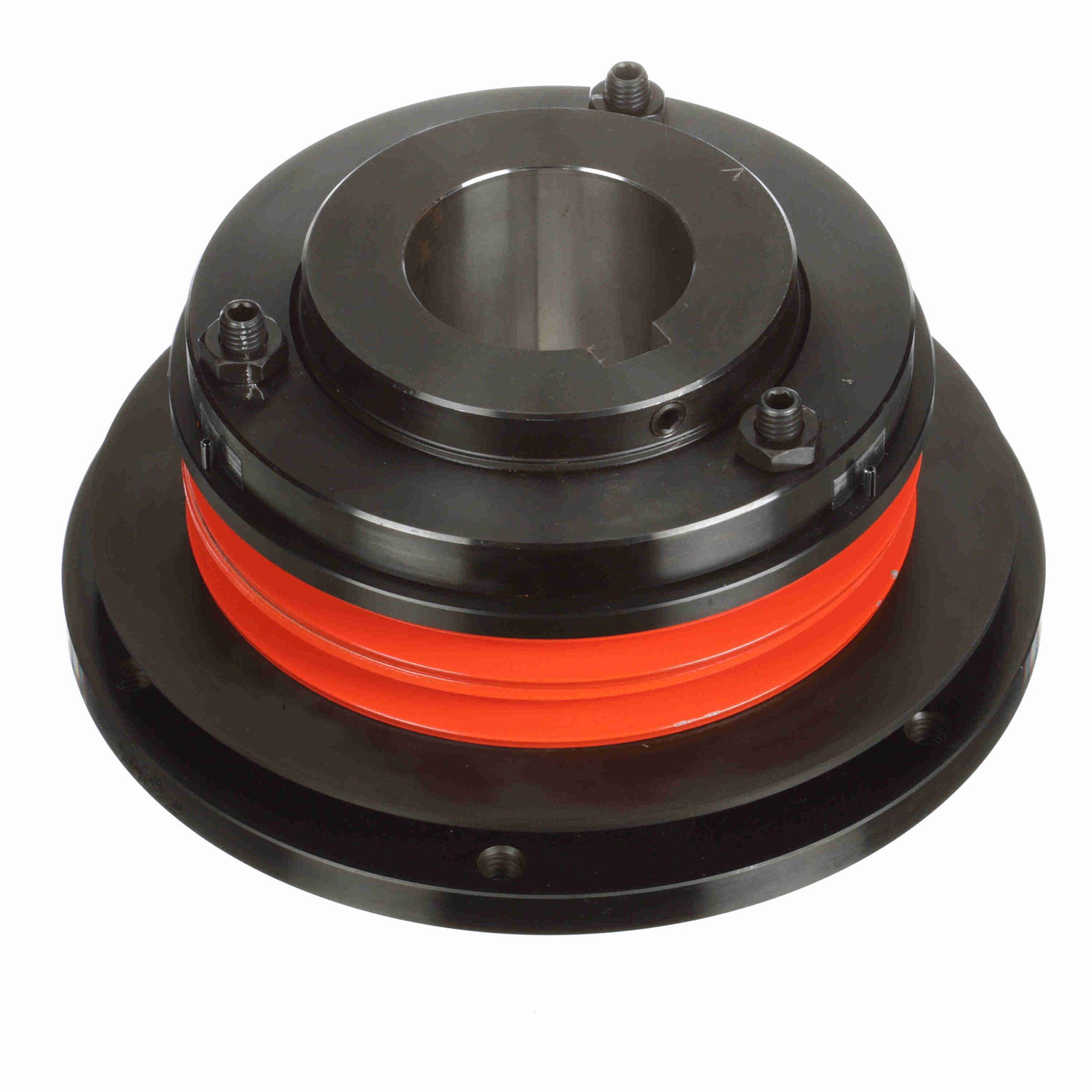

TP70X 2 7/16

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Total Length (mm):	109.982 mm	Outside Diameter (in):	8.63 in
Recovery Style:	Jog	Speed Limit:	160
Number of Bolt Holes:	6	Nominal Bore (in):	2.4375 in
Outside Diameter (mm):	219.202 mm	Sensor Travel:	0.13
Sensor Plate:	Yes	Bolt Hole Thread Size (in):	3/8, 16 in
Backlash:	Small	Detection Method:	Ball Detent
Total Length (in):	4.33 in	Hub Diameter (in):	4.17 in
Series / Model:	TP70	Mounting Bolt Circle Diameter:	7.88
Bore Size (in):	2.4375 in	Nut Diameter (in):	6.18 in
Type:	Torque Overload Devices	Disc Spring Color:	Yellow
Torque [Min] (N-m):	293.8	Bore Shape:	Straight Bore
Torq/Pro Sprockets:	STP70	Disconnect Method:	Ball Detent
Bore Size (mm):	61.9125 mm	Spring Diameter:	6.54
Unit Accuracy:	0.1	Reset Type:	Automatic
Torque Capacity [Min] (lb-ft):	216.666666666667	Torque [Max] (N-m):	1, 079.15
Torque Capacity [Max] (lb-ft):	795.833333333333	Flange Diameter (in):	6.69 in
Bore (Max) (in):	2.4375 in	Product Type:	Torq Pro Torque Limiter
Max RPM:	160	Bore (Min) (in):	2.4375 in
Torque Capacity [Max] (in-lb):	9, 55	Torque Capacity [Min] (in-lb):	2, 6
Pilot Size:	8.625	Bore Type:	Finished w/ Keyway
UPC:	6, 62288E+11	Weight:	37.00 LB
Packaged Length:	10.10 Inches	Packaged Width:	9.70 Inches
Packaged Height:	10.60 Inches	HTC:	8483.60.8000
Country of Origin:	Japan
