- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
TP30LX1

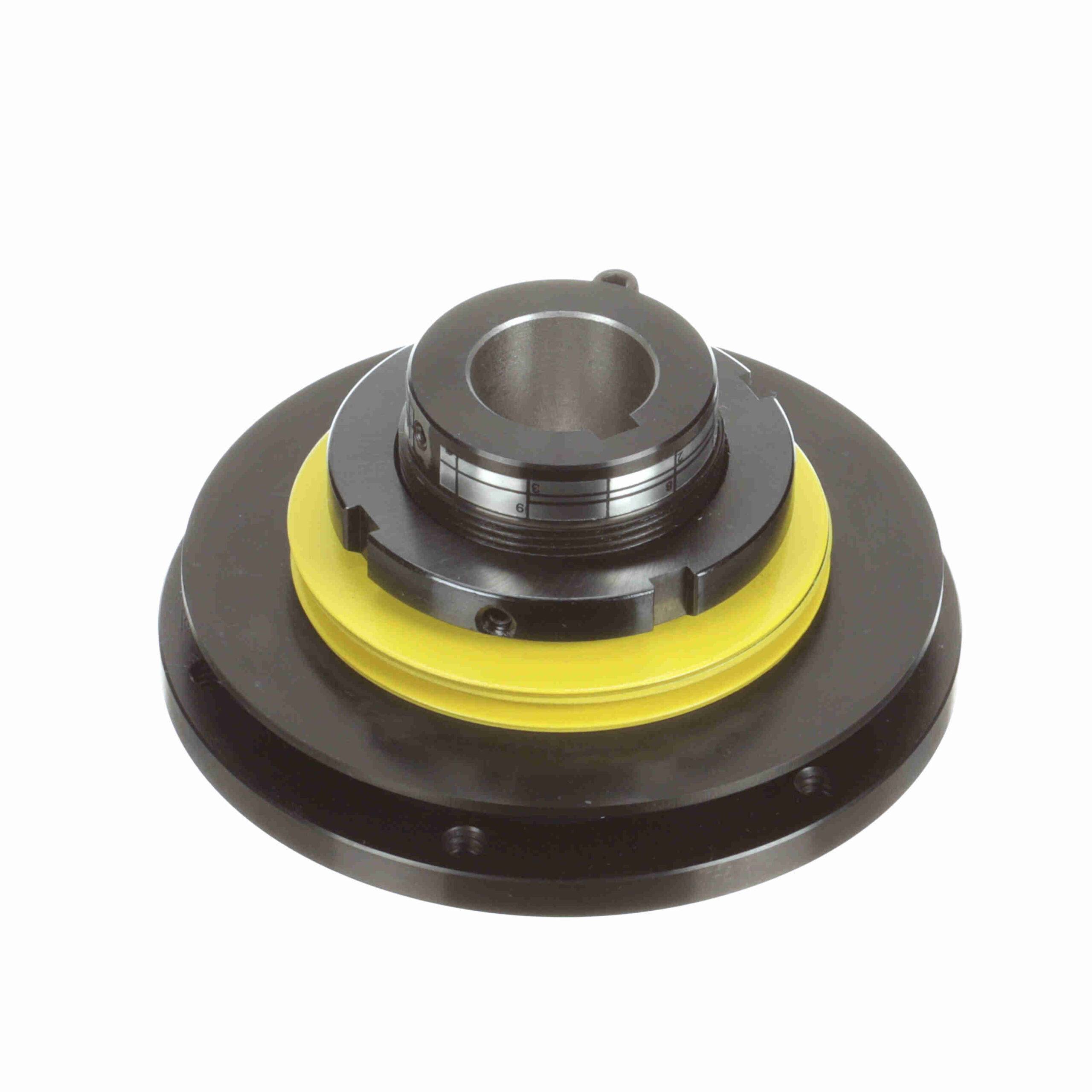

Browning Torq Pro Torque Limiter Model – TP30L – TP30LX1
$2,040.39
Out of stock
Out of stock
| Hub Diameter (in): | 1.67 in | Clutch size code: | 30 |
|---|---|---|---|
| Outside Diameter (in): | 4.44 in | Sensor Plate: | Yes |
| Unit Accuracy: | 0.1 | Recovery Style: | Jog |
| Bore Size (mm): | 25.4 mm | Bore Shape: | Straight Bore |
| Disc Spring Color: | Yellow | Bolt Hole Thread Size (in): | 1/4, 20 in |
| Reset Type: | Automatic | Spring Diameter: | 2.95 |
| Torq/Pro Sprockets: | STP30 | Type: | Torque Overload Devices |
| Backlash: | Small | Series / Model: | TP30L |
| Disconnect Method: | Ball Detent | Total Length (in): | 2.36 in |
| Speed Limit: | 500 | Total Length (mm): | 59.944 mm |
| Outside Diameter (mm): | 112.776 mm | Detection Method: | Ball Detent |
| Sensor Travel: | 0.08 | Number of Bolt Holes: | 6 |
| Torque [Min] (N-m): | 19.775 | Mounting Bolt Circle Diameter: | 3.94 |
| Nut Diameter (in): | 2.56 in | Nominal Bore (in): | 1 in |
| Bore Size (in): | 1 in | Torque Capacity [Min] (lb-ft): | 14.5833333333333 |
| Flange Diameter (in): | 3.23 in | Product Type: | Torq Pro Torque Limiter |
| Torque Capacity [Max] (lb-ft): | 39.5833333333333 | Bore (Max) (in): | 1 in |
| Torque [Max] (N-m): | 53.675 | Torque Capacity [Min] (in-lb): | 175 |
| Torque Capacity [Max] (in-lb): | 475 | Bore (Min) (in): | 1 in |
| Max RPM: | 500 | UPC: | 6, 62288E+11 |
| Weight: | 4.50 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.50 Inches | Packaged Height: | 3.12 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | Japan |
