- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
TP30HXMPB

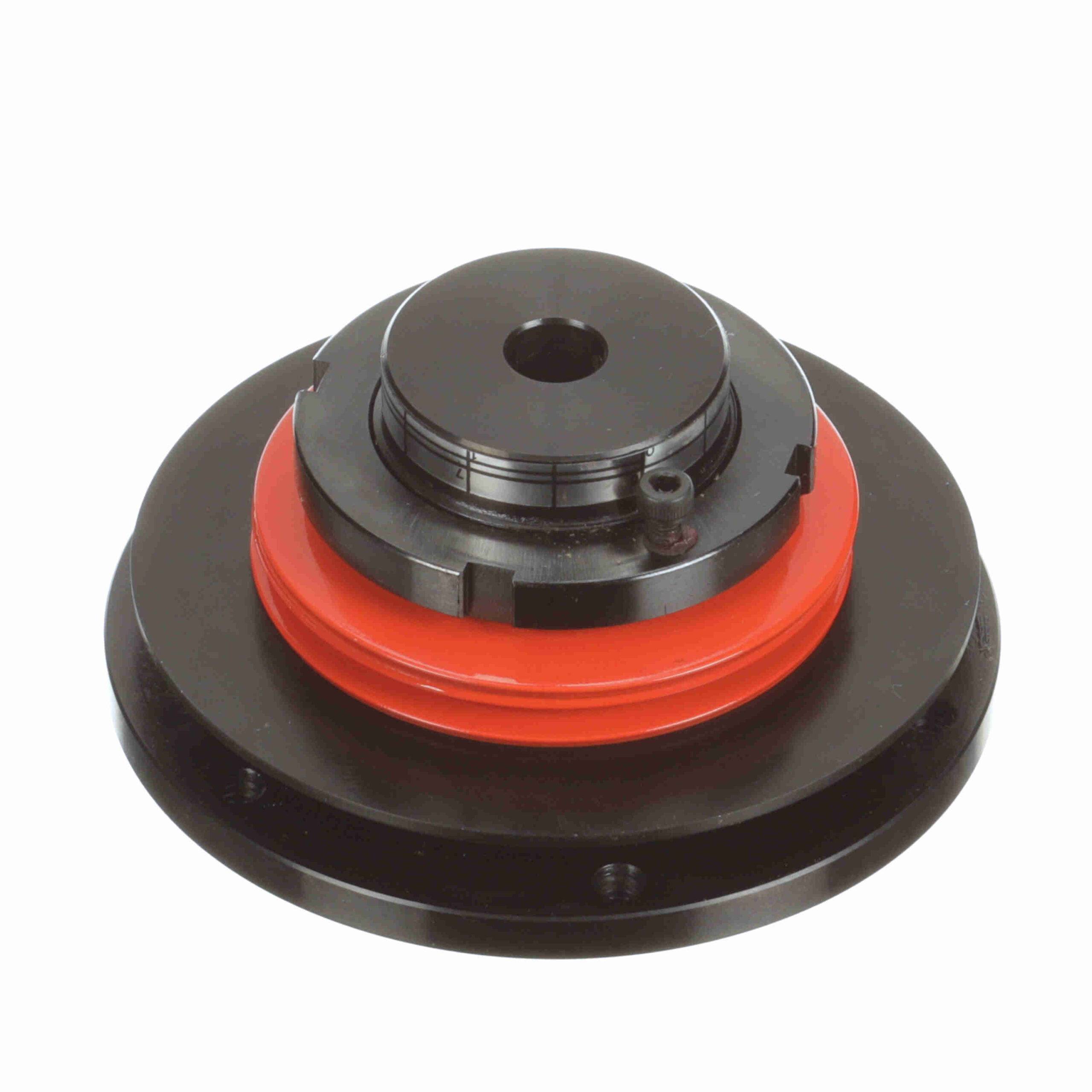

Browning Torq Pro Torque Limiter Model – TP30H – TP30HXMPB
$2,283.78
Out of stock
Out of stock
| Bore Size (in): | 0.47, 1.1875 in | Disconnect Method: | Ball Detent |
|---|---|---|---|
| Bore Shape: | Straight Bore | Hub Diameter (in): | 1.67 in |
| Total Length (mm): | 59.944 mm | Number of Bolt Holes: | 6 |
| Type: | Torque Overload Devices | Nominal Bore (in): | 0.47 in |
| Recovery Style: | Jog | Detection Method: | Ball Detent |
| Disc Spring Color: | Orange | Total Length (in): | 2.36 in |
| Spring Diameter: | 2.95 | Speed Limit: | 500 |
| Backlash: | Small | Series / Model: | TP30H |
| Bolt Hole Thread Size (in): | 1/4, 20 in | Reset Type: | Automatic |
| Outside Diameter (mm): | 112.776 mm | Torq/Pro Sprockets: | STP30 |
| Nut Diameter (in): | 2.56 in | Mounting Bolt Circle Diameter: | 3.94 |
| Sensor Plate: | Yes | Sensor Travel: | 0.08 |
| Torque [Min] (N-m): | 53.675 | Unit Accuracy: | 0.1 |
| Clutch size code: | 30 | Outside Diameter (in): | 4.44 in |
| Flange Diameter (in): | 3.23 in | Torque Capacity [Max] (lb-ft): | 122.916666666667 |
| Product Type: | Torq Pro Torque Limiter | Torque Capacity [Min] (lb-ft): | 39.5833333333333 |
| Bore (Max) (in): | 1.1875 in | Torque [Max] (N-m): | 166.675 |
| Max RPM: | 500 | Torque Capacity [Max] (in-lb): | 1, 475 |
| Torque Capacity [Min] (in-lb): | 475 | Bore (Min) (in): | 0.47 in |
| UPC: | 6, 62288E+11 | Weight: | 4.50 LB |
| Packaged Length: | 4.50 Inches | Packaged Width: | 4.50 Inches |
| Packaged Height: | 3.12 Inches | HTC: | 8483.60.8000 |
| Country of Origin: | Japan |
