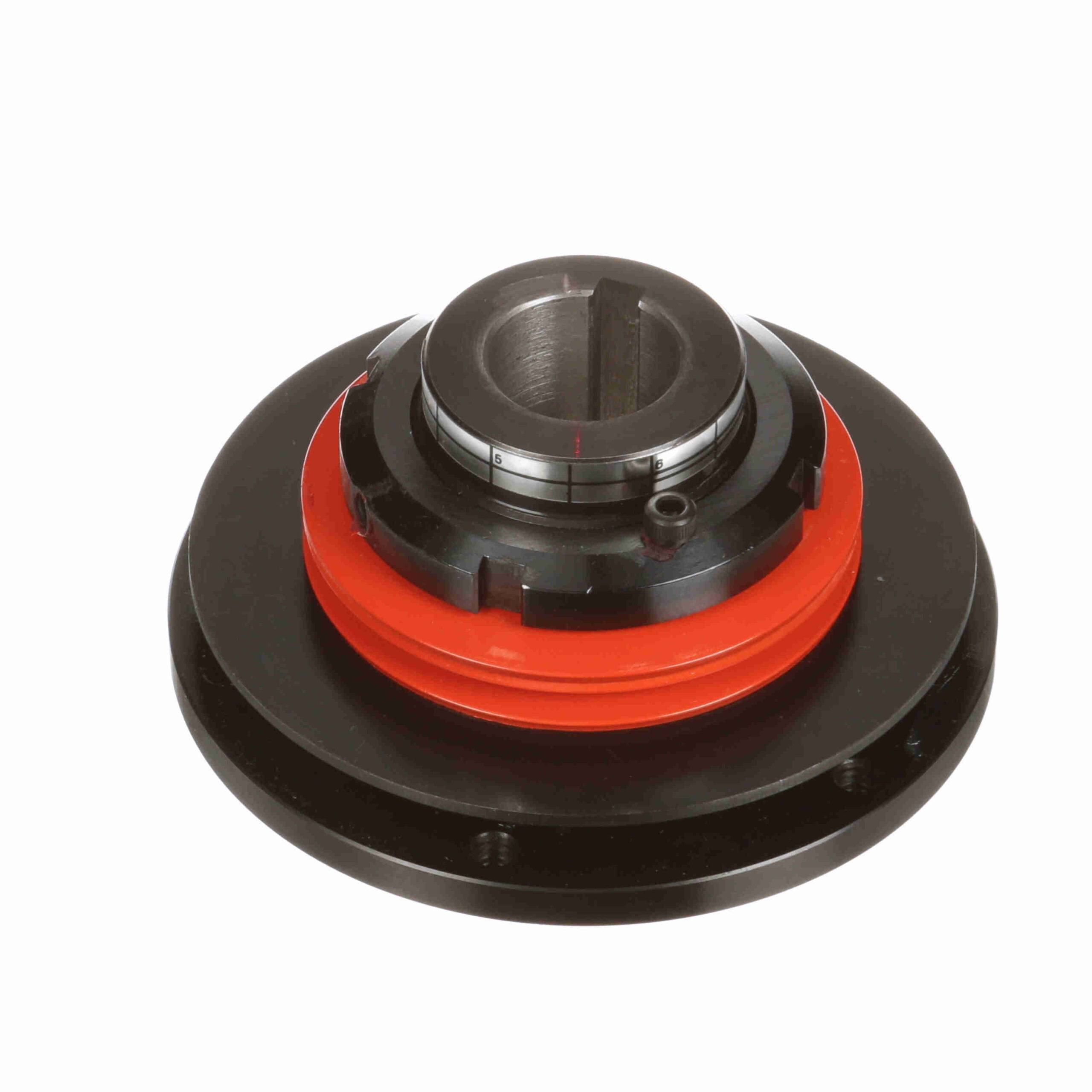

TP30HX1

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Backlash:	Small	Series / Model:	TP30H
Nut Diameter (in):	2.56 in	Torque [Min] (N-m):	53.675
Number of Bolt Holes:	6	Bore Shape:	Straight Bore
Bolt Hole Thread Size (in):	1/4, 20 in	Disc Spring Color:	Orange
Outside Diameter (mm):	112.776 mm	Clutch size code:	30
Reset Type:	Automatic	Torq/Pro Sprockets:	STP30
Mounting Bolt Circle Diameter:	3.94	Outside Diameter (in):	4.44 in
Type:	Torque Overload Devices	Detection Method:	Ball Detent
Bore Size (mm):	25.4 mm	Spring Diameter:	2.95
Hub Diameter (in):	1.67 in	Total Length (in):	2.36 in
Nominal Bore (in):	1 in	Bore Size (in):	1 in
Disconnect Method:	Ball Detent	Speed Limit:	500
Unit Accuracy:	0.1	Sensor Plate:	Yes
Sensor Travel:	0.08	Recovery Style:	Jog
Total Length (mm):	59.944 mm	Torque [Max] (N-m):	166.675
Torque Capacity [Min] (lb-ft):	39.5833333333333	Product Type:	Torq Pro Torque Limiter
Bore (Max) (in):	1 in	Torque Capacity [Max] (lb-ft):	122.916666666667
Flange Diameter (in):	3.23 in	Torque Capacity [Min] (in-lb):	475
Torque Capacity [Max] (in-lb):	1, 475	Max RPM:	500
Bore (Min) (in):	1 in	UPC:	6, 62288E+11
Weight:	4.50 LB	Packaged Length:	4.50 Inches
Packaged Width:	4.50 Inches	Packaged Height:	3.12 Inches
HTC:	8483.60.8000	Country of Origin:	Japan
