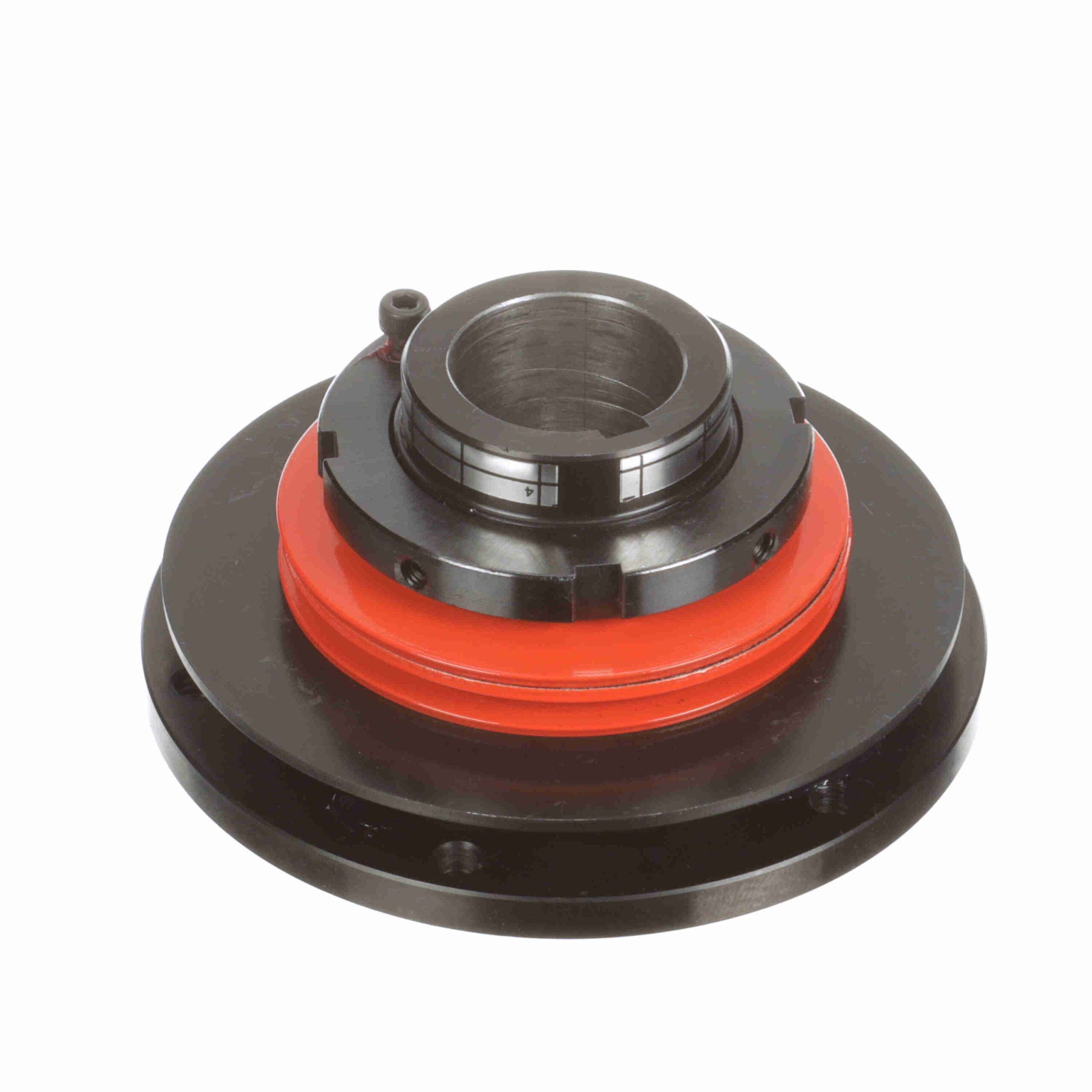

TP30HX 1 3/16

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Disc Spring Color:	Orange	Number of Bolt Holes:	6
Sensor Plate:	Yes	Clutch size code:	30
Total Length (mm):	59.944 mm	Torq/Pro Sprockets:	STP30
Total Length (in):	2.36 in	Series / Model:	TP30H
Nut Diameter (in):	2.56 in	Hub Diameter (in):	1.67 in
Backlash:	Small	Bore Shape:	Straight Bore
Torque [Min] (N-m):	53.675	Bore Size (in):	1.1875 in
Recovery Style:	Jog	Unit Accuracy:	0.1
Nominal Bore (in):	1.1875 in	Type:	Torque Overload Devices
Outside Diameter (in):	4.44 in	Sensor Travel:	0.08
Bore Size (mm):	30.1625 mm	Detection Method:	Ball Detent
Mounting Bolt Circle Diameter:	3.94	Disconnect Method:	Ball Detent
Speed Limit:	500	Bolt Hole Thread Size (in):	1/4, 20 in
Reset Type:	Automatic	Outside Diameter (mm):	112.776 mm
Spring Diameter:	2.95	Torque Capacity [Min] (lb-ft):	39.5833333333333
Bore (Max) (in):	1.1875 in	Product Type:	Torq Pro Torque Limiter
Torque [Max] (N-m):	166.675	Flange Diameter (in):	3.23 in
Torque Capacity [Max] (lb-ft):	122.916666666667	Max RPM:	500
Bore (Min) (in):	1.1875 in	Torque Capacity [Min] (in-lb):	475
Torque Capacity [Max] (in-lb):	1, 475	UPC:	6, 62288E+11
Weight:	4.50 LB	Packaged Length:	4.50 Inches
Packaged Width:	4.50 Inches	Packaged Height:	3.12 Inches
HTC:	8483.60.8000	Country of Origin:	Japan
