- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

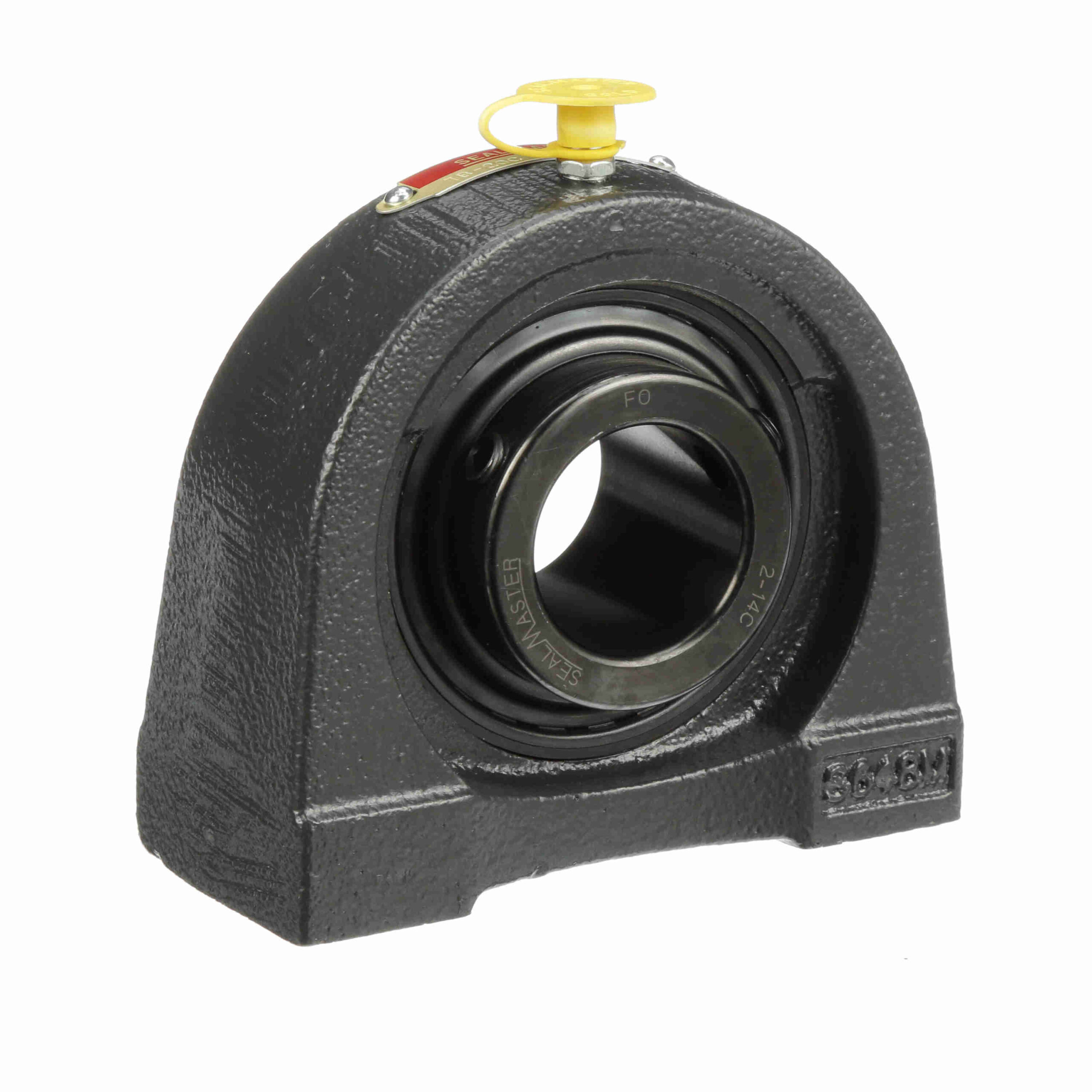

TB-20C
Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – TB-20C
$211.33
Out of stock
Out of stock
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Housing Type: | Pillow Block, Tapped Base | Speed (Max): | 4650 |
| Expansion: | No | Housing Material: | Cast Iron |
| Duty Series: | Standard Duty | Rolling Element: | Ball Bearing |
| Maximum Operating Temperature: | 220 °F | Measure Units: | Inch |
| Retainer Type: | Land Riding Retainer | Insert No.: | 2-14C |
| Seal Type: | Single Lip Contact Seal | Internal Clearance: | Standard |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Locking Type: | Setscrew |
| Misalignment Type: | Static Only | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Housing Color: | Gray | Radial Static Load Capacity (lb): | 3, 493 |
| UPC: | 662461024447 | Weight: | 4.08 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
