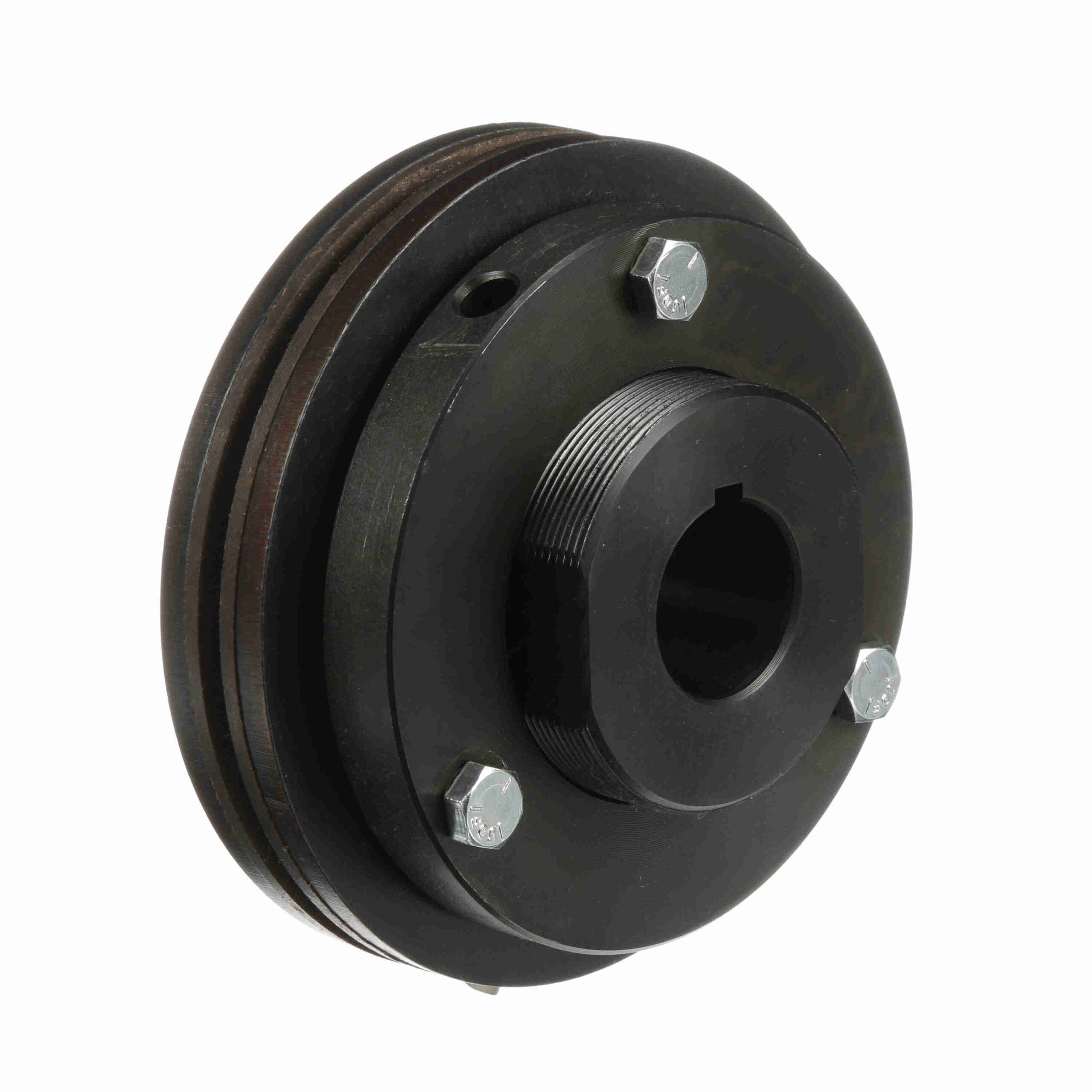

Browning Torque Limiter Model – T55L – T55LX 1 1/4

SKU: 1296516 Category: Mechanical Clutches

$1,013.00

Out of stock

Out of stock

Product Information
Specifications

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
Browning torque limiters are friction type devices that reset to any position

Recovery Style:	Automatic	Outside Diameter (mm):	139.7 mm
Reset Type:	Automatic	Bore Size (mm):	31.75 mm
Sprocket:	T55L	Bore Shape:	Straight Bore
Outside Diameter (in):	5.5 in	Disconnect Method:	Friction Pad
Series / Model:	T55L	Type:	Torque Overload Devices
Detection Method:	Friction Pad	Bore Size (in):	1.25 in
Total Length (mm):	82.55 mm	Torque [Max] (in-Ibs) (1 Spring):	3, 800
F (1 Spring):	1.25	Unit Accuracy:	0.25
Backlash:	Zero	Total Length (in):	3.25 in
F (2 Spring):	1.375	Torque [Max] (in-Ibs) (2 Spring):	6, 800
Sensor Plate:	No	Product Type:	Torque Limiter
Torque [Max] (N-m):	429.4	Max RPM:	1, 000
Bore (Max) (in):	1.25 in	Bore (Min) (in):	1.25 in
Torque Capacity [Max] (lb-ft):	566.666666666667	Torque Capacity [Min] (lb-ft):	0
Torque Capacity [Max] (in-lb):	3, 800	Minimum Sprocket Teeth:	#50 (32 Teeth)
