- Cast iron housed, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
STMH-23

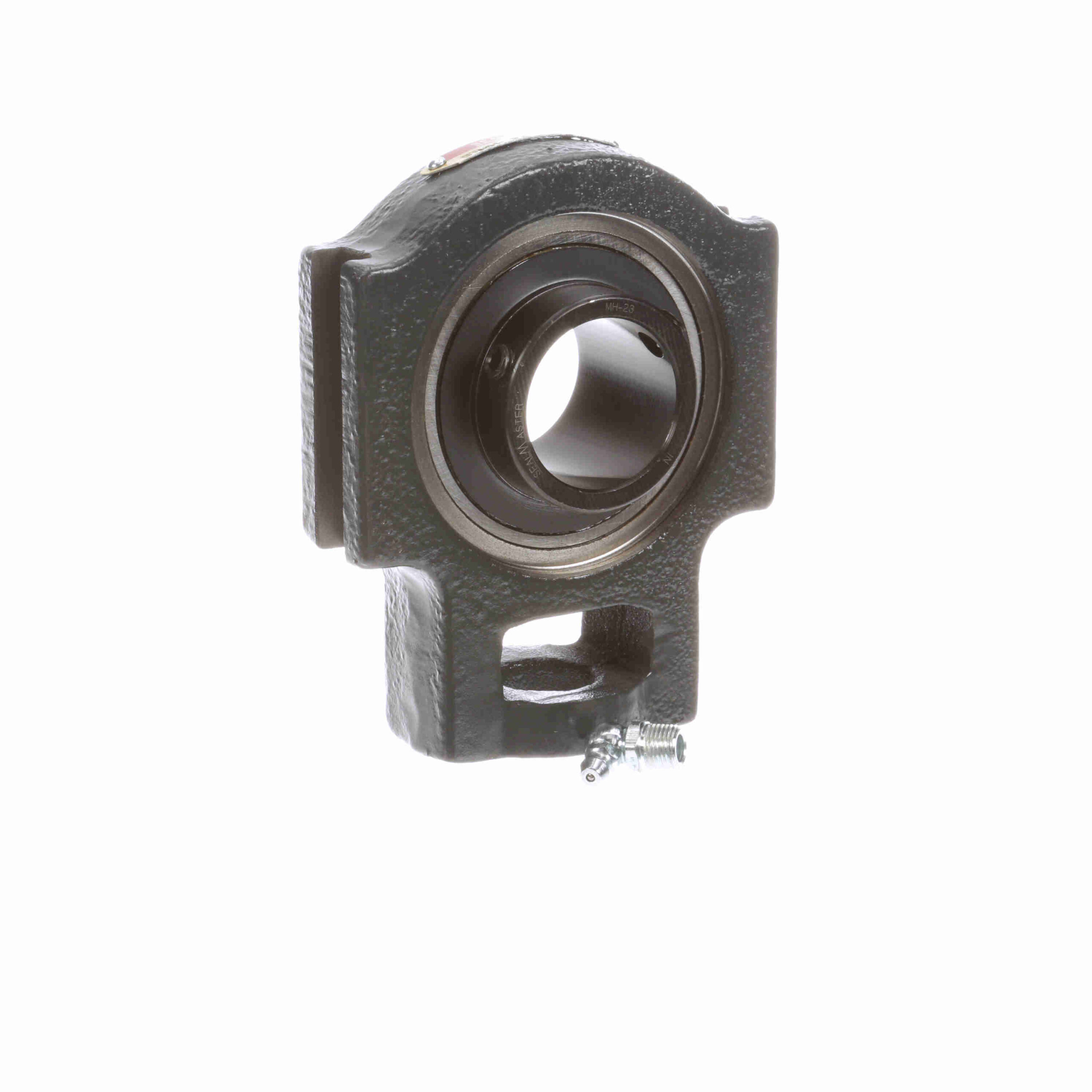

Sealmaster Mounted Cast Iron Wide Slot Take Up Housing & Frame Assembly Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – STMH-23
$240.74
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal with Flinger | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Measure Units: | Inch |
| Radial Dynamic Load Capacity (lb): | 5, 782 lb | Misalignment: | ±2.0° Misalignment - Static Only |
| Bore Shape: | Straight | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Platform: | Gold Line Ball Bearing | Housing Color: | Gray |
| End Cap: | No | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 3, 493 lb | Series: | ST |
| Unit Type: | Side Mount | Component Description: | Take Up Unit with Frame |
| Housing Type: | Take-Up Assembly, Wide Slot | Duty/Series: | Standard Duty |
| Locking Type: | Setscrew | Maximum Speed (RPM): | 4000 rpm |
| Housing Style: | Take-Up Assembly | Fixed vs. Expansion: | Fixed |
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | MH-23 |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 3.63 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
