- 440C Stainless Steel bearing inner and outer ring with setscrew lock
- 304 Passivated stainless steel investment cast housing
- Molded silicone single lip contact seal with 300 series stainless steel flinger
- H1 Food Grade grease
STBS-S212

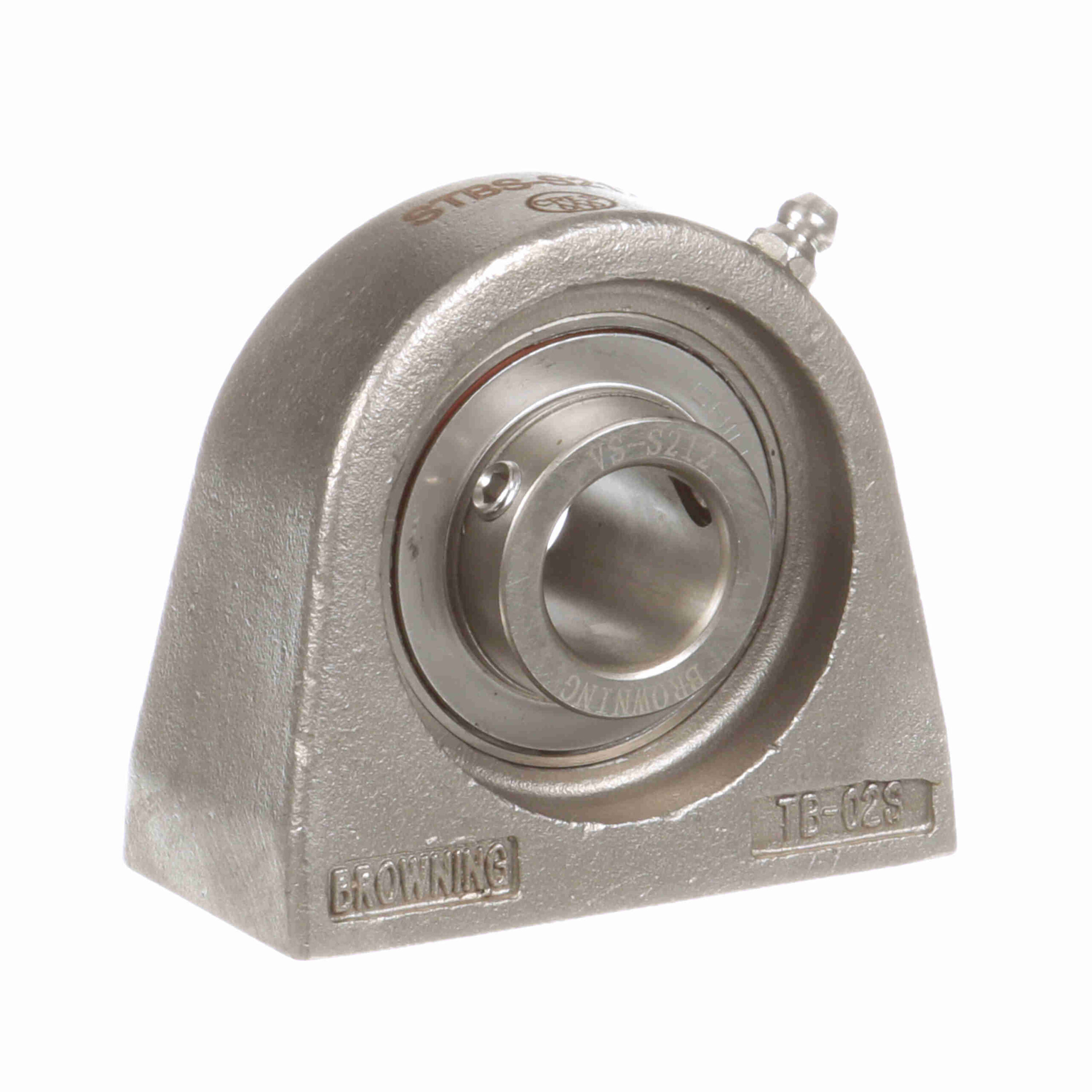

Browning Mounted Stainless Steel Tapped Base Stainless Steel Pillow Block Ball Bearing – 400 Series Stainless Steel – SS Setscrew Lock – Corrosion Resistant – STBS-S212
$384.17
Out of stock
Out of stock
| Measure Units: | Inch | Insert Material: | 400 Series Stainless Steel |
|---|---|---|---|
| Housing Base: | Semi-Solid | Seal Type: | Single Lip Contact Seal with Flinger |
| Rolling Element: | Ball Bearing | Misalignment: | ±1.5° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 2, 611 lb | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Options: | Corrosion Resistant | End Cap: | No |
| Bearing Insert Coating: | Uncoated | Outer Ring Land Profile: | Standard |
| Retainer Material: | Stainless Steel Riveted | Platform: | CRES SS |
| Housing Color: | Silver | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Radial Static Load Capacity (lb): | 1, 444 lb |
| Lubrication Type: | NSF H1 Food Grade Grease | Housing Style: | Pillow Block |
| Duty/Series: | Standard Duty | Housing Material: | Stainless Steel |
| Locking Type: | Setscrew | Fixed vs. Expansion: | Fixed |
| Housing Type: | Pillow Block, Tapped Base | Retainer Type: | Ball Riding Retainer |
| Maximum Speed (RPM): | 6500 rpm | Insert Number: | VS-S212 |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662460000000 | Weight: | 1.46 LB |
| Packaged Length: | 3.13 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | China |
