Global Dynamic Systems

STBS-S223

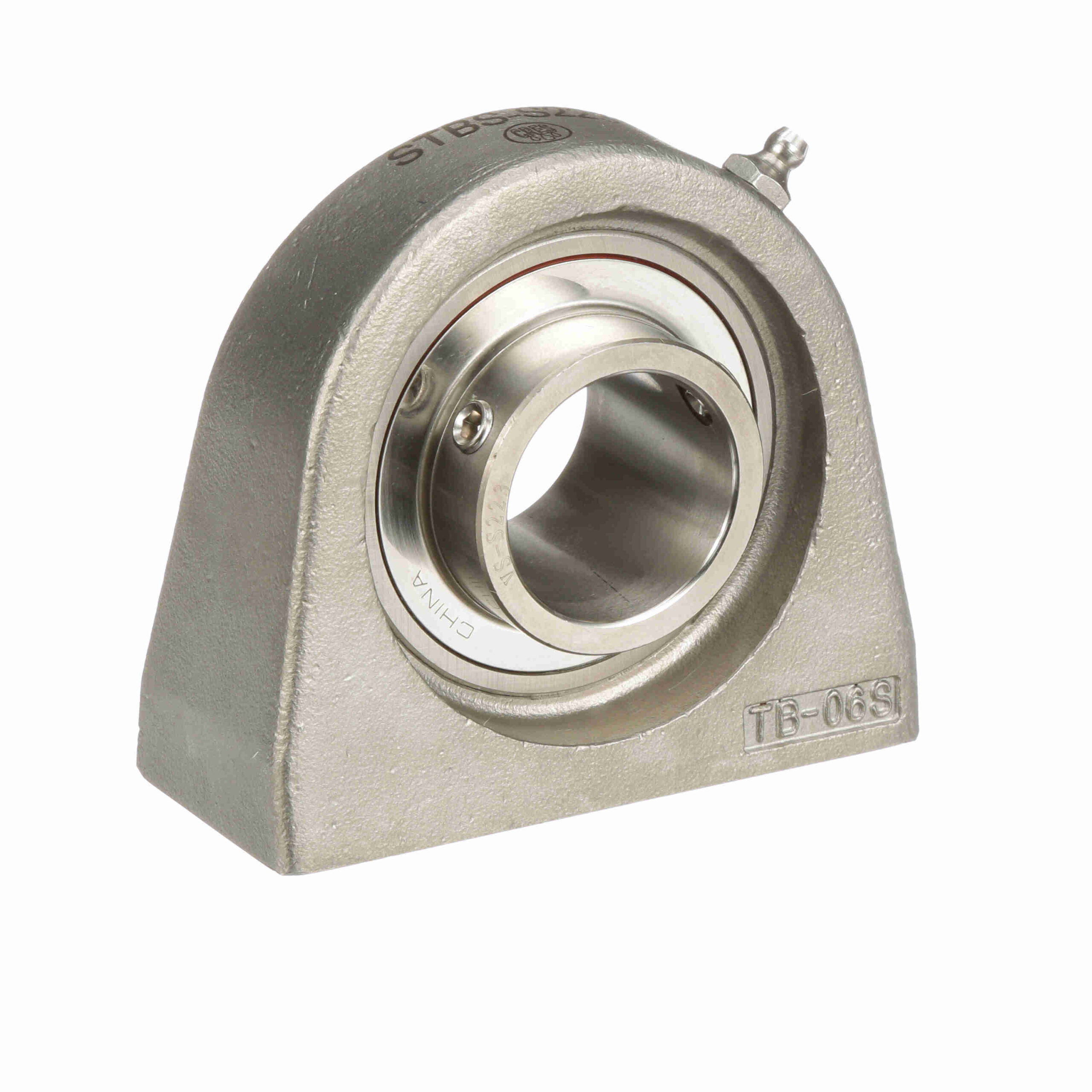

Browning Mounted Stainless Steel Tapped Base Stainless Steel Pillow Block Ball Bearing – 400 Series Stainless Steel – SS Setscrew Lock – Corrosion Resistant – STBS-S223

SKU: 764285 Category:

$388.39

Out of stock

Out of stock

stripe checkout
  • 440C Stainless Steel bearing inner and outer ring with setscrew lock
  • 304 Passivated stainless steel investment cast housing
  • Molded silicone single lip contact seal with 300 series stainless steel flinger
  • H1 Food Grade grease
Housing Type:

Pillow Block; Tapped Base

Housing Base:

Semi-Solid

Expansion:

No

Duty Series:

Standard Duty

Housing Material:

Stainless Steel

Maximum Operating Temperature:

200 °F

Insert Material:

400 Series Stainless Steel

Rolling Element:

Ball Bearing

Retainer Type:

Ball Riding Retainer

Measure Units:

Inch

Speed (Max):

4000

Insert No.:

VS-S223

Seal Type:

Single Lip Contact Seal with Flinger

Misalignment:

±1.5° Misalignment - Static Only

Lubrication:

NSF H1 Food Grade Grease

Radial Dynamic Load Capacity (lb):

5, 782

Locking Type:

Setscrew

Housing Construction:

One Piece

Internal Clearance:

Standard

Relubricatable:

Yes

Bore Shape:

Straight

Options:

Corrosion Resistant

Bearing Insert Coating:

Uncoated

Retainer Material:

Stainless Steel Riveted

Outer Ring Land Profile:

Standard

Misalignment Type:

Static Only

Platform:

CRES SS

Housing Color:

Silver

Replaceable Insert:

Yes

End Cap:

No

Radial Static Load Capacity (lb):

3, 493

UPC:

662460427492

Weight:

3.75 LB

Packaged Length:

4.25 Inches

Packaged Width:

2.25 Inches

Packaged Height:

4.25 Inches

HTC:

8483.20.8040

Country of Origin:

China
