- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
ST-38

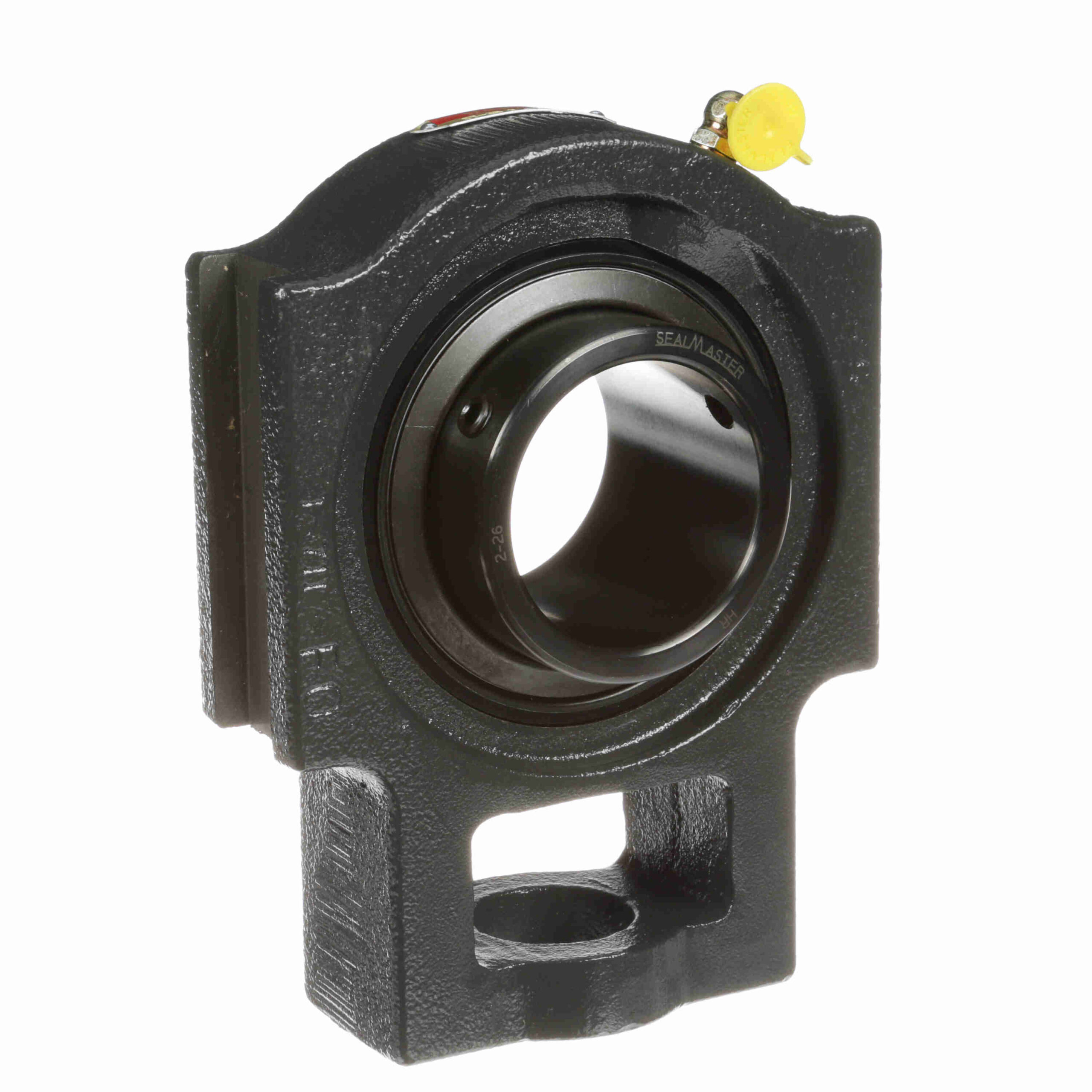

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ST-38
$582.56
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Misalignment: | ±2.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 11, 789 lb |
| Housing Construction: | One Piece | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Series: | ST | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | Housing Style: | Take-up Blocks |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Fixed vs. Expansion: | Fixed |
| Locking Type: | Setscrew | Maximum Speed (RPM): | 3000 rpm |
| Retainer Type: | Land Riding Retainer | Duty/Series: | Standard Duty |
| Housing Type: | Take-Up Block, Wide Slot | Housing Material: | Cast Iron |
| Insert Number: | 46054 | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| UPC: | 662461000000 | Weight: | 11.45 LB |
| Packaged Length: | 8.88 Inches | Packaged Width: | 5.94 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
