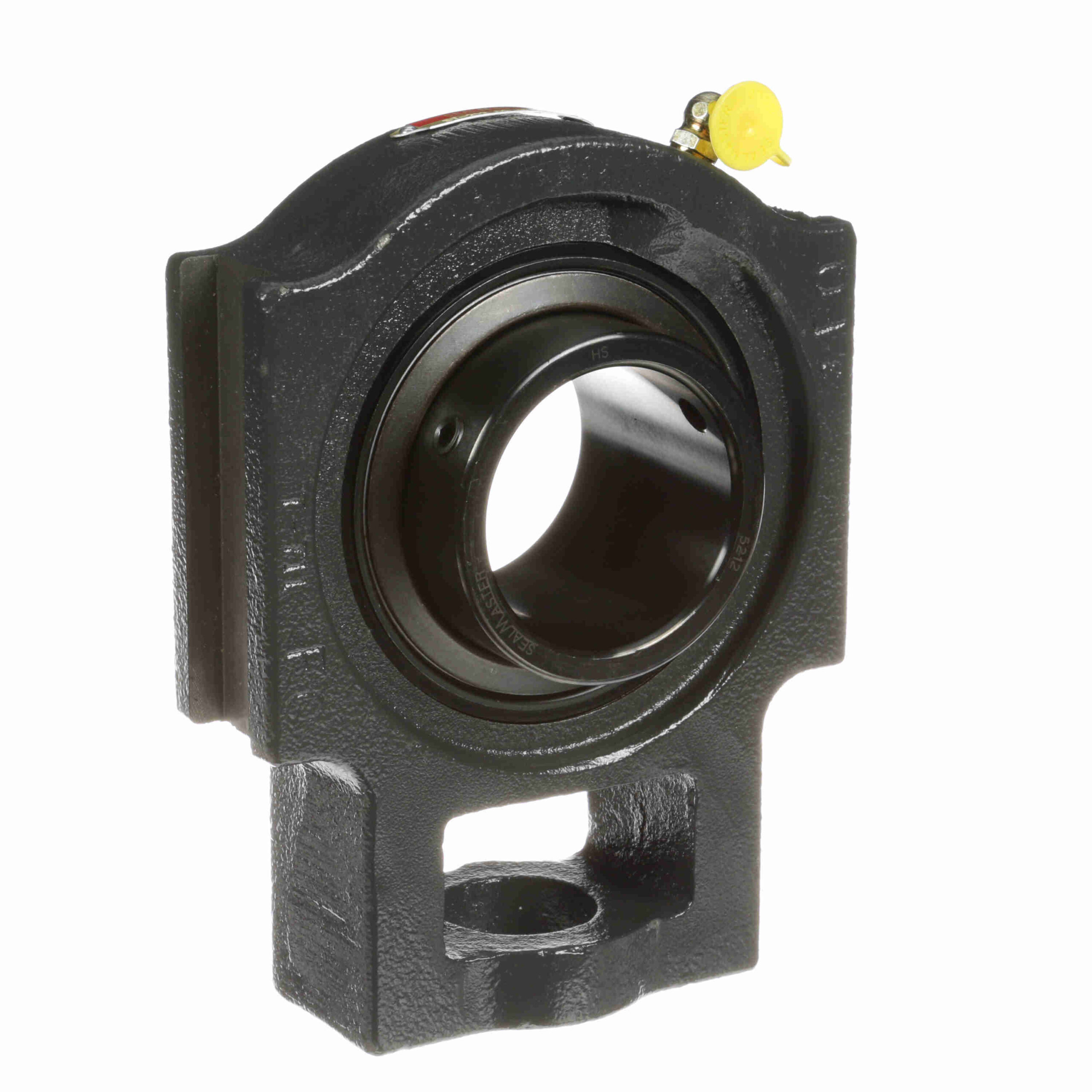

ST-212

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Duty Series:	Standard Duty	Insert Material:	52100 Bearing Steel, Black Oxided
Rolling Element:	Ball Bearing	Maximum Operating Temperature:	220 °F
Seal Type:	Felt Labyrinth Seal	Housing Type:	Take-Up Block, Wide Slot
Retainer Type:	Land Riding Retainer	Expansion:	No
Insert No.:	5212	Housing Material:	Cast Iron
Measure Units:	Metric	Speed (Max):	3000
Locking Type:	Setscrew	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	Internal Clearance:	Standard
Radial Dynamic Load Capacity (lb):	11, 789	Frame Type:	Center Pull Wide Slot
Housing Construction:	One Piece	Misalignment:	±2.0° Misalignment - Static Only
Inner-Race Heat-Treat Method:	Zone-Hardened	Bore Shape:	Straight
Platform:	Gold Line Ball Bearing	Replaceable Insert:	Yes
End Cap:	No	Misalignment Type:	Static Only
Housing Color:	Gray	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461052884	Weight:	11.60 LB
Packaged Length:	8.88 Inches	Packaged Width:	5.94 Inches
Packaged Height:	2.63 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
