- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
ST-206

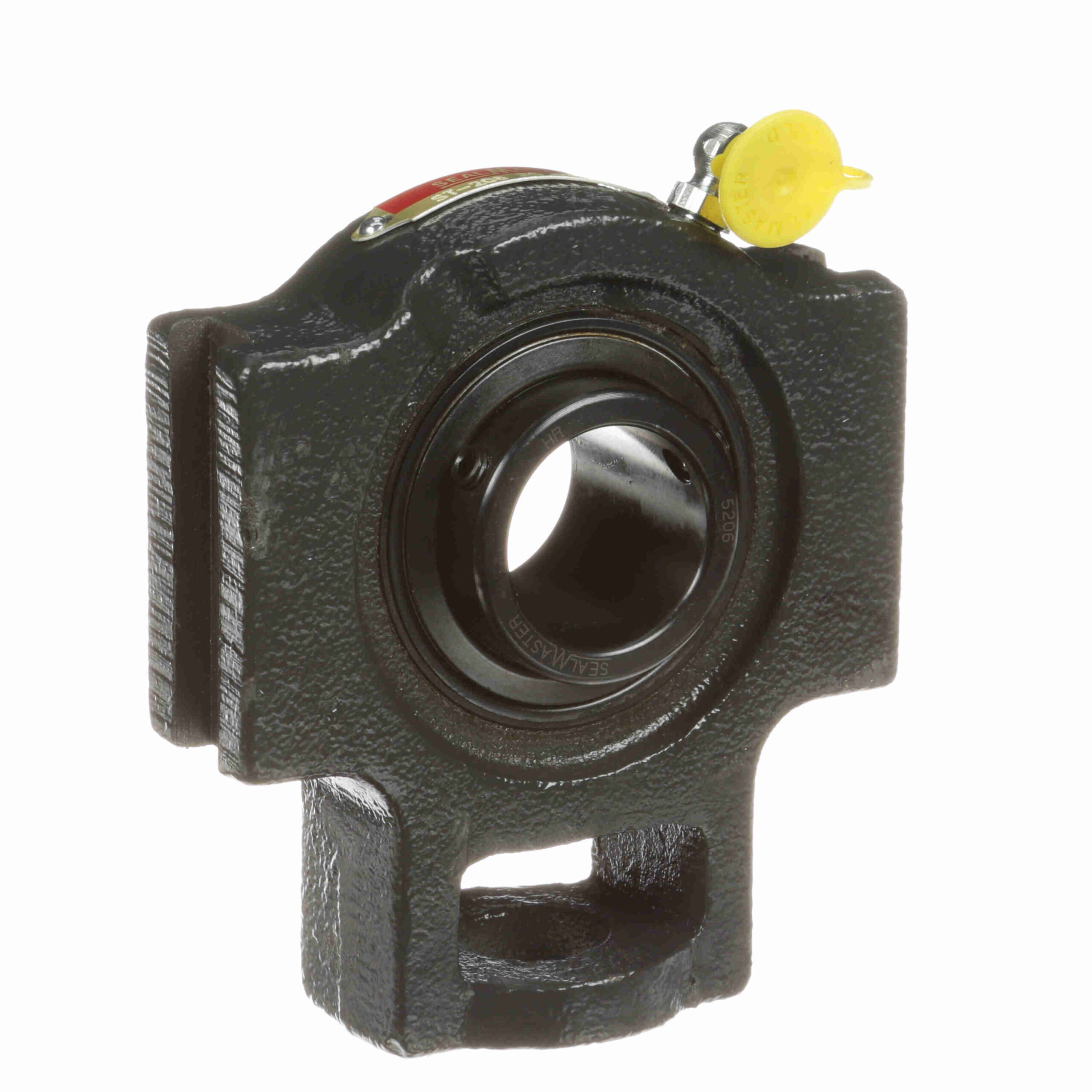

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ST-206
$245.65
Out of stock
Out of stock
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard Duty |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Type: | Take-Up Block, Wide Slot |
| Speed (Max): | 5450 | Insert No.: | 5206 |
| Seal Type: | Felt Labyrinth Seal | Expansion: | No |
| Housing Material: | Cast Iron | Rolling Element: | Ball Bearing |
| Measure Units: | Metric | Maximum Operating Temperature: | 220 °F |
| Frame Type: | Center Pull Wide Slot | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Locking Type: | Setscrew | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Platform: | Gold Line Ball Bearing | Series: | ST |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461052822 | Weight: | 3.25 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
