- Stamped steel housing with bearing insert
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
SSF3S-123

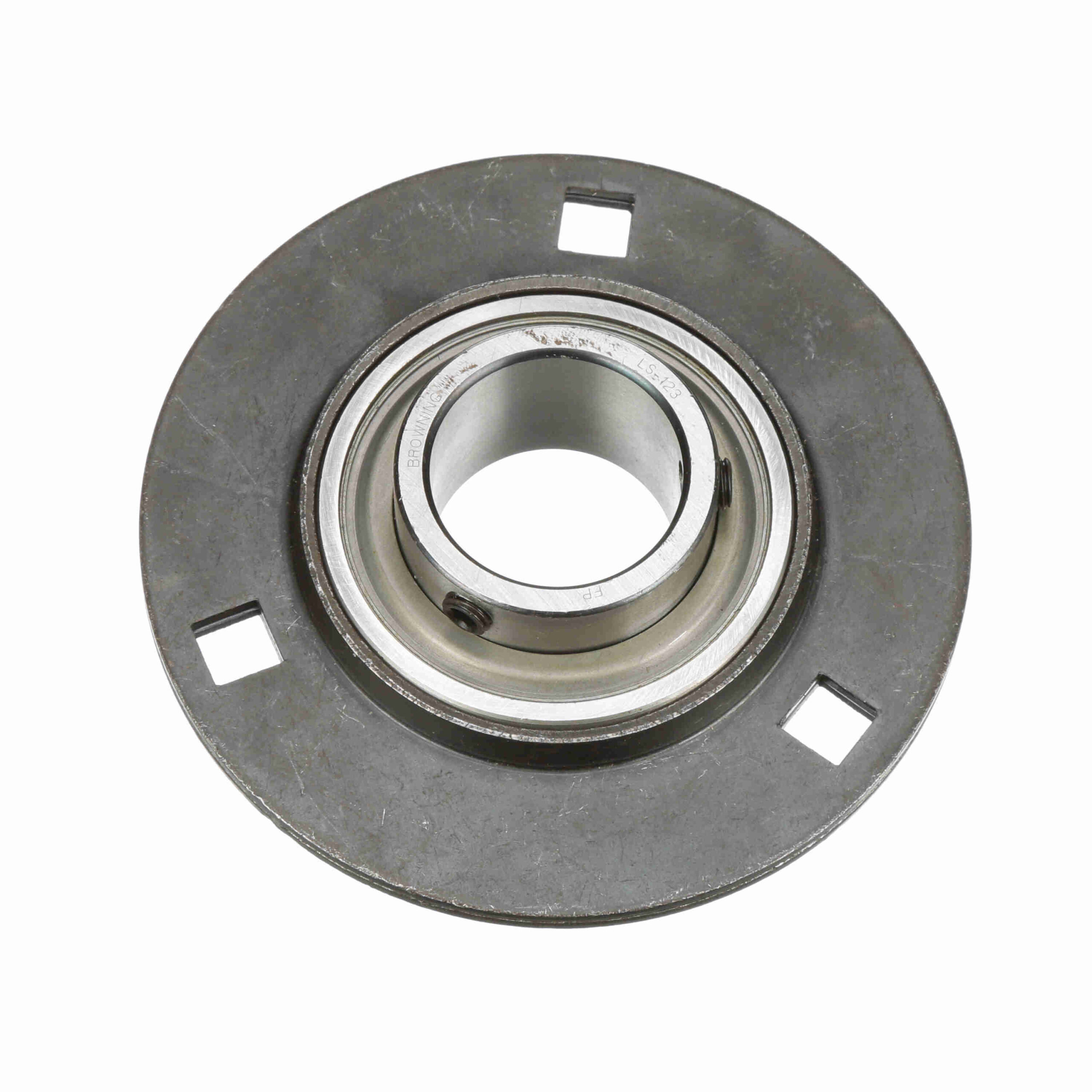

Browning Mounted Stamped Steel Three Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – SSF3S-123
Out of stock
| Bore Shape: | Straight | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Misalignment: | ±1.5° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 5, 782 lb |
| Internal Clearance: | Standard | Housing Construction: | Two Piece |
| Housing Color: | Silver | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Uncoated | Bolt Type: | Carriage Bolt |
| Radial Static Load Capacity (lb): | 3, 493 lb | Housing Type: | Flange, Three Bolt |
| Housing Style: | Flange Block | Housing Material: | Stamped Steel |
| Locking Type: | Setscrew | Retainer Type: | Ball Riding Retainer |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Fixed vs. Expansion: | Fixed |
| Maximum Speed (RPM): | 2500 rpm | Duty/Series: | Light Duty |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | No |
| Insert Number: | LS-123 | Maximum Operating Temperature (F): | 200 °F |
| Bolt Hole Shape: | Square Hole | UPC: | 662460337210 |
| Weight: | 2.11 LB | Packaged Length: | 5.3 Inches |
| Packaged Width: | 5.1 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
