- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2F3V26X3/4

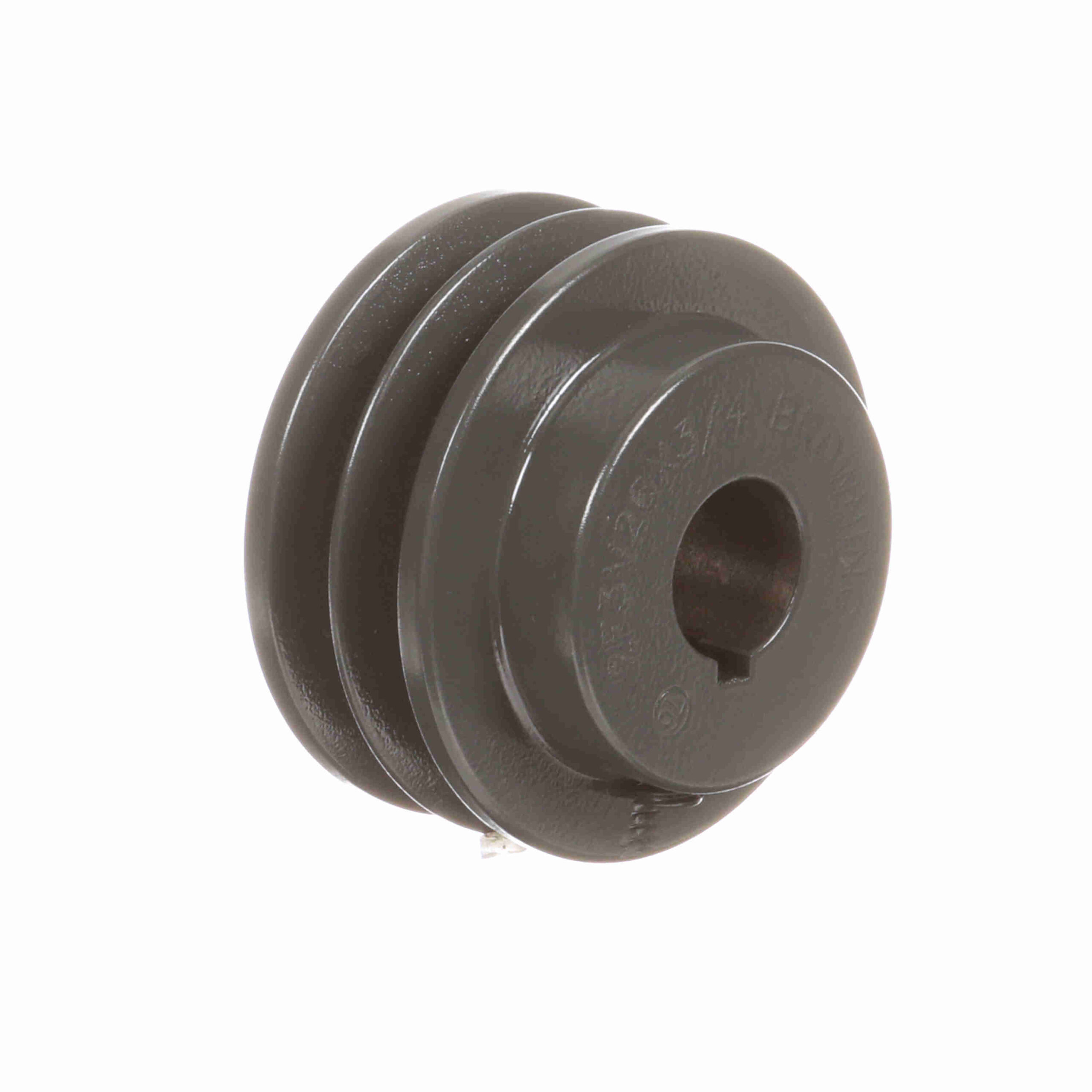

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2F3V26X3/4
$134.92
Out of stock
Out of stock
| Material: | Cast Iron | Number of Grooves: | 2 |
|---|---|---|---|
| Model Name: | 2F3_SheaveMaster | Outside Diameter (in): | 2.65 in |
| Pulley Material: | Cast Iron | Pitch Diameter (3V): | 2.6 |
| Belt Section: | 3V | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .1875 | Overall Width (in): | 1.5625 |
| Pulley Construction: | Plain | Face Width (in): | 1.0938 |
| UPC: | 662289278909 | Weight: | 1.44 LB |
| Packaged Length: | 3.06 Inches | Packaged Width: | 3.06 Inches |
| Packaged Height: | 1.63 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
