- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SPM-31 CXU

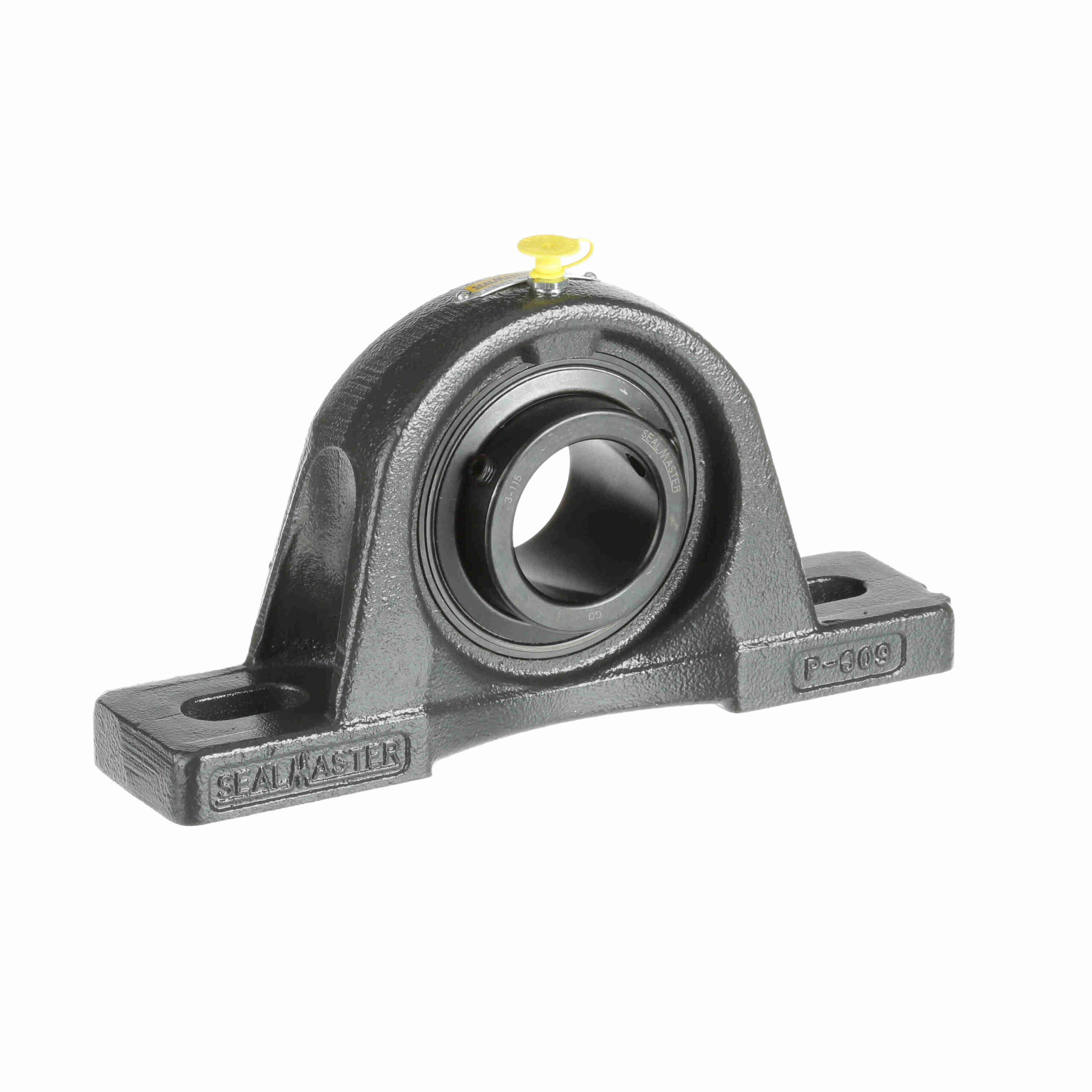

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – SPM-31 CXU
$434.40
Availability: 4 in stock
Availability: 4 in stock
| Speed (Max): | 3250 | Housing Material: | Cast Iron |
|---|---|---|---|
| Insert No.: | 3-115 CXU | Housing Base: | Solid |
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Pillow Block, Two Bolt | Seal Type: | Felt Labyrinth Seal |
| Expansion: | No | Duty Series: | Medium Duty |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Retainer Type: | Land Riding Retainer |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±2.0° Misalignment - Static Only |
| Platform: | Air Handling | Options: | Air Handling Housing Fit, Noise Tested |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | End Cap: | No |
| Radial Static Load Capacity (lb): | 6, 601 | UPC: | 662461008140 |
| Weight: | 12.24 LB | Packaged Length: | 10.38 Inches |
| Packaged Width: | 6.5 Inches | Packaged Height: | 3 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
