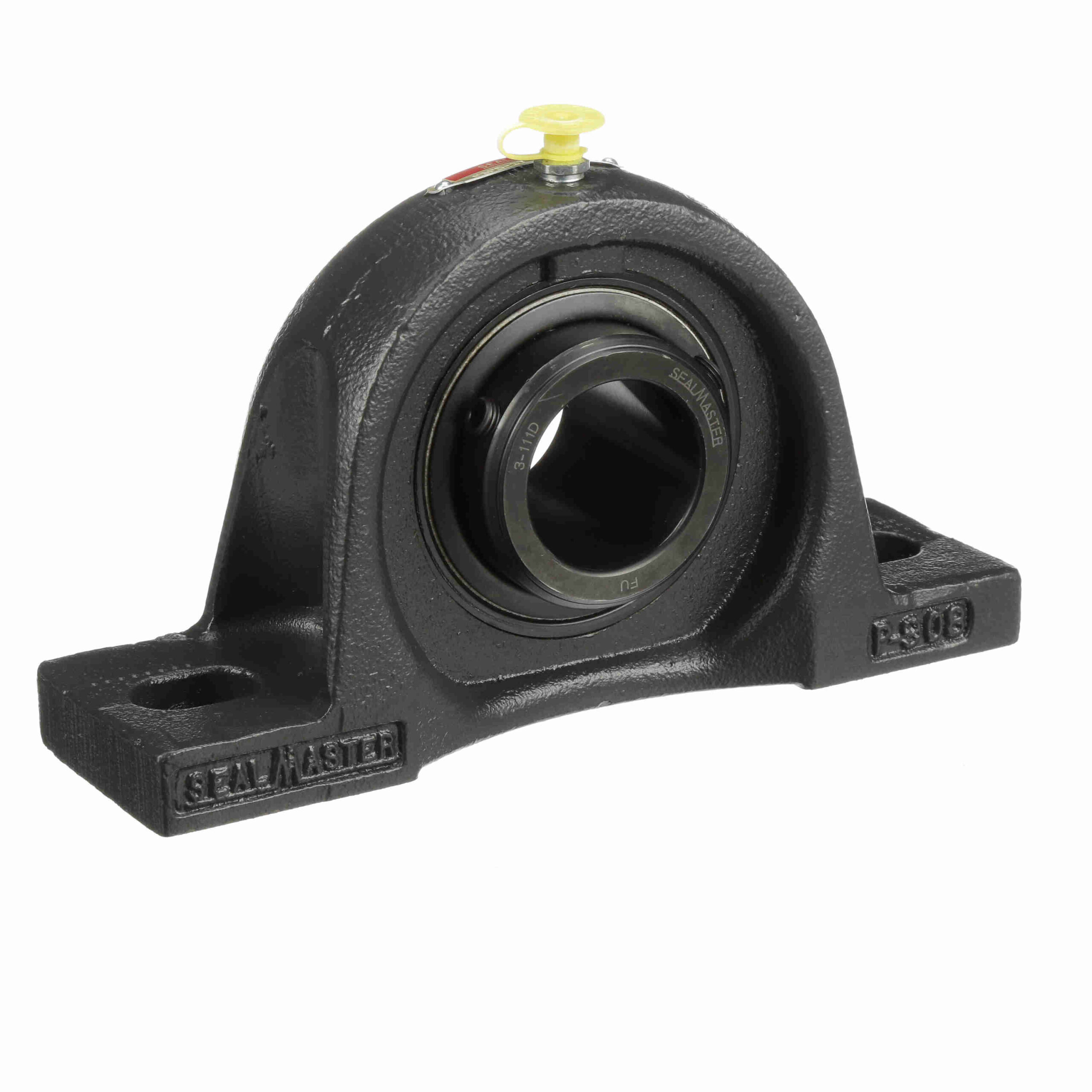

SPD-39

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Expansion:	No	Housing Base:	Solid
Seal Type:	Felt Labyrinth Seal	Housing Material:	Cast Iron
Speed (Max):	4100	Housing Type:	Pillow Block, Two Bolt
Insert No.:	2-27D	Rolling Element:	Ball Bearing
Internal Clearance:	Standard	Measure Units:	Inch
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel, Black Oxided
Duty Series:	Standard Duty	Retainer Type:	Land Riding Retainer
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	11, 789
Misalignment:	±2.0° Misalignment - Static Only	Housing Construction:	One Piece
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Double Setscrew
Relubricatable:	Yes	Inner-Race Heat-Treat Method:	Zone-Hardened
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
Platform:	Air Handling	Replaceable Insert:	Yes
End Cap:	No	Housing Color:	Gray
Misalignment Type:	Static Only	Radial Static Load Capacity (lb):	8, 150
UPC:	662461015780	Weight:	17.15 LB
Packaged Length:	11.44 Inches	Packaged Width:	7.5 Inches
Packaged Height:	3.25 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
