- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SP-55

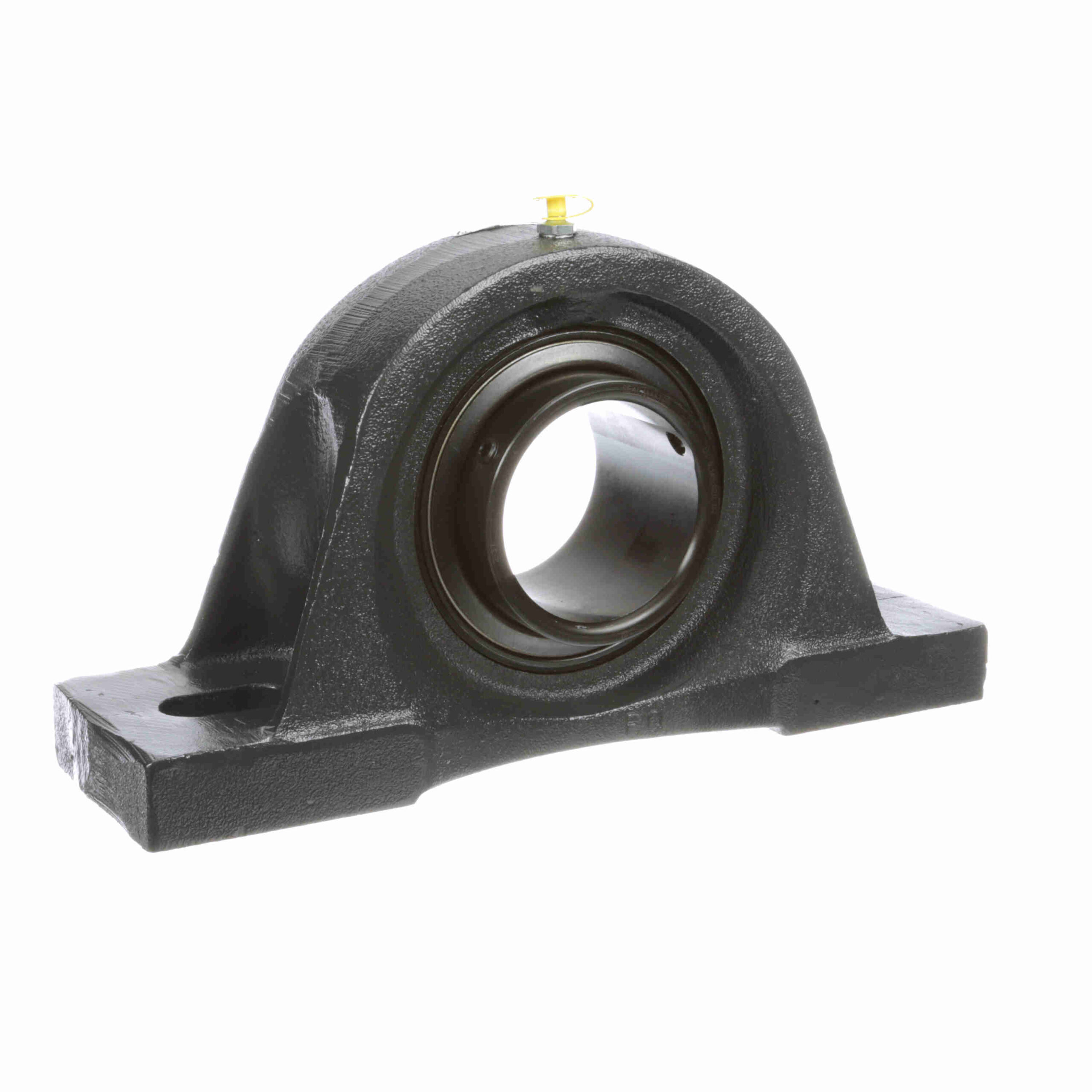

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SP-55
$1,580.87
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Housing Type: | Pillow Block, Two Bolt | Internal Clearance: | Standard |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Duty Series: | Standard Duty | Measure Units: | Inch |
| Speed (Max): | 2125 | Housing Material: | Cast Iron |
| Maximum Operating Temperature: | 220 °F | Expansion: | No |
| Insert No.: | 2-37 | Housing Base: | Solid |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Relubricatable: | Yes |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Setscrew | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Platform: | Air Handling | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| UPC: | 662461005170 | Weight: | 43.76 LB |
| Packaged Length: | 17.25 Inches | Packaged Width: | 9.88 Inches |
| Packaged Height: | 4.88 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
