- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SK 25 MM

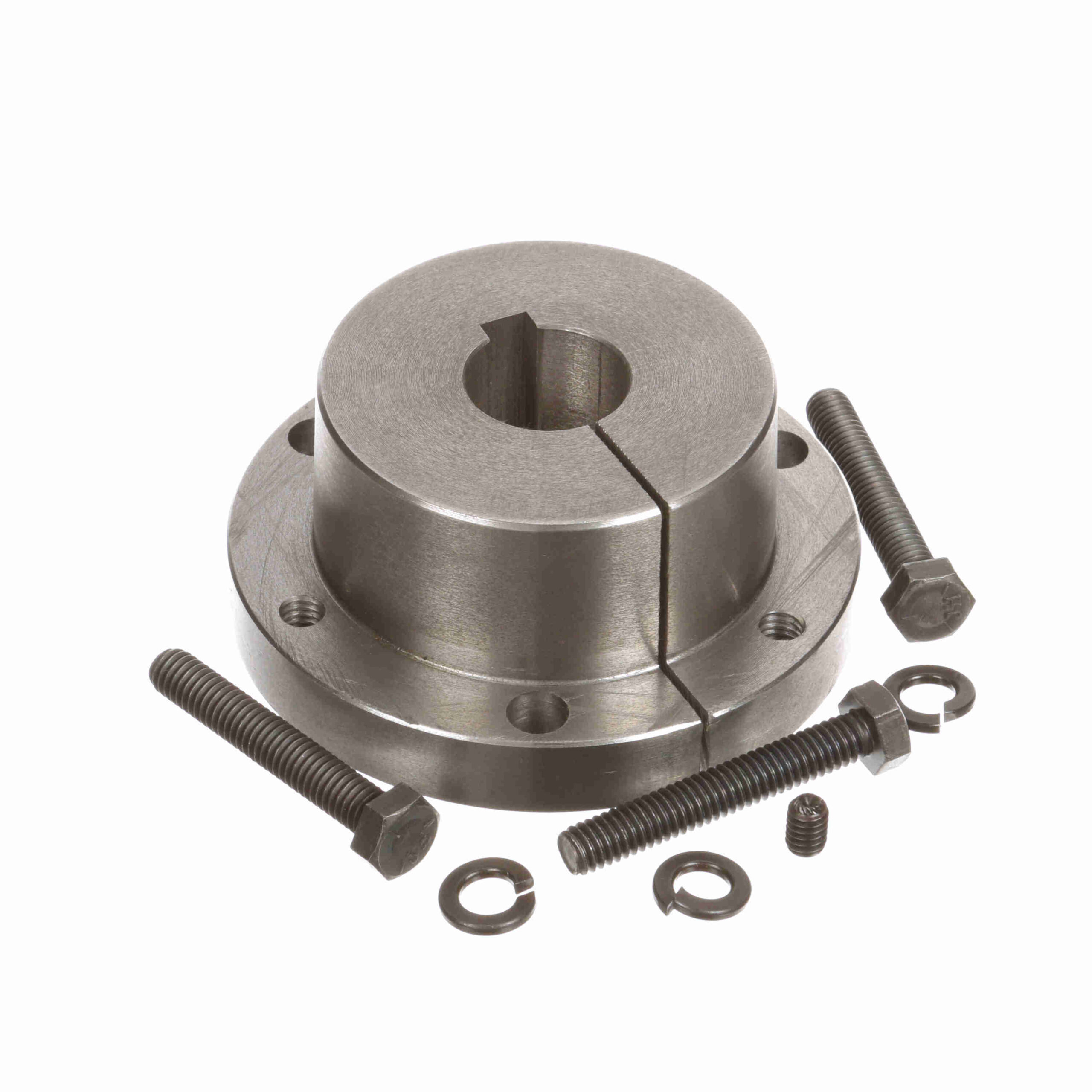

Browning Q-D Bushing – Metric Bore Type – SK 25 MM
$178.48
Out of stock
Out of stock
| Compatible Bore Size [Max] (mm): | 25 mm | Total Length (mm): | 44.45 mm |
|---|---|---|---|
| Model Name: | QD-SK_Bushing_Master | Total Length (in): | 1.75 in |
| Length Through Bore (mm): | 44.45 mm | Cap Screws (Size): | 5/16-18 x 2 |
| Outside Diameter (mm): | 98.425 mm | Bushing Type: | SK |
| Cap Screws (Bolt Circle): | 3.3125 | Wrench Torque (ft.-lbs.): | 15 |
| Cap Screws (No.): | 3 | Product Type: | Q-D Bushing |
| Mounting Type: | Conventional | Keyway: | 8mm x 3.5mm |
| Bore Type: | Metric | Outside Diameter (in): | 3.875 in |
| Torque Capacity (in-lb): | 7, 000 | Bore Size (mm): | 25 mm |
| Barrel Diameter: | 2.8125 in | Flange Thickness: | 0.5625 in |
| Material: | Ductile Iron - 65-45-65 | Barrel Length: | 1.1875 in |
| UPC: | 662289616381 | Weight: | 3.34 LB |
| Packaged Length: | 4.3 Inches | Packaged Width: | 4.3 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
