- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SK 2

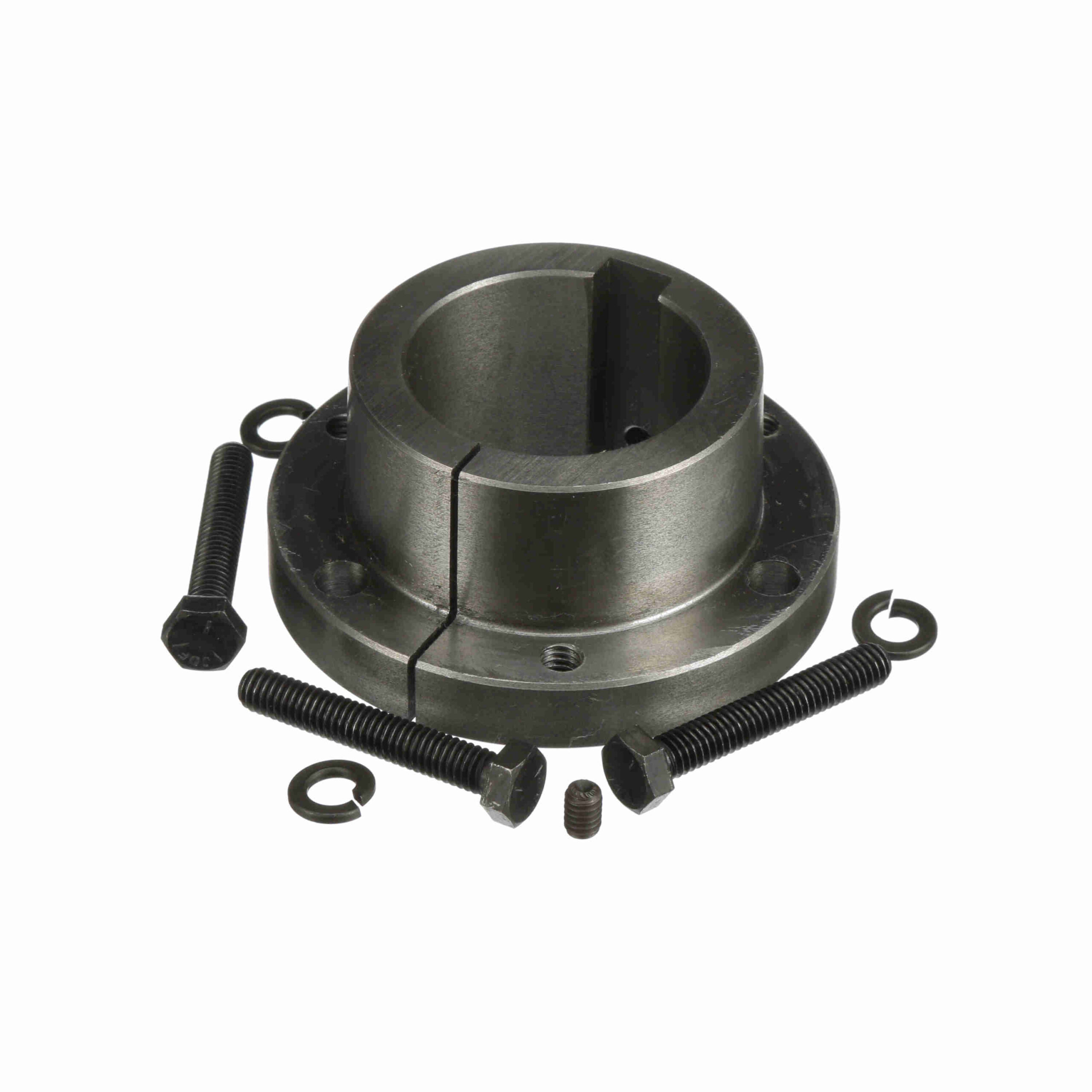

Browning Q-D Bushing – Inch Bore Type – SK 2
$86.43
Out of stock
Out of stock
| Model Name: | QD-SK_Bushing_Master | Bushing Type: | SK |
|---|---|---|---|
| Bore Type: | Inch | Product Type: | Q-D Bushing |
| Wrench Torque (ft.-lbs.): | 15 | Compatible Bore Size [Max] (in): | 2 in |
| Cap Screws (No.): | 3 | Cap Screws (Bolt Circle): | 3.3125 |
| Mounting Type: | Conventional | Length Through Bore (in): | 1.75 in |
| Total Length (in): | 1.75 in | Cap Screws (Size): | 5/16-18 x 2 |
| Keyway: | 1/2 x 1/4 | Outside Diameter (in): | 3.875 in |
| Torque Capacity (in-lb): | 7, 000 | Bore Size (in): | 2 in |
| Barrel Diameter: | 2.8125 in | Barrel Length: | 1.1875 in |
| Material: | Ductile Iron - 65-45-53 | Flange Thickness: | 0.5625 in |
| UPC: | 662289385829 | Weight: | 2.27 LB |
| Packaged Length: | 4.3 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 2.5 Inches |
