- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning shear pin hubs are designed to prevent damage due to an overload or jam by shearing the necked pin at a predetermined load
- Browning shear pin hubs consist of 3 parts – steel sprockets, hub assembly, malleable bushing.

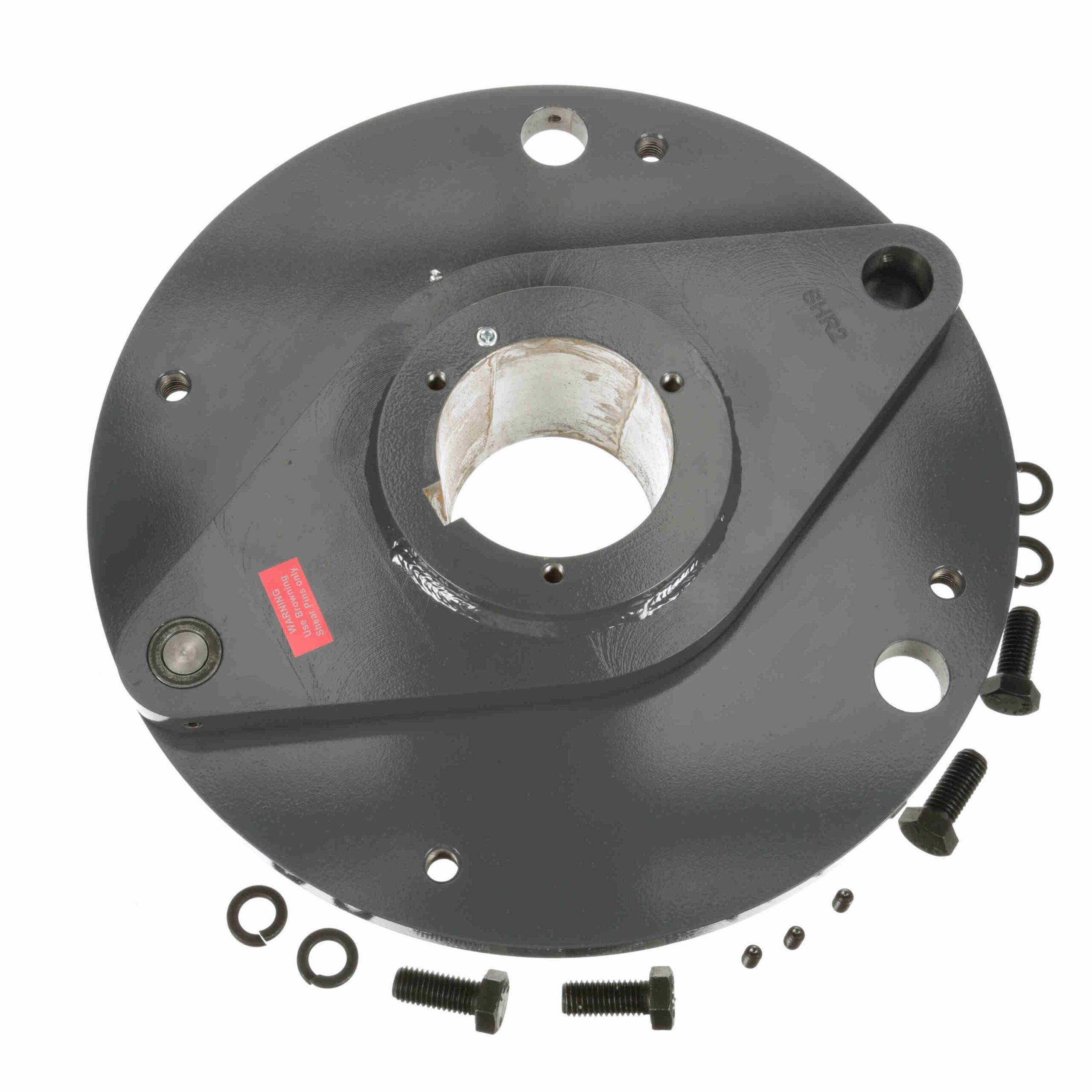

SHR2 HUB
Browning Shear Pin Hub for R2 Split Taper Bushing – SHR2 HUB
$5,832.30
Out of stock
Out of stock
| Reset Type: | Manual | Minimum Trip Torque: | 26, 080 |
|---|---|---|---|
| Max RPM: | 500 | Mounting Bolt Circle Diameter: | 14 |
| Flange Diameter (in): | 16.25 in | Capscrew Number: | 4 |
| Hub Type: | 2 | Bore Bushings: | R2 |
| Length Through Bore (in): | 4 in | Unit Accuracy: | 0.2 |
| Style: | Bushed Hub | Overall Diameter (less sprocket): | 16.25 |
| Bore Range: | 1 3/8 - 3 5/8 | Backlash: | Zero |
| Type: | Shear Pin Hub | Sensor Plate: | No |
| Overall Length Through Bore: | 5.15625 | Sprocket Pilot Diameter: | 7.5 |
| Torque Capacity - Maximum: | 155, 900 | Capscrew Size: | 0.625 |
| Product Type: | Shear Pin Hubs | Compatible Bore Size [Max] (in): | 3.625 in |
| Bore (Min) (in): | 1.375 in | Compatible Bore Size [Min] (in): | 1.375 in |
| Bore (Max) (in): | 3.625 in | Torque Capacity [Min] (in-lb): | 26, 080 |
| Torque Capacity [Min] (lb-ft): | 2, 173.33333333333 | Torque Capacity [Max] (lb-ft): | 12, 991.6666666667 |
| Torque Capacity [Max] (in-lb): | 155, 900 | UPC: | 662289211579 |
| Weight: | 84.00 LB | HTC: | 8483.60.8000 |
| Country of Origin: | United States of America |
