- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning shear pin hubs are designed to prevent damage due to an overload or jam by shearing the necked pin at a predetermined load
- Browning shear pin hubs consist of 3 parts – steel sprockets, hub assembly, malleable bushing.
SHR1 HUB

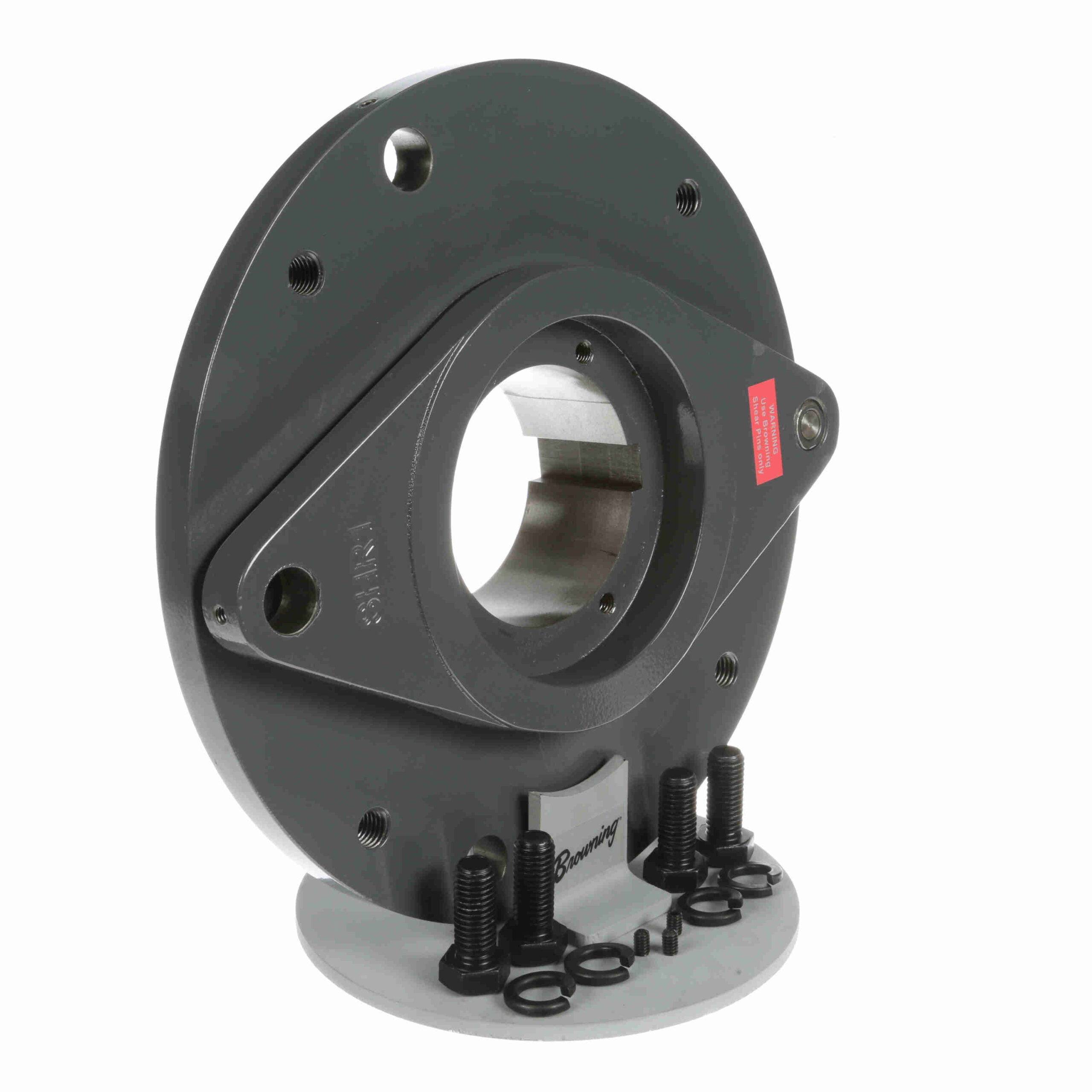

Browning Shear Pin Hub for R1 Split Taper Bushing – SHR1 HUB
$2,672.79
Out of stock
Out of stock
| Hub Type: | 1 | Mounting Bolt Circle Diameter: | 11.25 |
|---|---|---|---|
| Style: | Bushed Hub | Unit Accuracy: | 0.2 |
| Sprocket Pilot Diameter: | 7.5 | Length Through Bore (in): | 3.0625 in |
| Minimum Trip Torque: | 9, 310 | Torque Capacity - Maximum: | 50, 720 |
| Capscrew Number: | 4 | Bore Range: | 1 1/8 - 3 3/4 |
| Reset Type: | Manual | Overall Length Through Bore: | 3.34375 |
| Flange Diameter (in): | 13 in | Max RPM: | 500 |
| Backlash: | Zero | Bore Bushings: | R1 |
| Sensor Plate: | No | Type: | Shear Pin Hub |
| Capscrew Size: | 0.625 | Overall Diameter (less sprocket): | 13 |
| Bore (Min) (in): | 1.125 in | Product Type: | Shear Pin Hubs |
| Compatible Bore Size [Min] (in): | 1.125 in | Bore (Max) (in): | 3.75 in |
| Compatible Bore Size [Max] (in): | 3.75 in | Torque Capacity [Min] (lb-ft): | 775.833333333333 |
| Torque Capacity [Max] (in-lb): | 50, 720 | Torque Capacity [Max] (lb-ft): | 4, 226.66666666667 |
| Torque Capacity [Min] (in-lb): | 9, 310 | UPC: | 662289301546 |
| Weight: | 45.80 LB | HTC: | 8483.60.8000 |
| Country of Origin: | United States of America |
