- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SFC-47

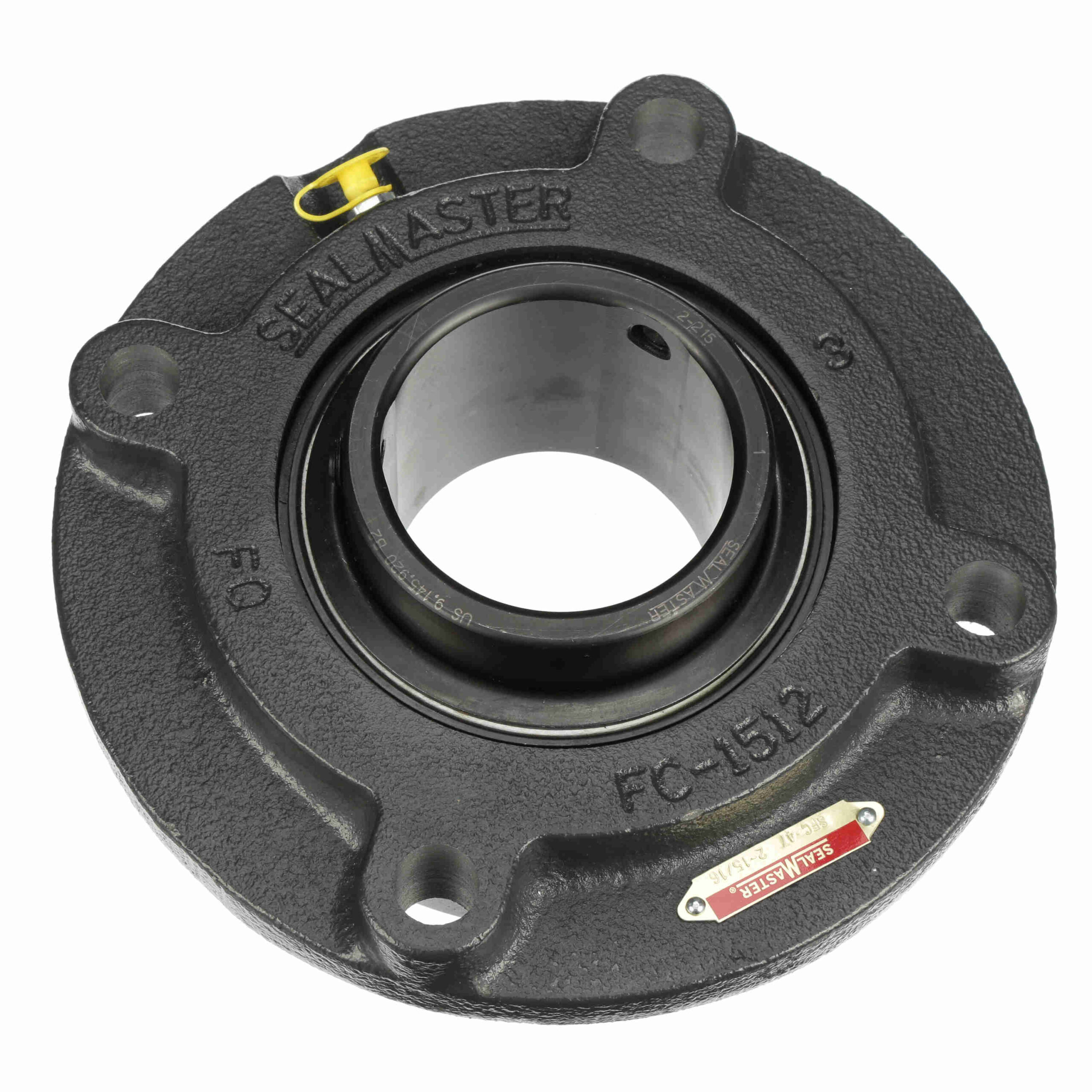

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SFC-47
$598.08
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Bore Shape: | Straight |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Rolling Element: | Ball Bearing | Insert No.: | 2-215 SFB |
| Housing Base: | Solid | Housing Type: | Flange; Piloted |
| Duty Series: | Standard Duty | Measure Units: | Inch |
| Expansion: | No | Retainer Type: | Land Riding Retainer |
| Maximum Operating Temperature: | 220 °F | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Speed (Max): | 2450 |
| Radial Dynamic Load Capacity (lb): | 14, 839 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Setscrew | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 11, 224 | UPC: | 662461004166 |
| Weight: | 17.31 LB | Packaged Length: | 8.88 Inches |
| Packaged Width: | 9.06 Inches | Packaged Height: | 3.44 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
