- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
ENP-39

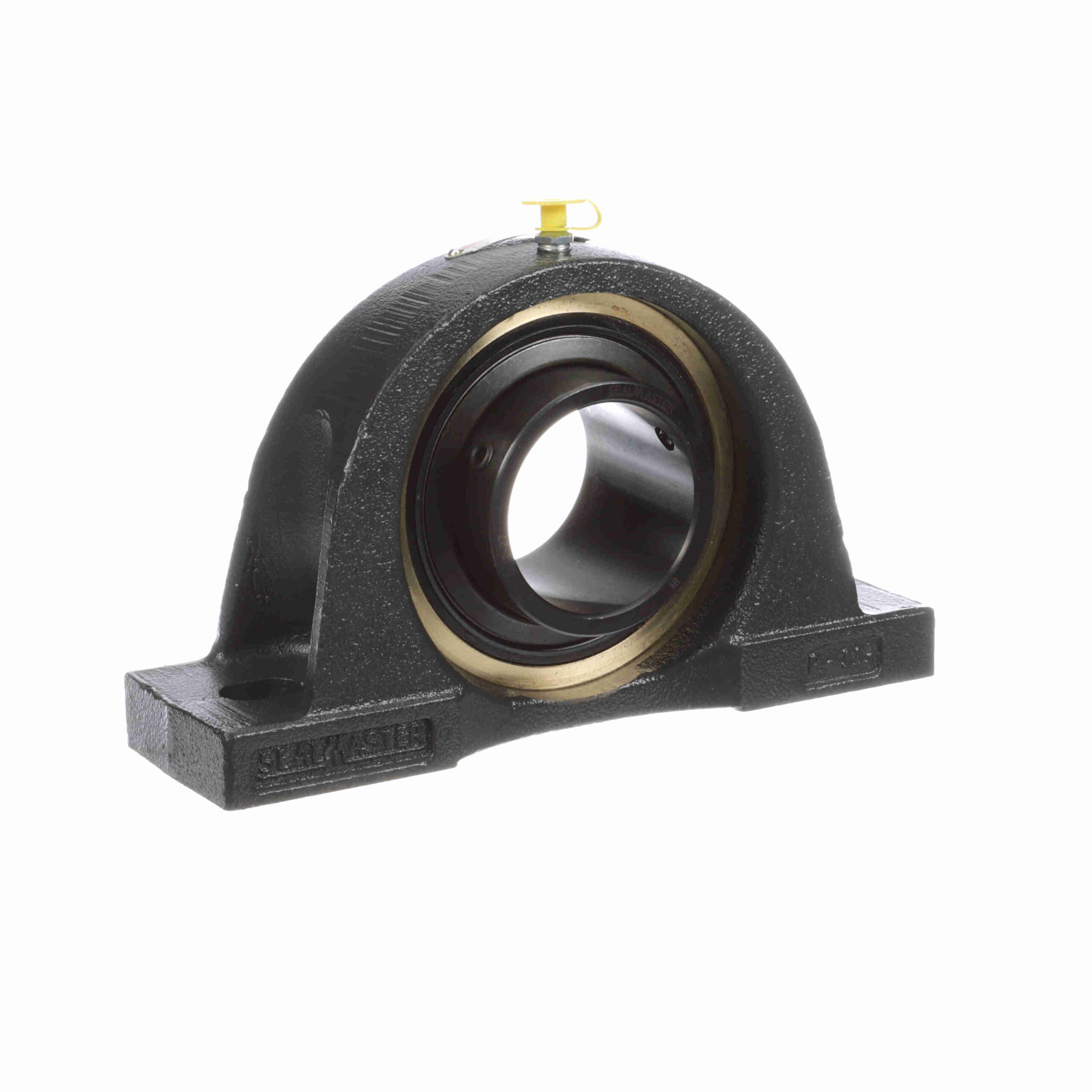

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ENP-39
$840.63
Out of stock
Out of stock
| Housing Base: | Solid | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Color: | Gray |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Maximum Speed (RPM): | 3000 rpm | Housing Type: | Pillow Block, Two Bolt |
| Housing Style: | Pillow Block | Locking Type: | Setscrew |
| Retainer Type: | Land Riding Retainer | Duty/Series: | Standard Duty |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Fixed vs. Expansion: | Expansion | Insert Number: | AR-2-27 |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | UPC: | 662461000000 |
| Weight: | 13.70 LB | Packaged Length: | 10.38 Inches |
| Packaged Width: | 6.5 Inches | Packaged Height: | 3 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
