- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SFC-20TC

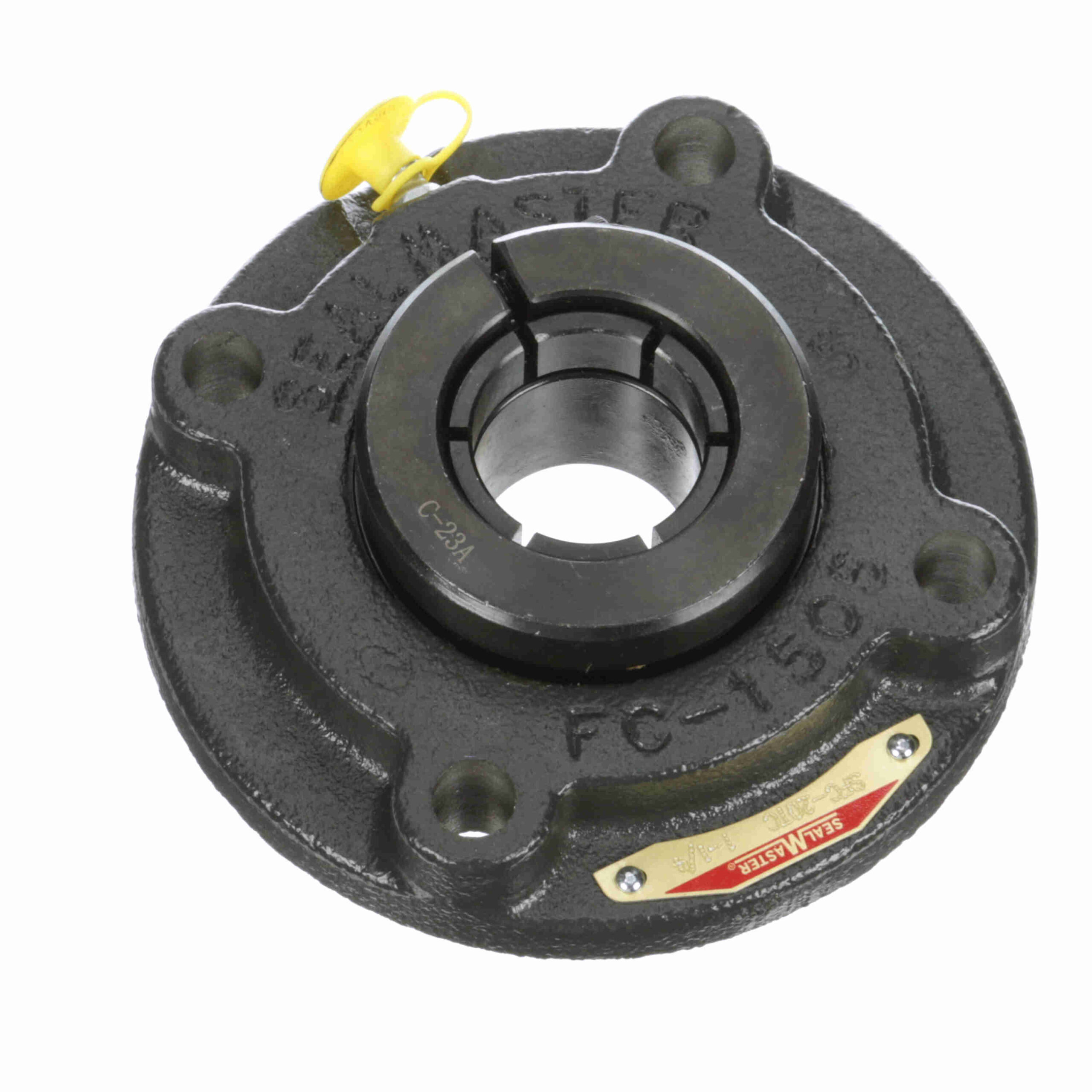

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFC-20TC
$210.46
Out of stock
Out of stock
| Measure Units: | Inch | Expansion: | No |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Insert No.: | 2-14TC |
| Housing Material: | Cast Iron | Duty Series: | Standard Duty |
| Housing Type: | Flange, Piloted | Maximum Operating Temperature: | 220 °F |
| Retainer Type: | Land Riding Retainer | Housing Base: | Solid |
| Seal Type: | Single Lip Contact Seal | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Static Only |
| Speed (Max): | 4650 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Concentric | Internal Clearance: | Standard |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | UPC: | 662461033227 |
| Weight: | 3.90 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
