- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Gard overload devices are the most accurate Torque Overload Device offered. Sealed for life, moisture resistant, lithium based grease for outdoor and washdown applications
- Durable, bright orange enamel finish for high visibility, closed grained aluminum housing,alloy steel forged cam, heavy duty needle bearings
TGC6

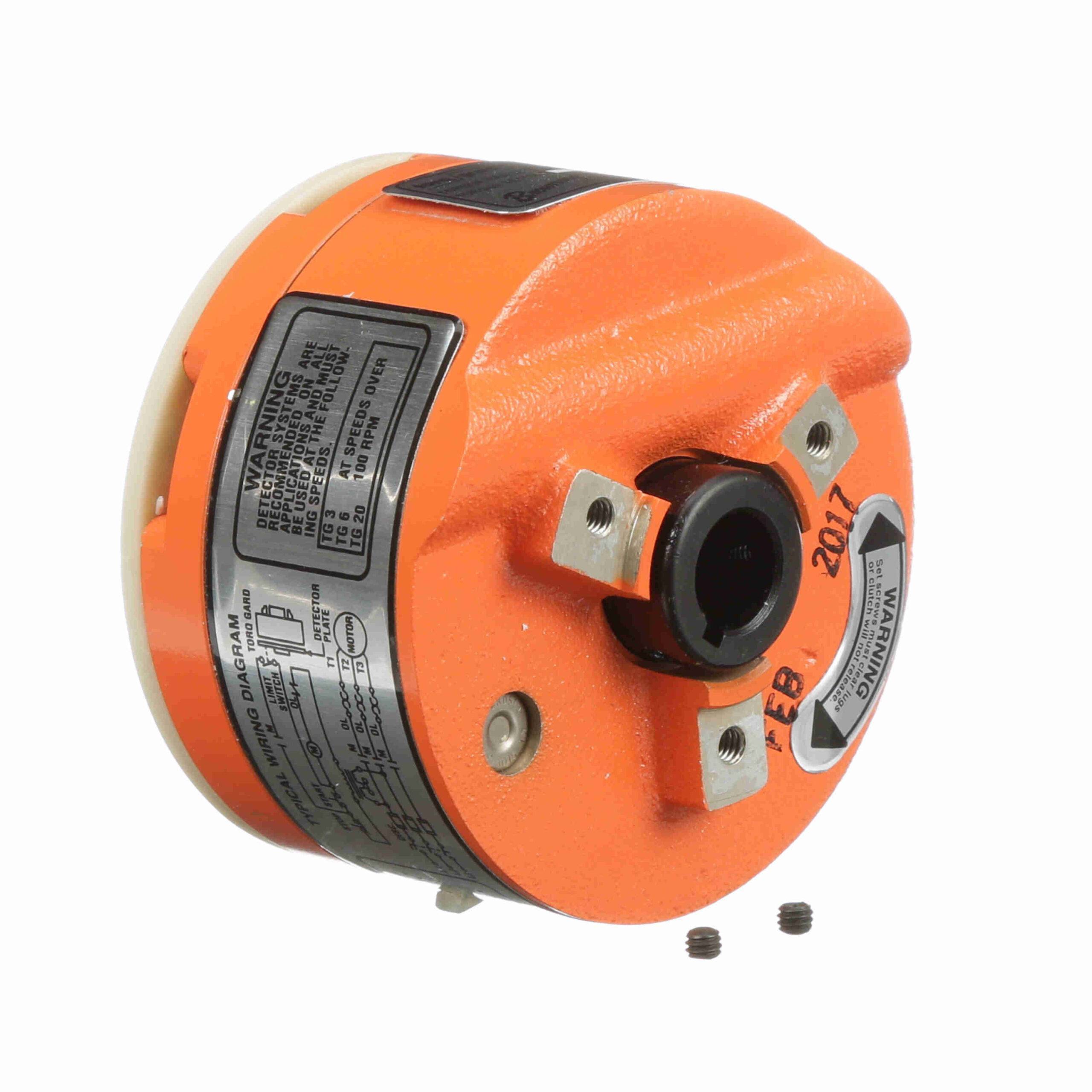

Browning Mini Torq/Gard Overload Clutch – TGC6
$2,096.88
Out of stock
Out of stock
| Max RPM: | 1, 800 | Torque Capacity [Min] (in-lb): | 23 |
|---|---|---|---|
| Type: | Torq/Gard Overload Clutch | Torque Capacity [Max] (in-lb): | 56 |
| Max. HP: | 2.5 | Sensor Plate: | Yes |
| Backlash: | Small | Reset Type: | Automatic |
| Clutch size code: | 6 | Unit Accuracy: | 0.05 |
| Bore (Min) (in): | 0.375 in | Product Type: | Torque Overload Devices |
| Torque Capacity [Max] (lb-ft): | 4.66666666666667 | Torque Capacity [Min] (lb-ft): | 1.91666666666667 |
| Bore (Max) (in): | 0.5 in | Recovery Style: | Jog |
| UPC: | 662289486427 | Weight: | 1.59 LB |
| Packaged Length: | 5.70 Inches | Packaged Width: | 5.70 Inches |
| Packaged Height: | 4.10 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | United States of America |
