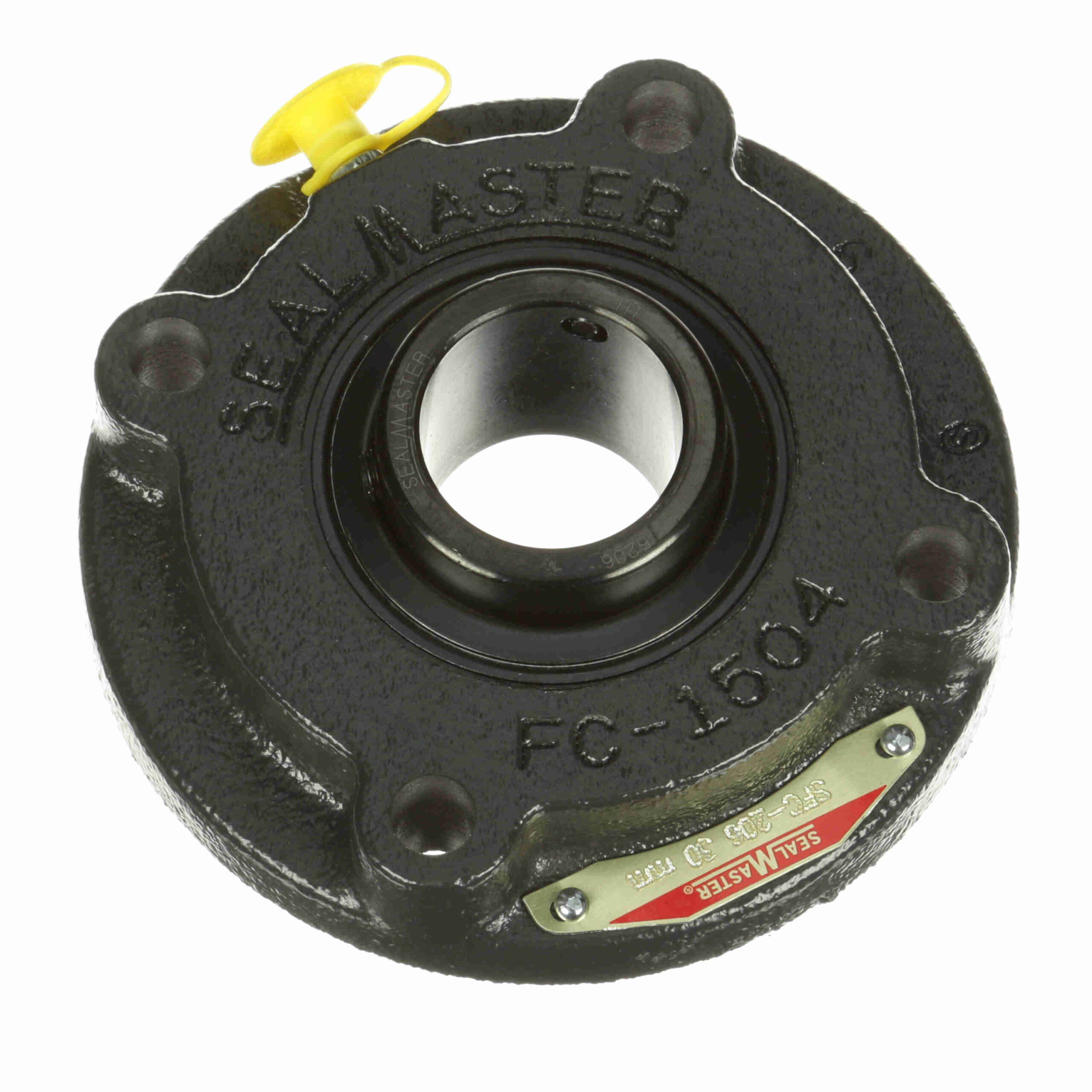

SFC-206

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Expansion:	No	Retainer Type:	Land Riding Retainer
Measure Units:	Metric	Insert Material:	52100 Bearing Steel, Black Oxided
Bore Shape:	Straight	Insert No.:	5206 SFB ATO
Seal Type:	Felt Labyrinth Seal	Housing Base:	Solid
Rolling Element:	Ball Bearing	Housing Type:	Flange, Piloted
Housing Material:	Cast Iron	Duty Series:	Standard Duty
Maximum Operating Temperature:	220 °F	Pilot Configuration:	No Pilot
Relubricatable:	Yes	Speed (Max):	5450
Locking Type:	Setscrew	Inner-Race Heat-Treat Method:	Zone-Hardened
Internal Clearance:	Standard	Lubrication:	Lithium Complex NLGI 2 Grease
Housing Construction:	One Piece	Misalignment:	±2.0° Misalignment - Static Only
End Cap:	No	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	Platform:	Gold Line Ball Bearing
Bearing Insert Coating:	Black Oxide Coated	Replaceable Insert:	Yes
Housing Color:	Gray	UPC:	662461052365
Weight:	3.00 LB	Packaged Length:	4.5 Inches
Packaged Width:	1.69 Inches	Packaged Height:	4.56 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
