- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPE-124

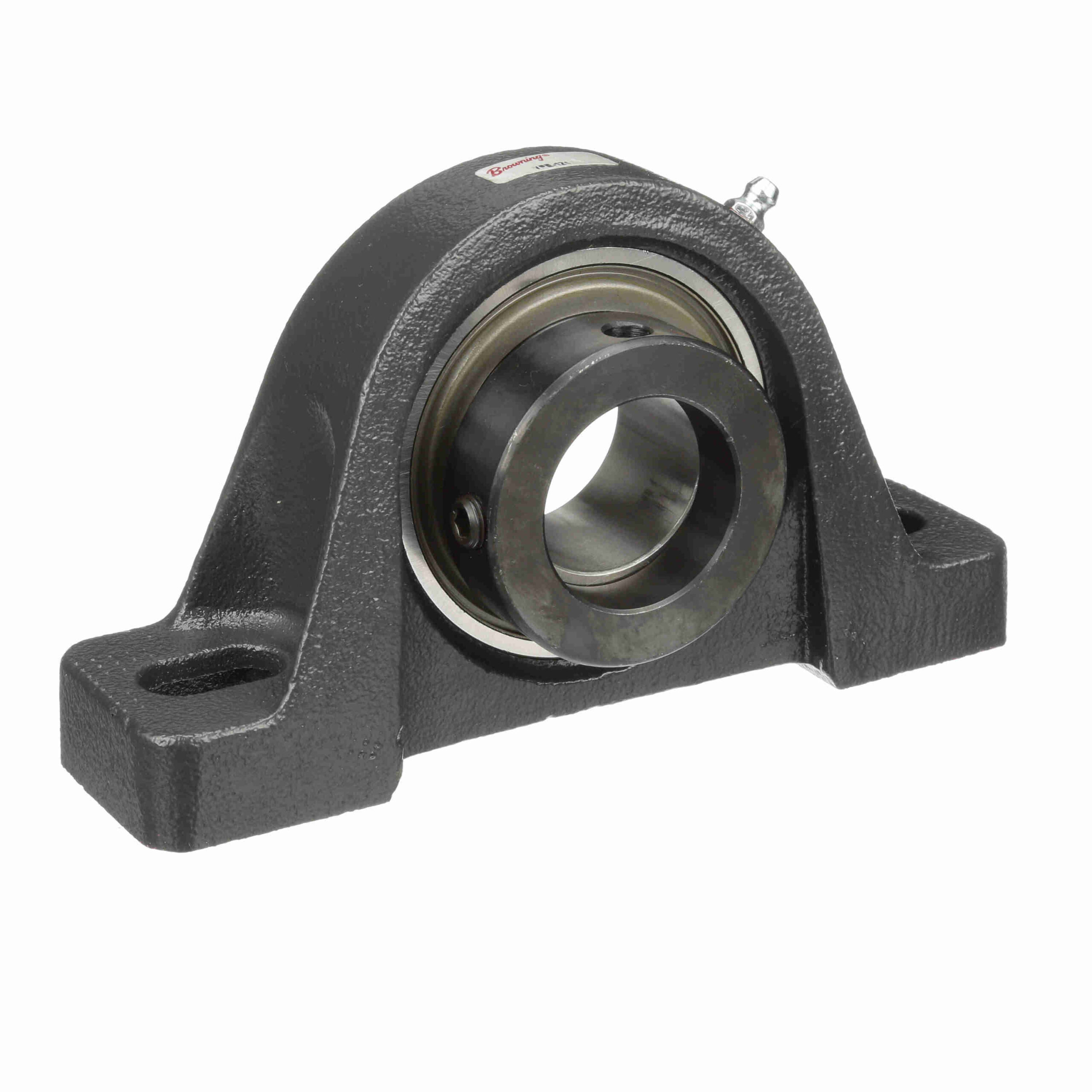

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPE-124
$109.98
Out of stock
Out of stock
| Internal Clearance: | Standard | Insert Material: | 52100 Bearing Steel |
|---|---|---|---|
| Housing Type: | Pillow Block; Two Bolt | Maximum Operating Temperature: | 200 °F |
| Seal Type: | Single Lip Contact Seal | Speed (Max): | 2500 |
| Expansion: | No | Housing Material: | Cast Iron |
| Retainer Type: | Ball Riding Retainer | Measure Units: | Inch |
| Housing Base: | Semi-Solid | Insert No.: | VE-124 |
| Rolling Element: | Ball Bearing | Duty Series: | Intermediate Duty |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Locking Type: | Eccentric |
| Misalignment: | ±1.5° Misalignment - Static Only | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Uncoated | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Housing Color: | Gray | End Cap: | No |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662289314843 |
| Weight: | 4.80 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
