- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 7/8

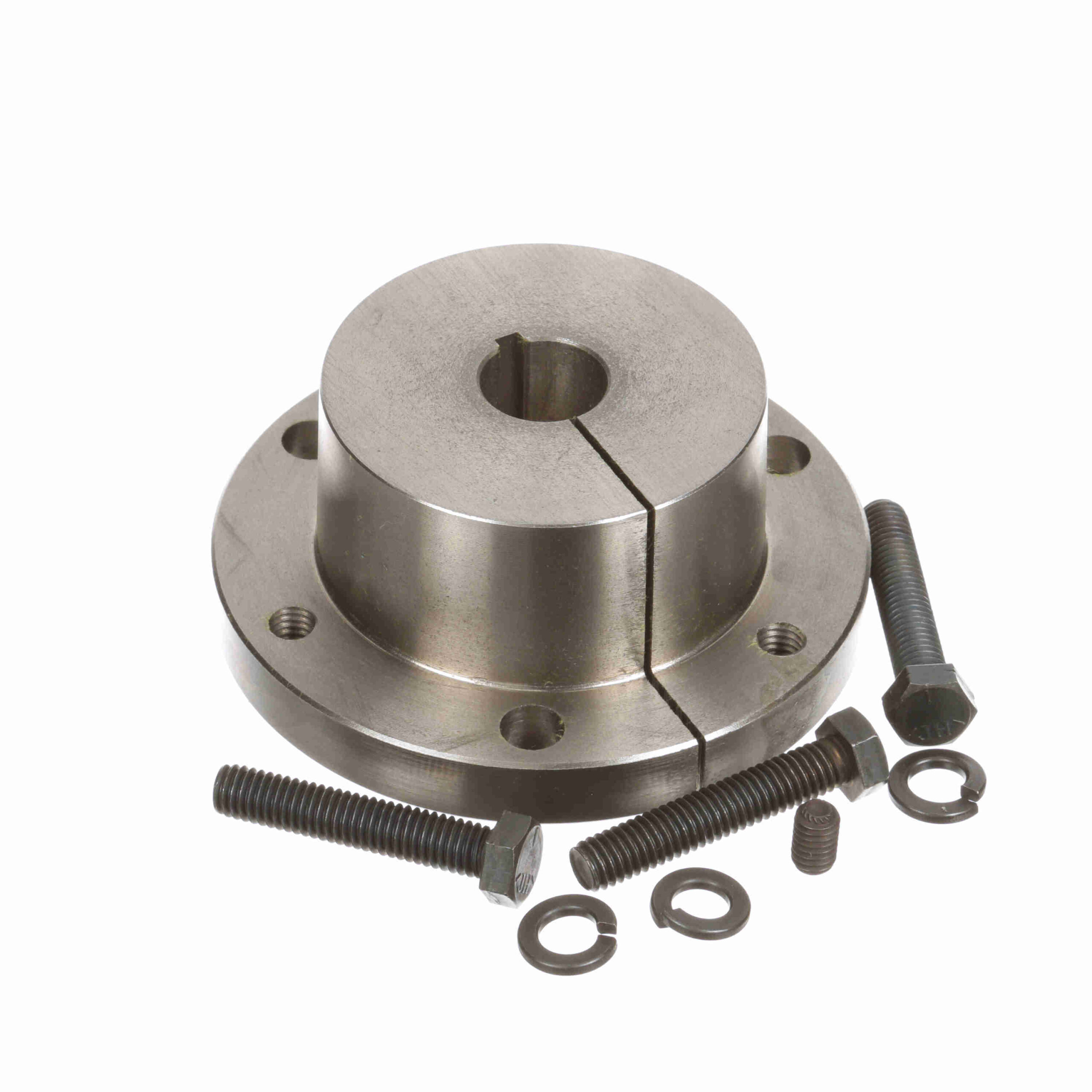

Browning Q-D Bushing – Inch Bore Type – SF 7/8
$213.91
Out of stock
Out of stock
| Outside Diameter (in): | 4.625 in | Keyway: | 3/16 x 3/32 |
|---|---|---|---|
| Torque Capacity (in-lb): | 11, 000 | Total Length (in): | 1.995 in |
| Cap Screws (Size): | 3/8-16 x 2 | Bore Type: | Inch |
| Length Through Bore (in): | 1.995 in | Product Type: | Q-D Bushing |
| Compatible Bore Size [Max] (in): | 0.875 in | Mounting Type: | Conventional |
| Wrench Torque (ft.-lbs.): | 30 | Bushing Type: | SF |
| Cap Screws (No.): | 3 | Model Name: | QD-SF_Bushing_Master |
| Cap Screws (Bolt Circle): | 3.875 | Bore Size (in): | 0.875 in |
| Flange Thickness: | 0.5625 in | Material: | Gray Iron - G3047 |
| Barrel Diameter: | 3.125 in | Barrel Length: | 1.4375 in |
| UPC: | 662289375097 | Weight: | 5.04 LB |
| Packaged Length: | 4.88 Inches | Packaged Width: | 4.88 Inches |
| Packaged Height: | 2.31 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
