- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 3/4

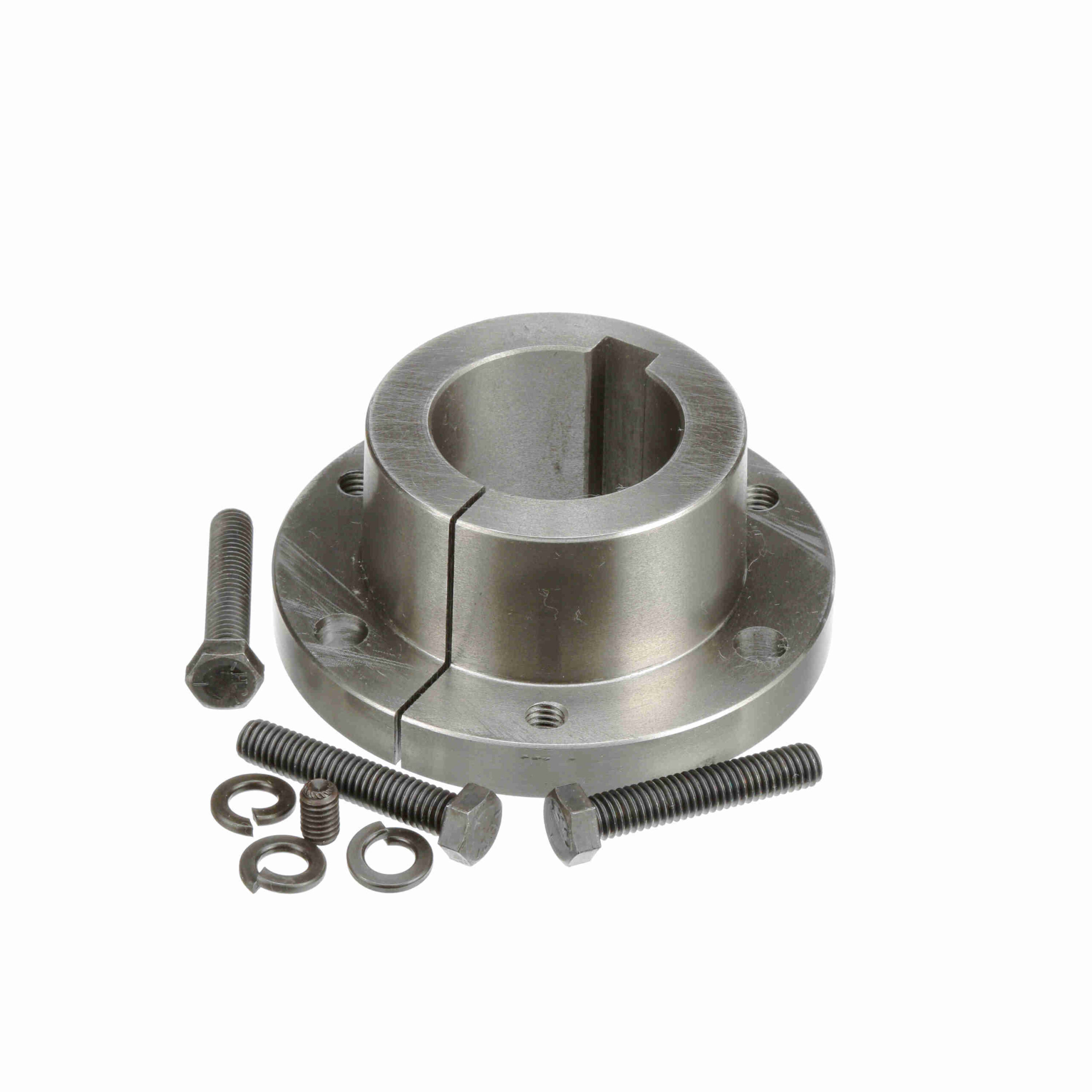

Browning Q-D Bushing – Inch Bore Type – SF 3/4
Out of stock
| Cap Screws (Size): | 3/8-16 x 2 | Torque Capacity (in-lb): | 11, 000 |
|---|---|---|---|
| Product Type: | Q-D Bushing | Cap Screws (No.): | 3 |
| Total Length (in): | 1.995 in | Mounting Type: | Conventional |
| Model Name: | QD-SF_Bushing_Master | Wrench Torque (ft.-lbs.): | 30 |
| Bushing Type: | SF | Outside Diameter (in): | 4.625 in |
| Compatible Bore Size [Max] (in): | 0.75 in | Cap Screws (Bolt Circle): | 3.875 |
| Keyway: | 3/16 x 3/32 | Bore Type: | Inch |
| Length Through Bore (in): | 1.995 in | Bore Size (in): | 0.75 in |
| Barrel Length: | 1.4375 in | Material: | Gray Iron - G3036 |
| Barrel Diameter: | 3.125 in | Flange Thickness: | 0.5625 in |
| UPC: | 662289415038 | Weight: | 5.10 LB |
| Packaged Length: | 5.2 Inches | Packaged Width: | 5.2 Inches |
| Packaged Height: | 2.2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
