- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SF-26T

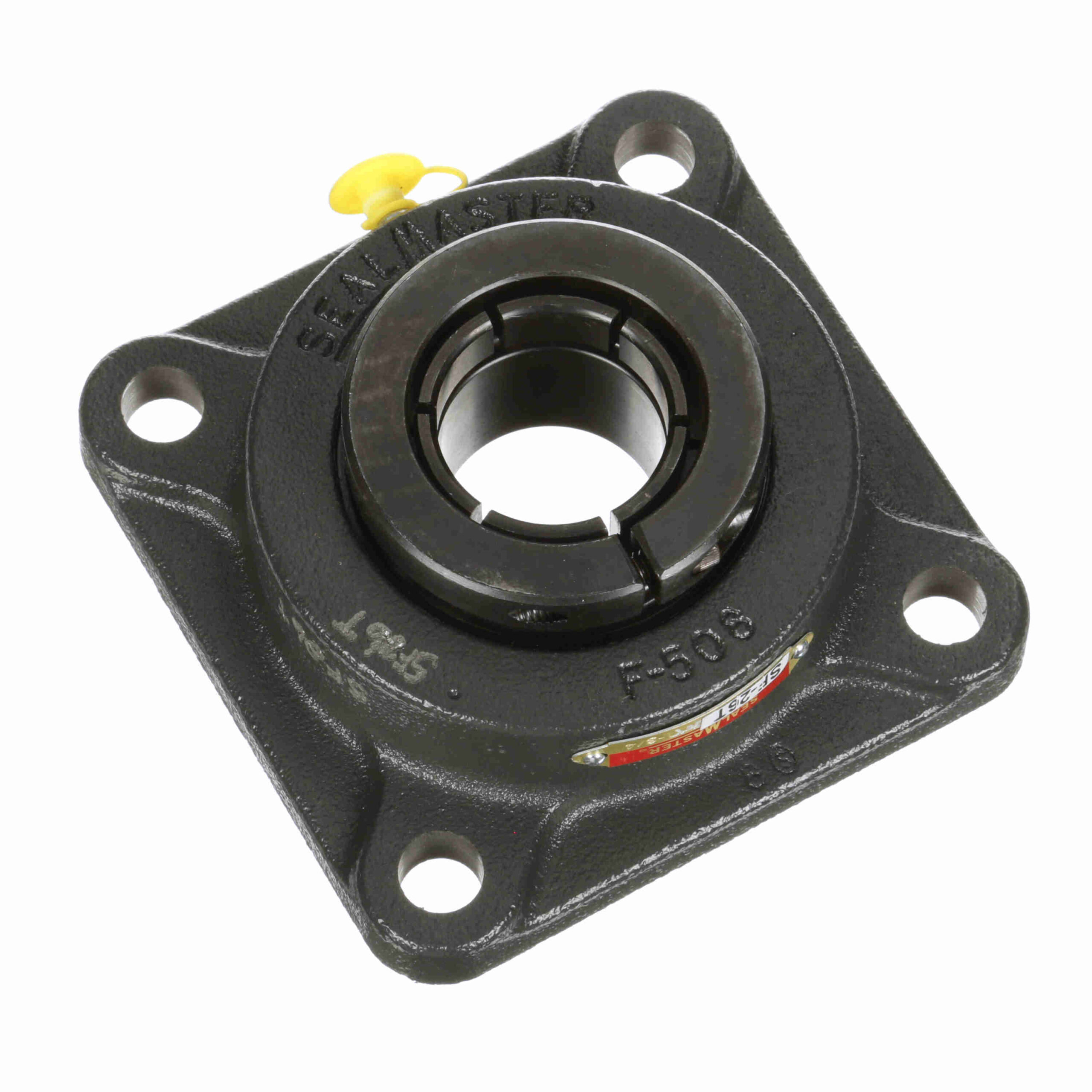

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SF-26T
$304.84
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Measure Units: | Inch |
| Insert No.: | 2-110T | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Type: | Flange, Four Bolt | Maximum Operating Temperature: | 220 °F |
| Housing Base: | Solid | Expansion: | No |
| Duty Series: | Standard Duty | Housing Material: | Cast Iron |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Concentric | Speed (Max): | 5300 |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| End Cap: | No | T Core: | 3.875 |
| UPC: | 662461030059 | Weight: | 6.10 LB |
| Packaged Length: | 5.94 Inches | Packaged Width: | 6.06 Inches |
| Packaged Height: | 2.19 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
