- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Reduced internal clearance and tight housing fit for vibratory applications
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SEHB-15 BDZ

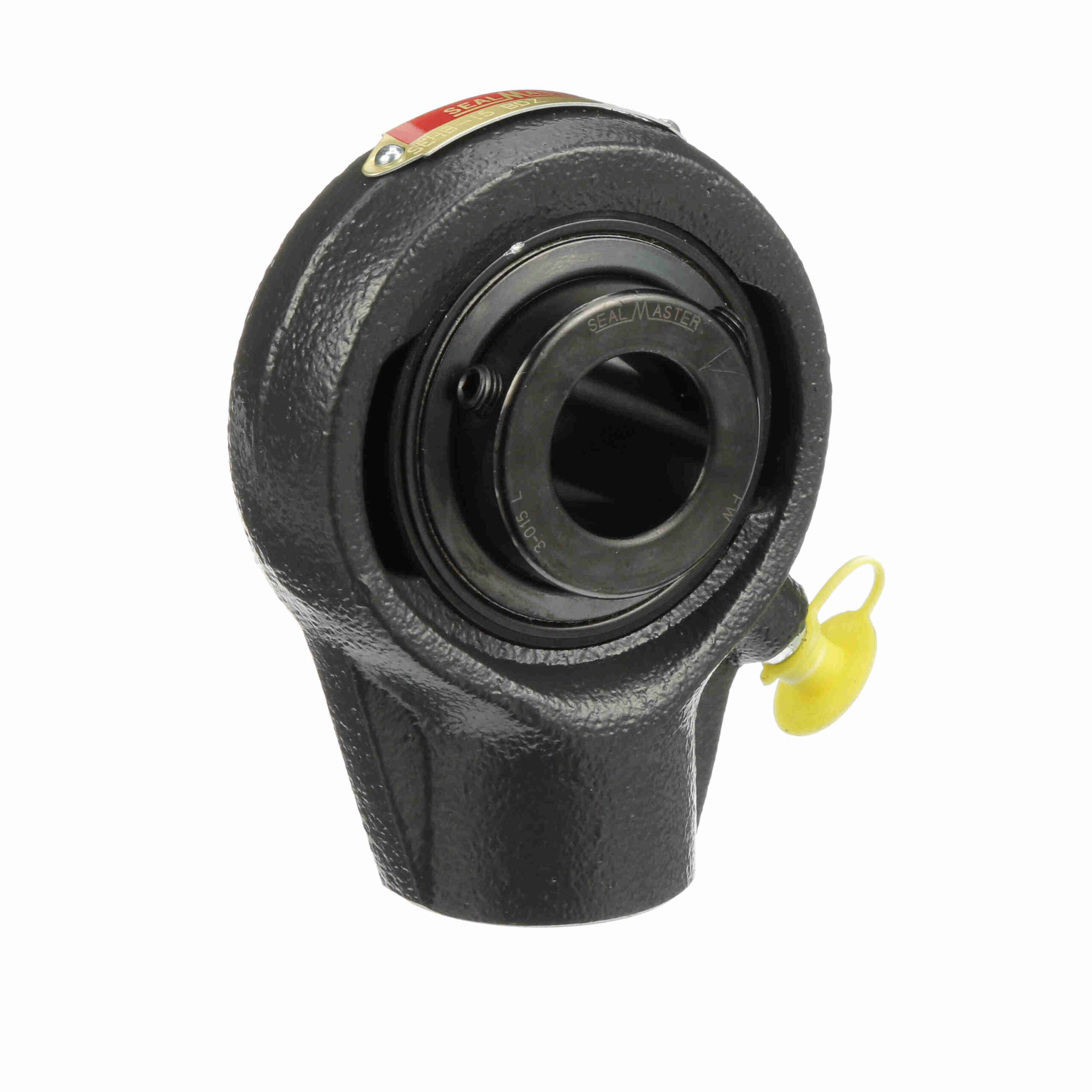

Sealmaster Mounted Cast Iron Hanger Unit Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Vibration Features – SEHB-15 BDZ
$305.34
Out of stock
Out of stock
| Measure Units: | Inch | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Speed (Max): | 5450 |
| Maximum Operating Temperature: | 220 °F | Pipe Tap** N.P.S.M.: | 2 1/2 - 8 1/2 |
| Housing Type: | Hanger Unit | Insert No.: | 3-015 |
| Duty Series: | Standard Duty | Bore Shape: | Straight |
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Expansion: | No | Retainer Type: | Land Riding Retainer |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Setscrew | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Options: | High Vibration Features | Misalignment Type: | Static Only |
| Housing Color: | Gray | Series: | SEHB |
| Finish/Coating: | Uncoated | UPC: | 662461142646 |
| Weight: | 2.27 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
