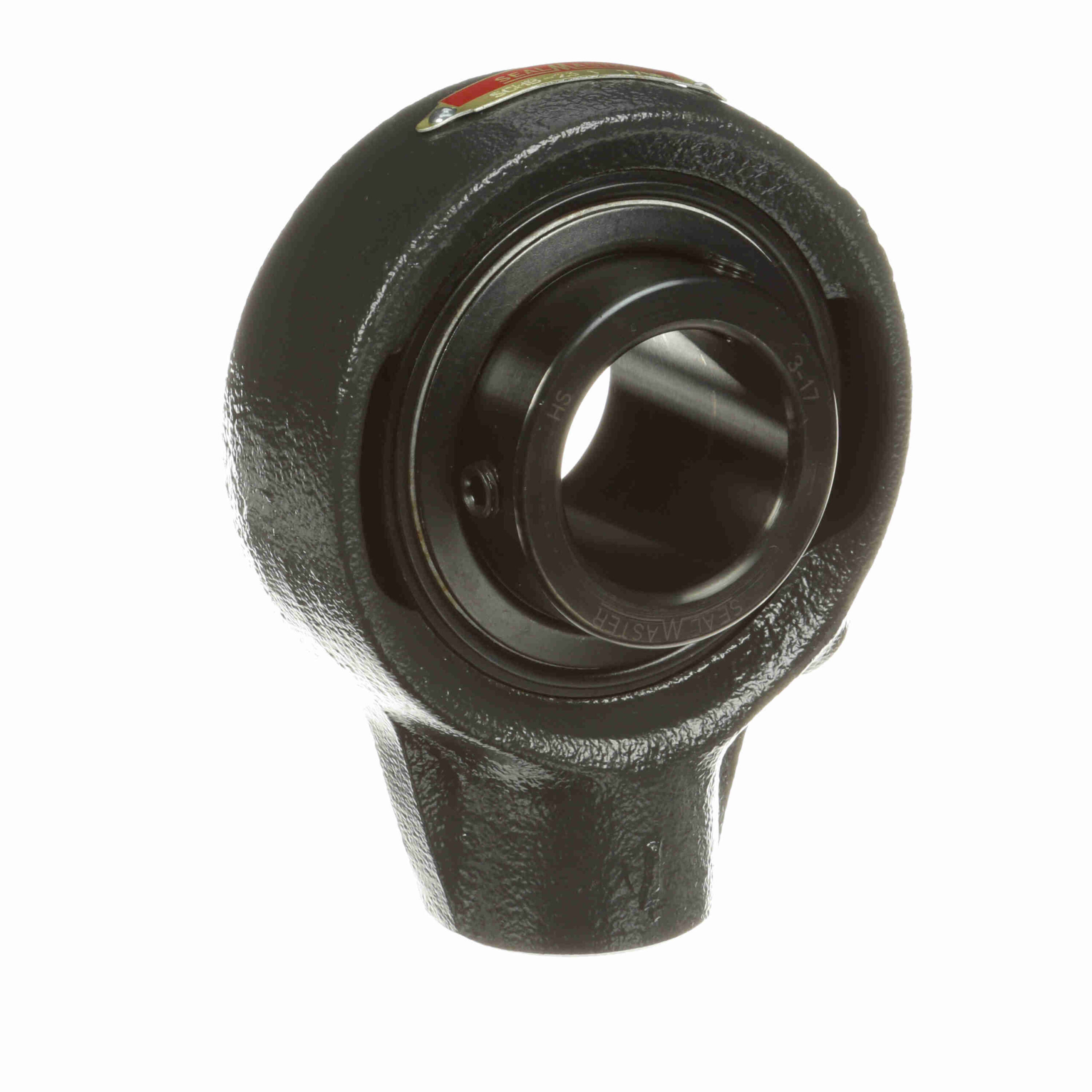

SCHB-23

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry , dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Expansion:	No	Insert Material:	52100 Bearing Steel; Black Oxided
Housing Type:	Hanger Unit	Maximum Operating Temperature:	220 °F
Speed (Max):	4150	Insert No.:	3-17
Rolling Element:	Ball Bearing	Seal Type:	Felt Labyrinth Seal
Housing Material:	Cast Iron	Pipe Tap** N.P.S.M.:	3/4 - 14
Bore Shape:	Straight	Duty Series:	Standard Duty
Retainer Type:	Land Riding Retainer	Measure Units:	Inch
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Setscrew
Relubricatable:	Yes	Inner-Race Heat-Treat Method:	Zone-Hardened
Misalignment:	±2.0° Misalignment - Static Only	Internal Clearance:	Standard
Housing Construction:	One Piece	Replaceable Insert:	Yes
Housing Color:	Gray	Misalignment Type:	Static Only
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Platform:	Gold Line Ball Bearing
Series:	CSCHB	Finish/Coating:	Uncoated
UPC:	662461002759	Weight:	3.42 LB
Packaged Length:	5 Inches	Packaged Width:	2 Inches
Packaged Height:	5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
