- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SDS 1

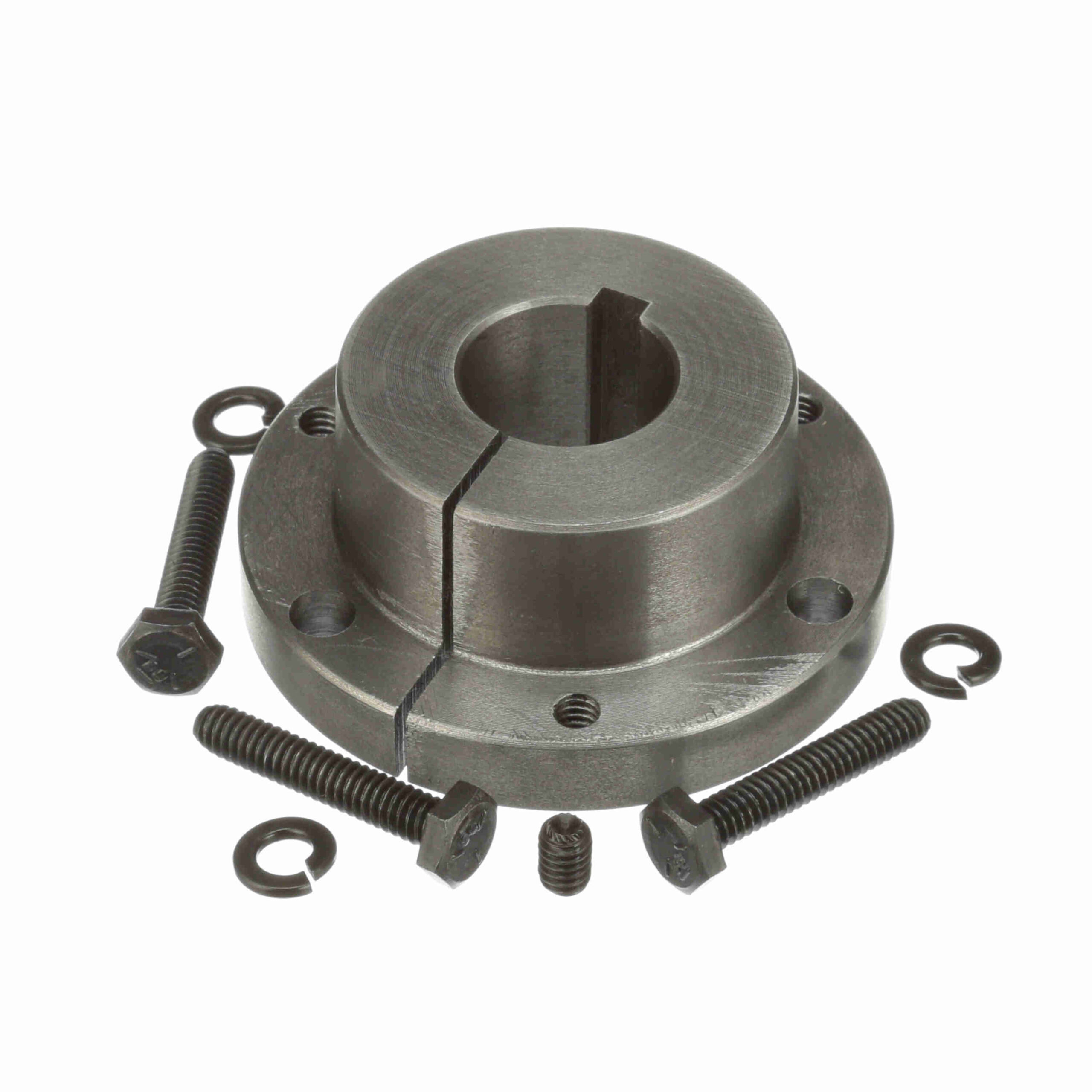

Browning Q-D Bushing – Inch Bore Type – SDS 1
$80.24
Out of stock
Out of stock
| Keyway: | 1/4 x 1/8 | Length Through Bore (in): | 1.33 in |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 1 in | Cap Screws (No.): | 3 |
| Bore Type: | Inch | Cap Screws (Bolt Circle): | 2.6875 |
| Outside Diameter (in): | 3.125 in | Model Name: | QD-SDS_Bushing_Master |
| Total Length (in): | 1.33 in | Bushing Type: | SDS |
| Wrench Torque (ft.-lbs.): | 9 | Mounting Type: | Conventional |
| Cap Screws (Size): | 1/4-20 x 1 3/8 | Torque Capacity (in-lb): | 5, 000 |
| Product Type: | Q-D Bushing | Bore Size (in): | 1 in |
| Barrel Length: | 0.88 in | Barrel Diameter: | 2.1875 in |
| Flange Thickness: | 0.45 in | Material: | Ductile Iron - 65-45-46 |
| UPC: | 662289334889 | Weight: | 1.55 LB |
| Packaged Length: | 4.6 Inches | Packaged Width: | 4.6 Inches |
| Packaged Height: | 1.7 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
