- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 2 3/16

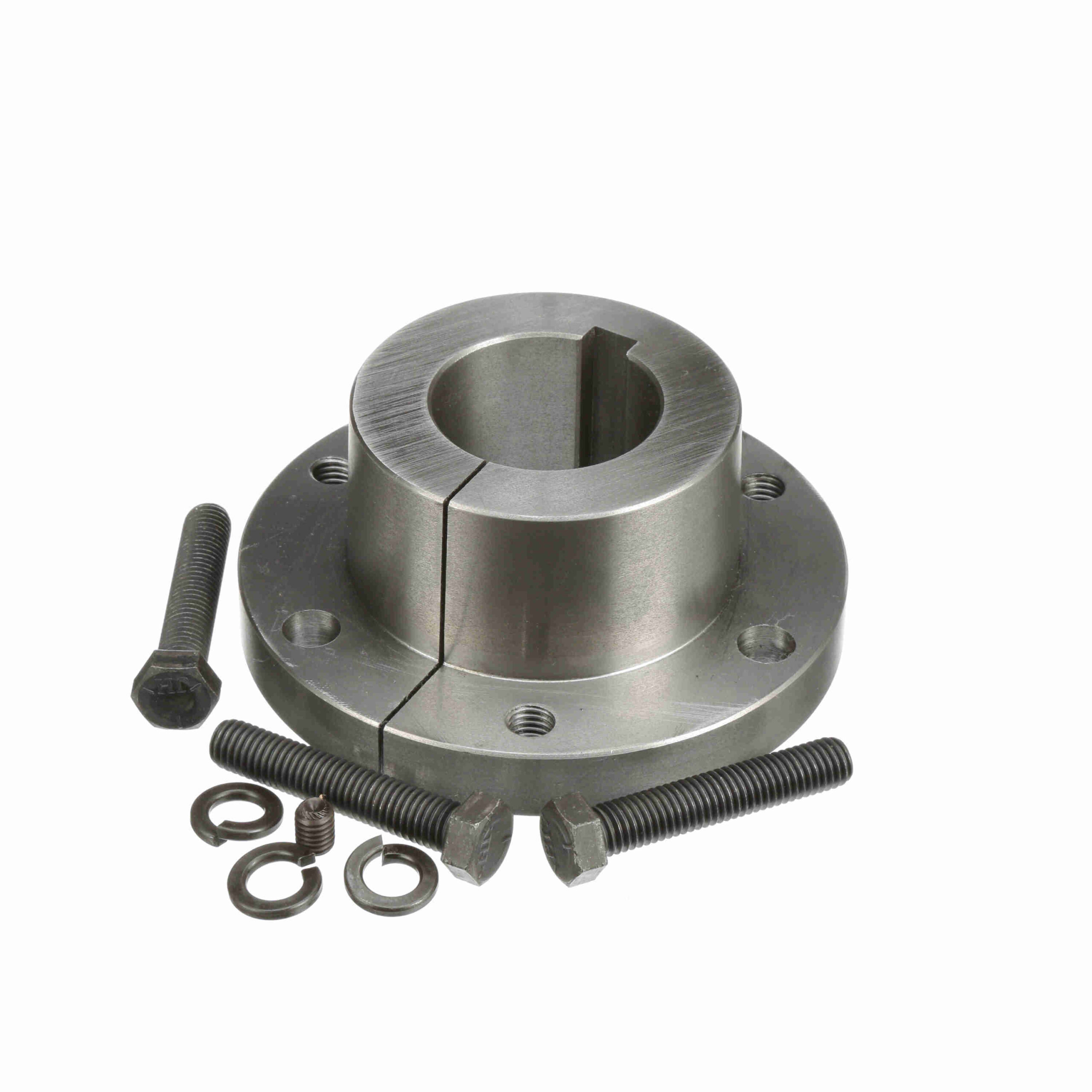

Browning Q-D Bushing – Inch Bore Type – E 2 3/16
$256.65
Out of stock
Out of stock
| Total Length (in): | 2.64 in | Compatible Bore Size [Max] (in): | 2.1875 in |
|---|---|---|---|
| Cap Screws (Bolt Circle): | 5 | Model Name: | QD-E_Bushing_Master |
| Product Type: | Q-D Bushing | Length Through Bore (in): | 2.64 in |
| Bore Type: | Inch | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Mounting Type: | Conventional | Outside Diameter (in): | 6 in |
| Bushing Type: | E | Wrench Torque (ft.-lbs.): | 60 |
| Torque Capacity (in-lb): | 20, 000 | Keyway: | 1/2 x 1/4 |
| Cap Screws (No.): | 3 | Bore Size (in): | 2.1875 in |
| Flange Thickness: | 0.75 in | Barrel Diameter: | 3.834 in |
| Barrel Length: | 1.89 in | Material: | Ductile Iron-Grade 65-45-37 |
| UPC: | 662289364220 | Weight: | 8.67 LB |
| Packaged Length: | 6.4 Inches | Packaged Width: | 6.6 Inches |
| Packaged Height: | 3.3 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
