- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SDS 7/8

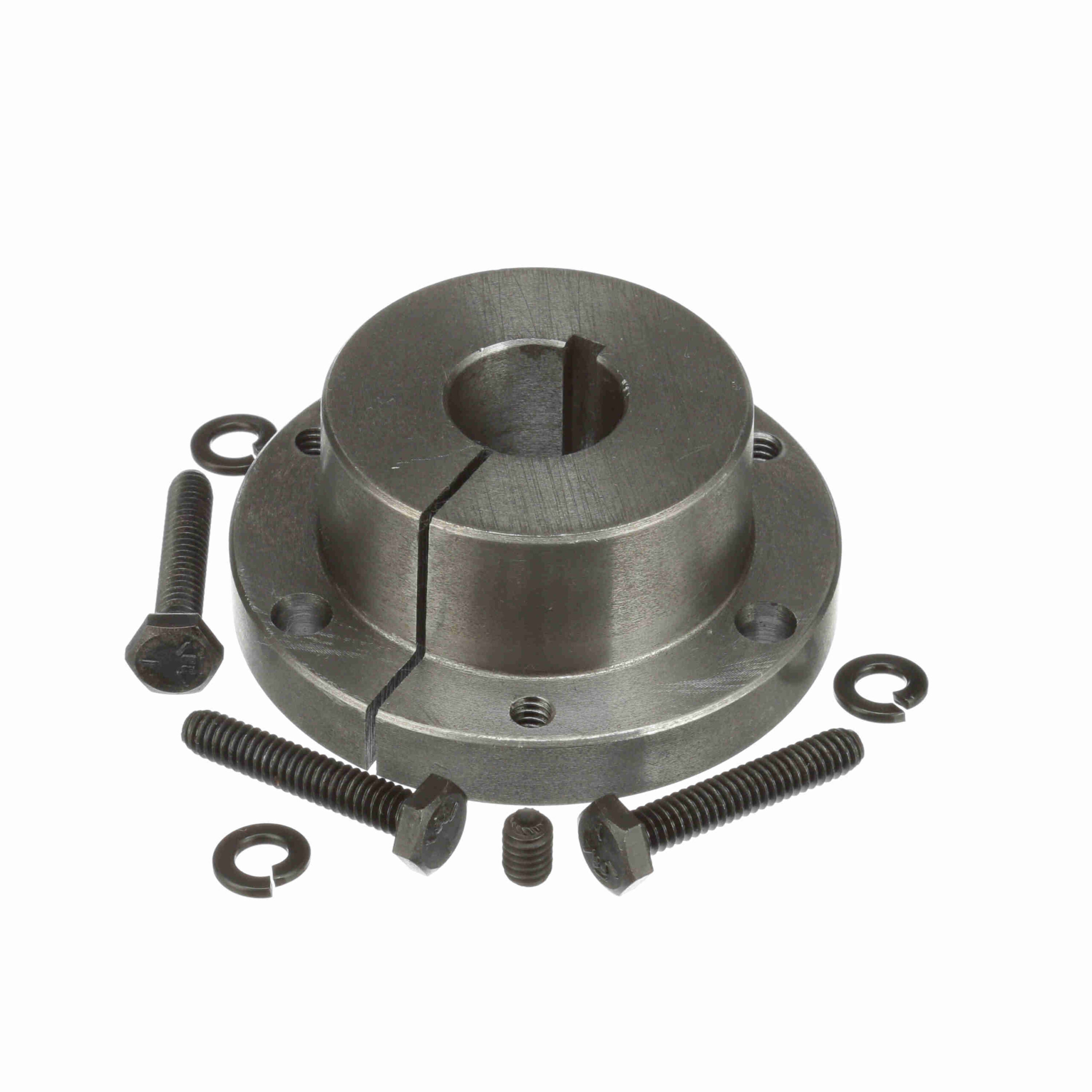

Browning Q-D Bushing – Inch Bore Type – SDS 7/8
$55.80
Out of stock
Out of stock
| Total Length (in): | 1.33 in | Wrench Torque (ft.-lbs.): | 9 |
|---|---|---|---|
| Length Through Bore (in): | 1.33 in | Cap Screws (No.): | 3 |
| Cap Screws (Size): | 1/4-20 x 1 3/8 | Model Name: | QD-SDS_Bushing_Master |
| Product Type: | Q-D Bushing | Bushing Type: | SDS |
| Cap Screws (Bolt Circle): | 2.6875 | Keyway: | 3/16 x 3/32 |
| Bore Type: | Inch | Mounting Type: | Conventional |
| Torque Capacity (in-lb): | 5, 000 | Outside Diameter (in): | 3.125 in |
| Compatible Bore Size [Max] (in): | 0.875 in | Bore Size (in): | 0.875 in |
| Barrel Diameter: | 2.1875 in | Barrel Length: | 0.88 in |
| Material: | Ductile Iron - 65-45-79 | Flange Thickness: | 0.45 in |
| UPC: | 662289354825 | Weight: | 1.61 LB |
| Packaged Length: | 4.7 Inches | Packaged Width: | 4.8 Inches |
| Packaged Height: | 1.6 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
