- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SD 1 7/16

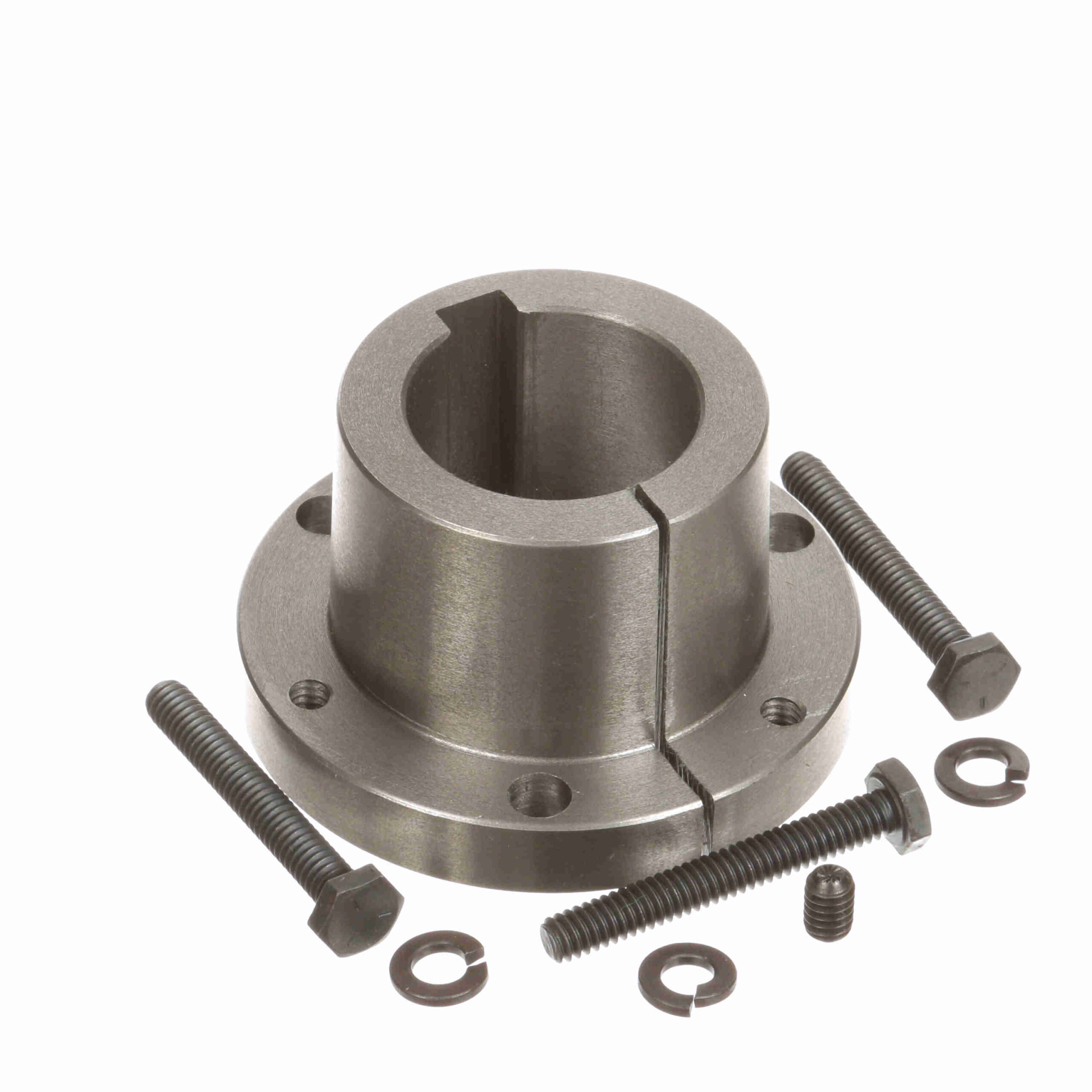

Browning Q-D Bushing – Inch Bore Type – SD 1 7/16
$98.34
Out of stock
Out of stock
| Bushing Type: | SD | Keyway: | 3/8 x 3/16 |
|---|---|---|---|
| Cap Screws (No.): | 3 | Length Through Bore (in): | 1.83 in |
| Model Name: | QD-SD_Bushing_Master | Wrench Torque (ft.-lbs.): | 9 |
| Cap Screws (Size): | 1/4-20 x 1 7/8 | Bore Type: | Inch |
| Total Length (in): | 1.83 in | Product Type: | Q-D Bushing |
| Compatible Bore Size [Max] (in): | 1.4375 in | Mounting Type: | Conventional |
| Outside Diameter (in): | 3.125 in | Torque Capacity (in-lb): | 5, 000 |
| Cap Screws (Bolt Circle): | 2.6875 | Bore Size (in): | 1.4375 in |
| Barrel Length: | 1.38 in | Material: | Ductile Iron - 65-45-25 |
| Barrel Diameter: | 2.1875 in | Flange Thickness: | 0.45 in |
| UPC: | 662289394715 | Weight: | 1.49 LB |
| Packaged Length: | 4.2 Inches | Packaged Width: | 4.3 Inches |
| Packaged Height: | 2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
