- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Standard internal clearance
SB 22215 W33 SS

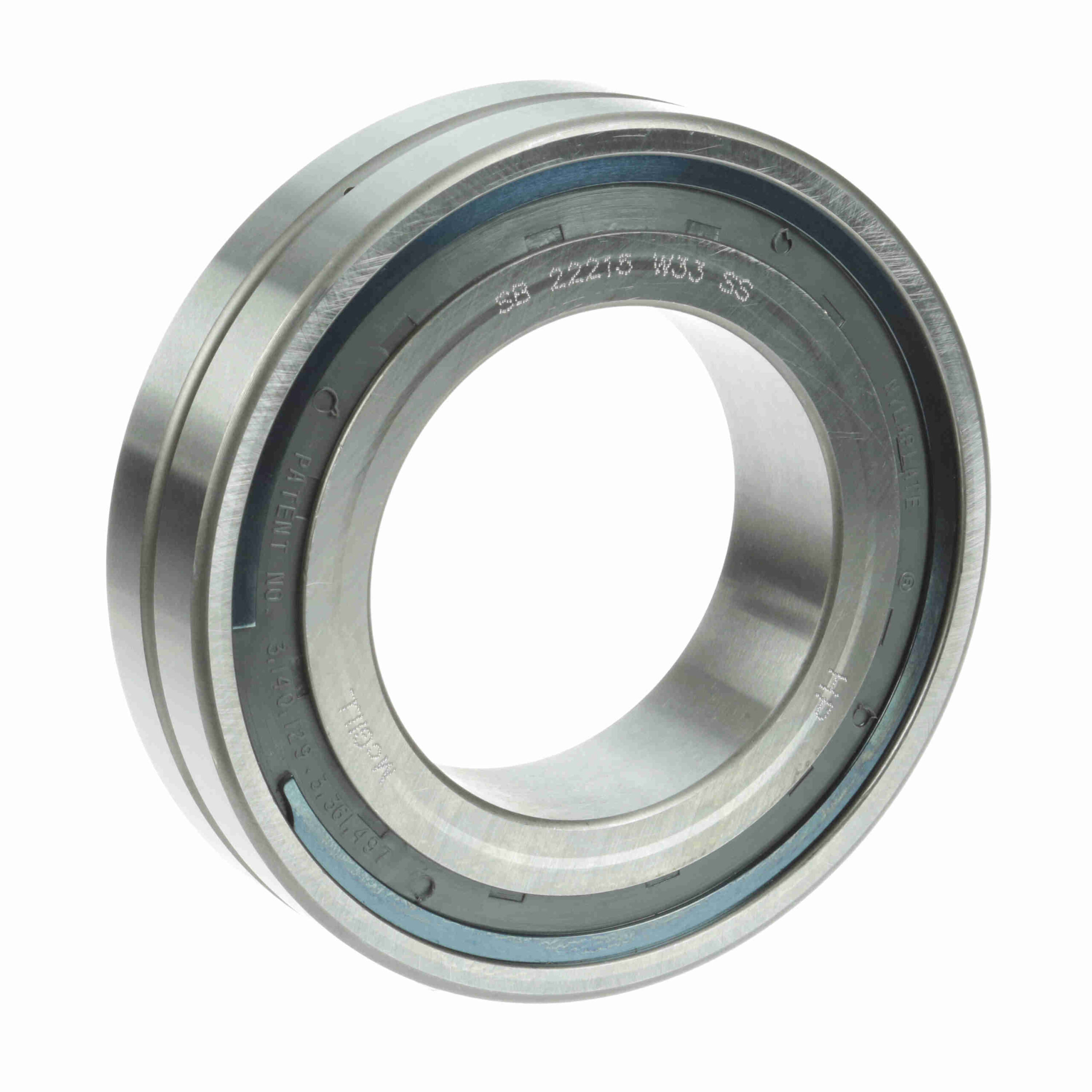

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22215 W33 SS
$618.28
Availability: 4 in stock
Availability: 4 in stock
| Seal Type: | Single Seal | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Angular Misalignment: | 2° |
| Radial Clearance: | C0 | Bore Type: | Straight |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Material: | 52100 Bearing Steel | Number of Rows: | 1 |
| Full Complement/Caged: | Caged | Speed (Max) Oil (RPM): | 3, 500 rpm |
| Platform: | SPHERE-ROL® | Sealed: | Sealed - Both Sides |
| Duplexing: | No | Speed (Max) Grease (RPM): | 1, 750 rpm |
| Precision Rating: | P0, ISO 15-2008 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Outer Ring Type: | Not Split | Finish/Coating: | Uncoated |
| Dynamic Load Rating (kN): | 168.4 kN | Mounting Method: | Shaft Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166005313 | Weight: | 3.57 LB |
| Packaged Length: | 5.69 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 5.69 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
