- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Greater than standard internal clearance
SB 22212 C3 W33 SS

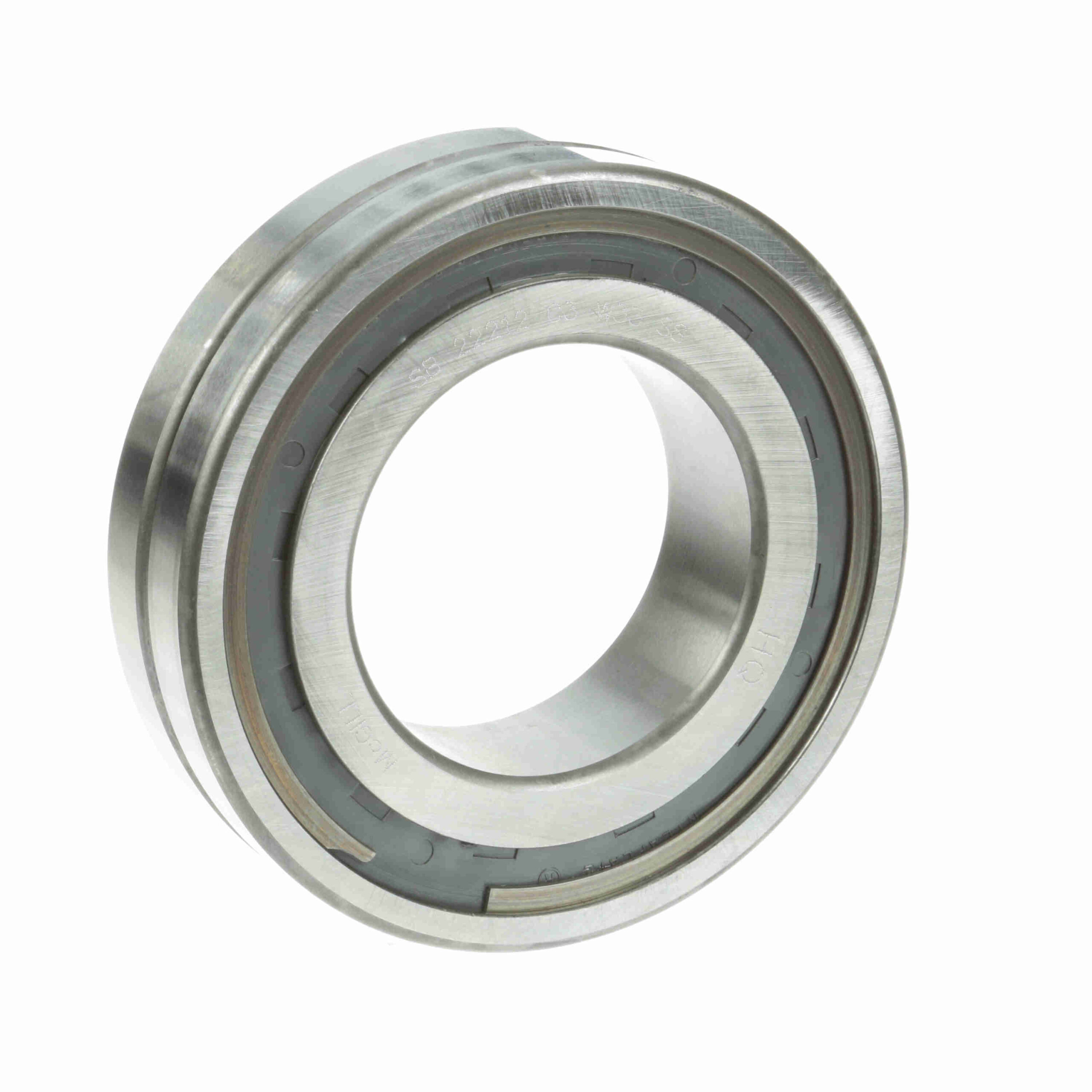

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22212 C3 W33 SS
$305.64
Availability: 4 in stock
Availability: 4 in stock
| Seal Type: | Single Seal | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Angular Misalignment: | 2° |
| Radial Clearance: | C3 | Material: | 52100 Bearing Steel |
| Bore Type: | Straight | Rolling Element: | Spherical Roller |
| Number of Rows: | 1 | Misalignment: | Yes |
| Speed (Max) Oil (RPM): | 4, 200 rpm | Full Complement/Caged: | Caged |
| Sealed: | Sealed - Both Sides | Platform: | SPHERE-ROL® |
| Speed (Max) Grease (RPM): | 2, 100 rpm | Duplexing: | No |
| Outer Ring Type: | Not Split | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | P0, ISO 15-2008 | Finish/Coating: | Uncoated |
| Dynamic Load Rating (kN): | 130.8 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166004644 | Weight: | 2.60 LB |
| Packaged Length: | 5.06 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 5.06 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
