- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Standard internal clearance
- Tapered bore
SB 22208K W33

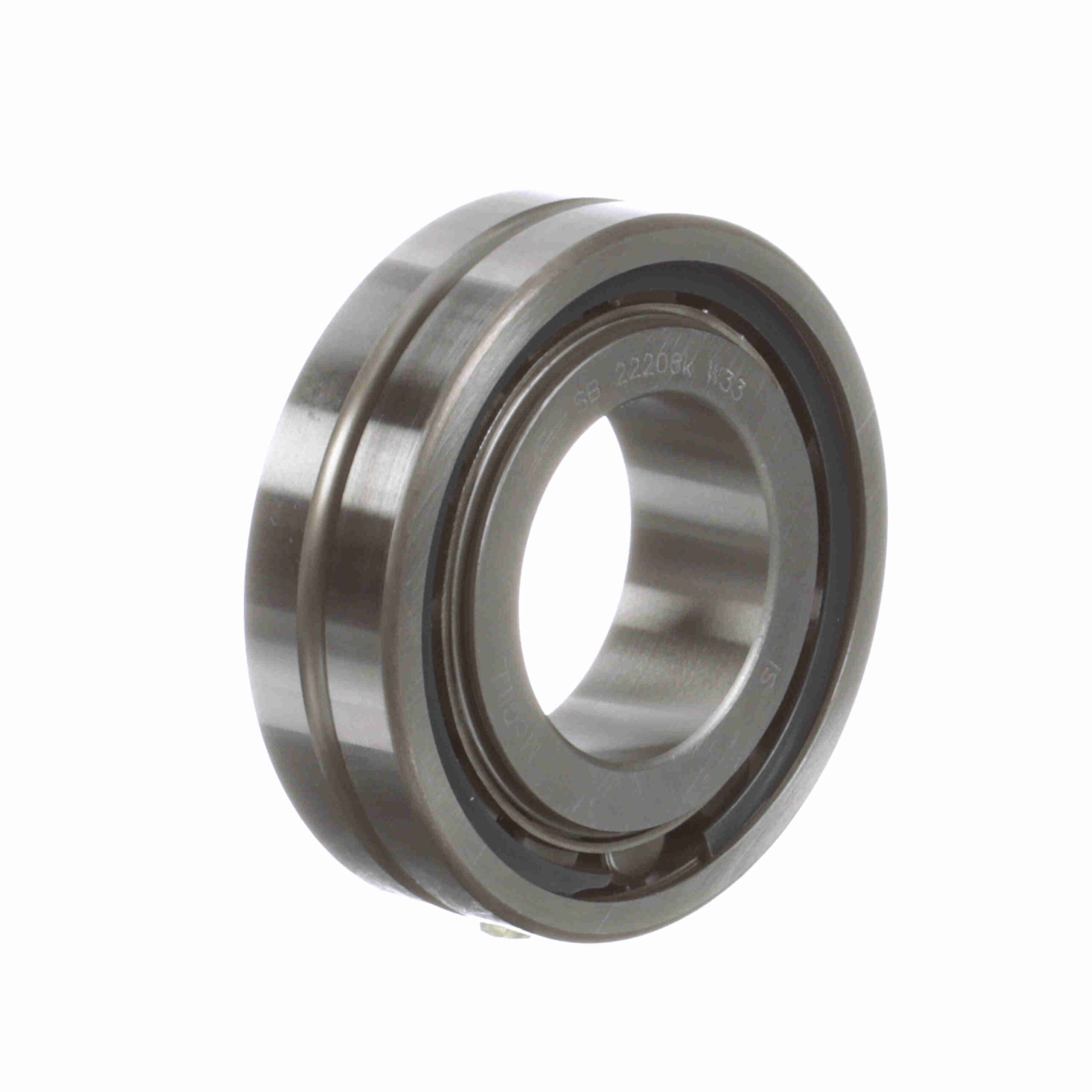

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Tapered Bore – Unsealed – SB 22208K W33
$295.60
Out of stock
Out of stock
| Series: | 22200 | Seal Type: | Unsealed |
|---|---|---|---|
| Cage Material: | Steel | Bore Type: | Tapered |
| Radial Clearance: | C0 | Material: | 52100 Bearing Steel |
| Angular Misalignment: | 3° | Misalignment: | Yes |
| Number of Rows: | 1 | Rolling Element: | Spherical Roller |
| Platform: | SPHERE-ROL® | Sealed: | None |
| Speed (Max) Grease (RPM): | 3, 000 rpm | Full Complement/Caged: | Caged |
| Speed (Max) Oil (RPM): | 6, 000 rpm | Duplexing: | No |
| Finish/Coating: | Uncoated | Precision Rating: | P0, ISO 15-2008 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Outer Ring Type: | Not Split |
| Dynamic Load Rating (kN): | 75.3 kN | Mounting Method: | Adapter Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166002824 | Weight: | 1.09 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 3.66 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
