- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S2 3 7/8

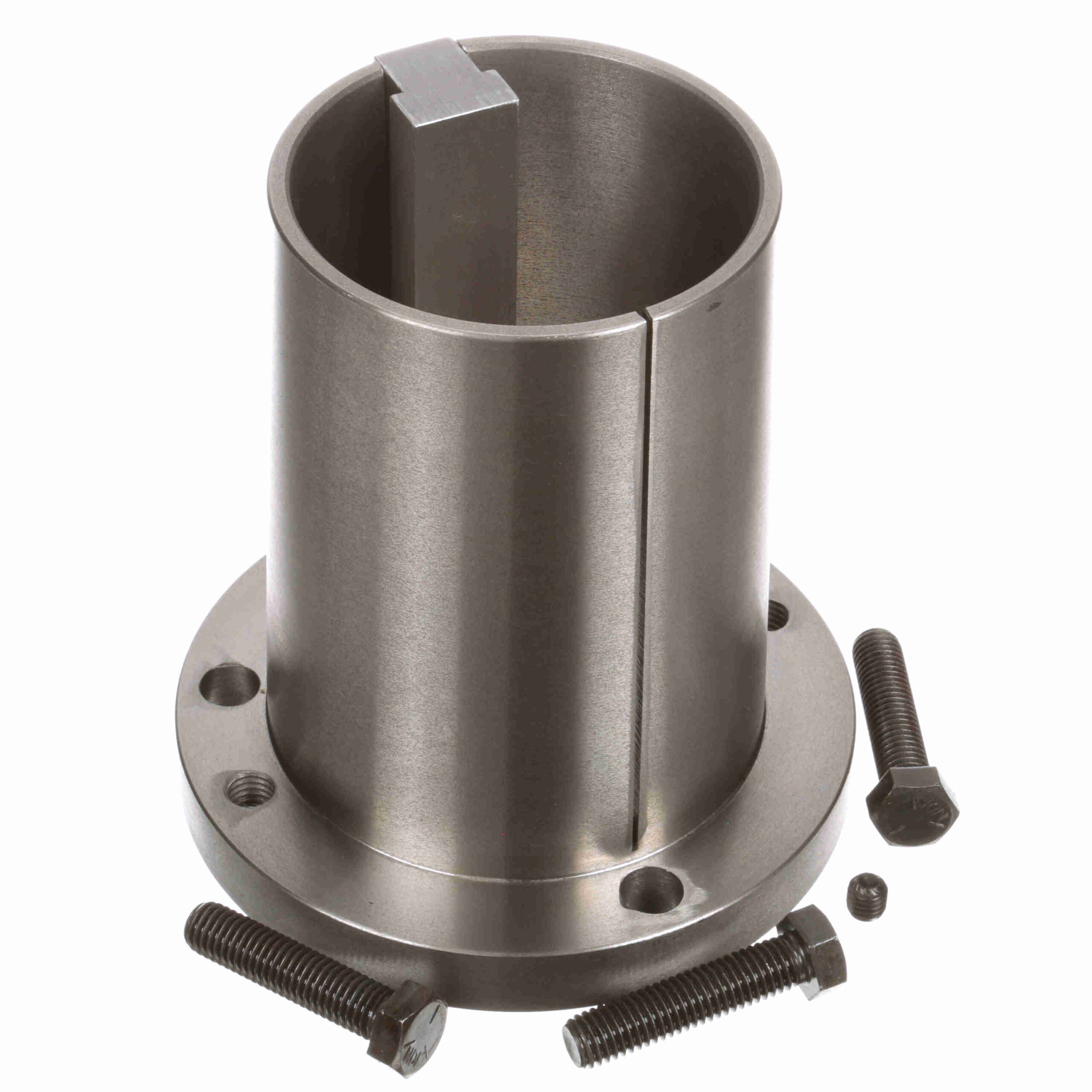

Browning Split Taper Bushing – Inch Bore Type – S2 3 7/8
$490.72
Out of stock
Out of stock
| Wrench Torque (in-lb): | 840 | Bore Size (in): | 3.875 in |
|---|---|---|---|
| Cap Screws (Size): | 1/2 x 2 1/4 | Length Through Bore (in): | 6.75 in |
| Bushing Type: | S2 | Material: | Sintered Steel or Ductile Iron |
| Keyseat: | 1 x 1/2 | Total Length (in): | 6.75 in |
| Compatible Bore Size [Max] (in): | 3.875 in | Model Name: | S1-S2_Type2_BushingMaster |
| Outside Diameter (in): | 6.375 in | Product Type: | Split Taper Bushing |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| Bolt Circle Diameter (in): | 5.375 | Thread Size: | 1/2-13 |
| Mounting Type: | Conventional | Barrel Diameter (Small End): | 4.2696 |
| Barrel Diameter (Large End): | 4.625 | Flange Type: | Solid Flange |
| Includes: | Set Screw, Cap Screws & Spcl Key | Flange Thickness: | 0.75 |
| Screw Length: | 2.25 | UPC: | 662289131730 |
| Weight: | 11.62 LB | Packaged Length: | 7.5 Inches |
| Packaged Width: | 7 Inches | Packaged Height: | 7 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
