- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S1 3 3/16

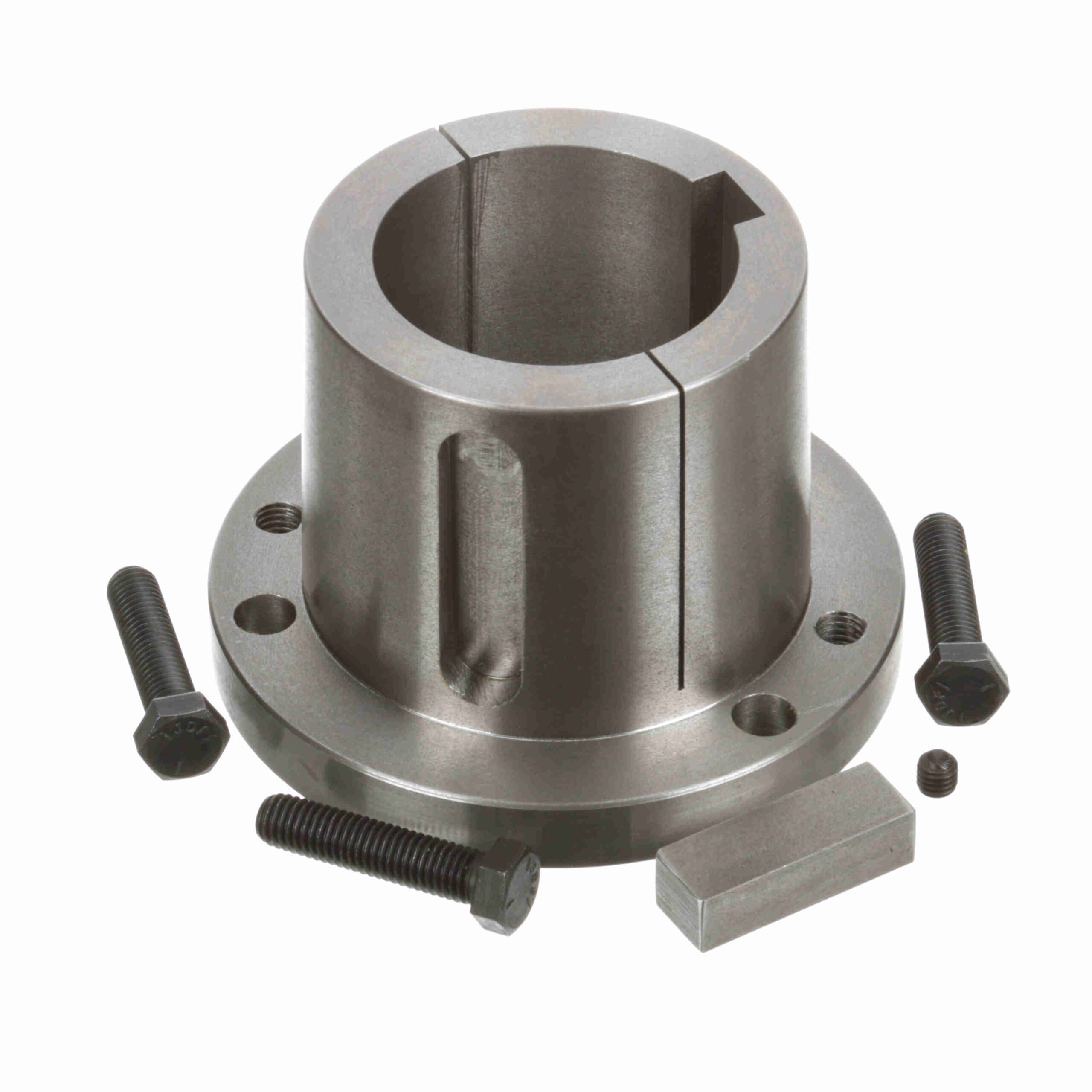

Browning Split Taper Bushing – Inch Bore Type – S1 3 3/16
$392.56
Out of stock
Out of stock
| Compatible Bore Size [Max] (in): | 3.1875 in | Bore Size (in): | 3.1875 in |
|---|---|---|---|
| Outside Diameter (in): | 6.375 in | Model Name: | S1-S2_Type1_BushingMaster |
| Keyseat: | 3/4 x 3/8 | Material: | Sintered Steel or Ductile Iron |
| Product Type: | Split Taper Bushing | Cap Screws (Size): | 1/2 x 2 1/4 |
| Bushing Type: | S1 | Wrench Torque (in-lb): | 840 |
| Length Through Bore (in): | 4.375 in | Total Length (in): | 4.375 in |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| Includes: | Set Screw, Cap Screws and Ext. Key | Mounting Type: | Conventional |
| Screw Length: | 2.25 | Bolt Circle Diameter (in): | 5.375 |
| Thread Size: | 1/2-13 | Flange Type: | Solid Flange |
| Flange Thickness: | 0.75 | Barrel Diameter (Small End): | 4.418 |
| Barrel Diameter (Large End): | 4.625 | UPC: | 662289191338 |
| Weight: | 12.28 LB | Packaged Length: | 6.38 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 6.38 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
