- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted contact flinger seal
- Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing
RPB 303-C2

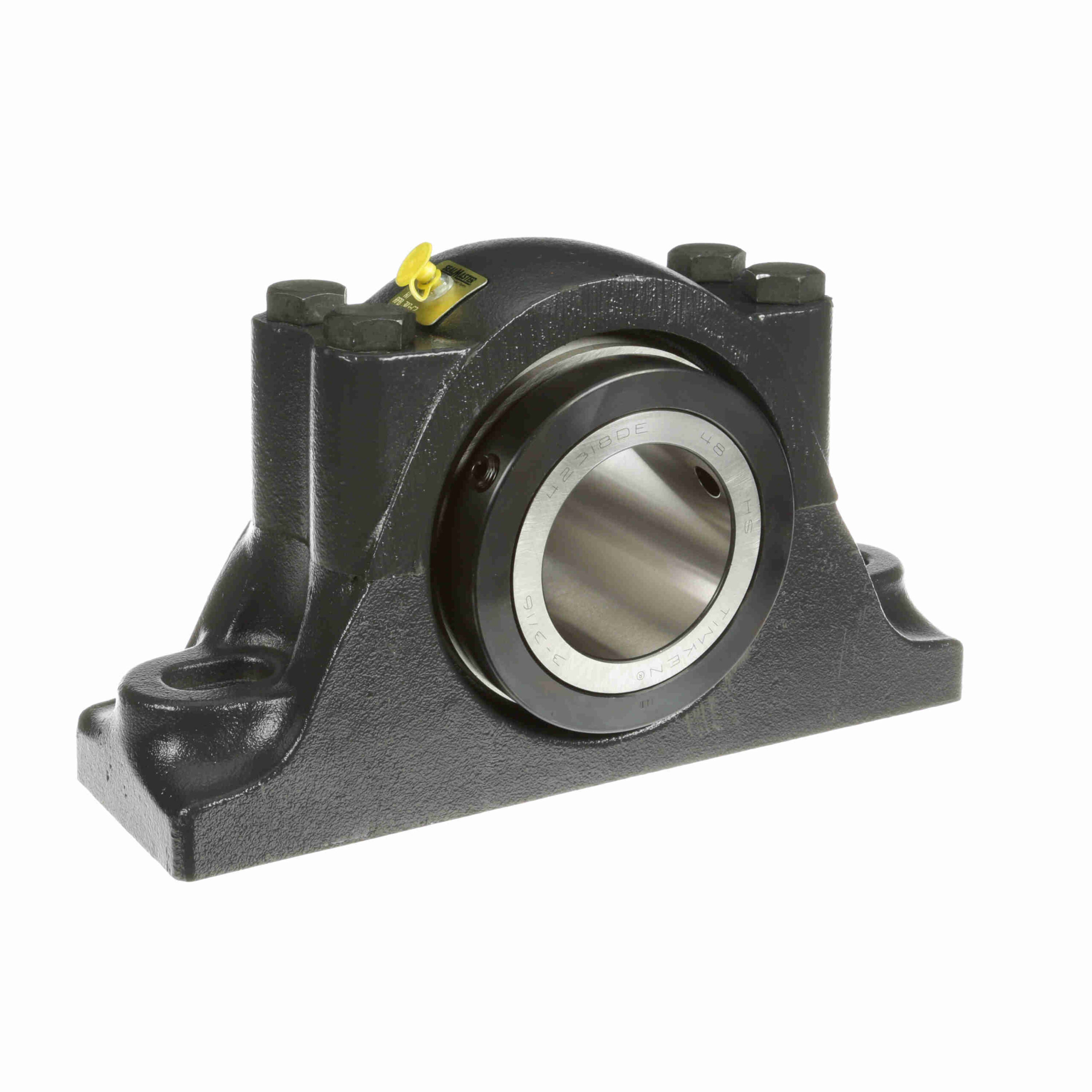

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RPB 303-C2
$2,396.02
Out of stock
Out of stock
| Housing Base: | Solid | Rolling Element: | Tapered Roller |
|---|---|---|---|
| Measure Units: | Inch | Housing Type: | Pillow Block, Two Bolt |
| Insert Material: | 52100 Bearing Steel | Housing Material: | Cast Iron |
| Seal Type: | Single Lip Contact Seal | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Expansion: | No | Maximum Operating Temperature: | 220 °F |
| Housing Construction: | Split Two Piece | Locking Type: | Double Collar Mount |
| Duty Series: | Standard | Insert No.: | RCI-303C |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Relubricatable: | Yes | Lubrication: | Lithium; EP; NLGI#2 |
| Radial Dynamic Load Capacity (lb): | 15, 320 | Misalignment: | ±3.0° Misalignment - Static Only |
| Speed (Max): | 1500 | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Platform: | RPB Series | Retainer Material: | Steel |
| Bearing Insert Coating: | Uncoated | End Cap: | No |
| Housing Color: | Gray | Series: | RPB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288493631 |
| Weight: | 56.00 LB | Packaged Length: | 16.5 Inches |
| Packaged Width: | 6.75 Inches | Packaged Height: | 9.63 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
