- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease

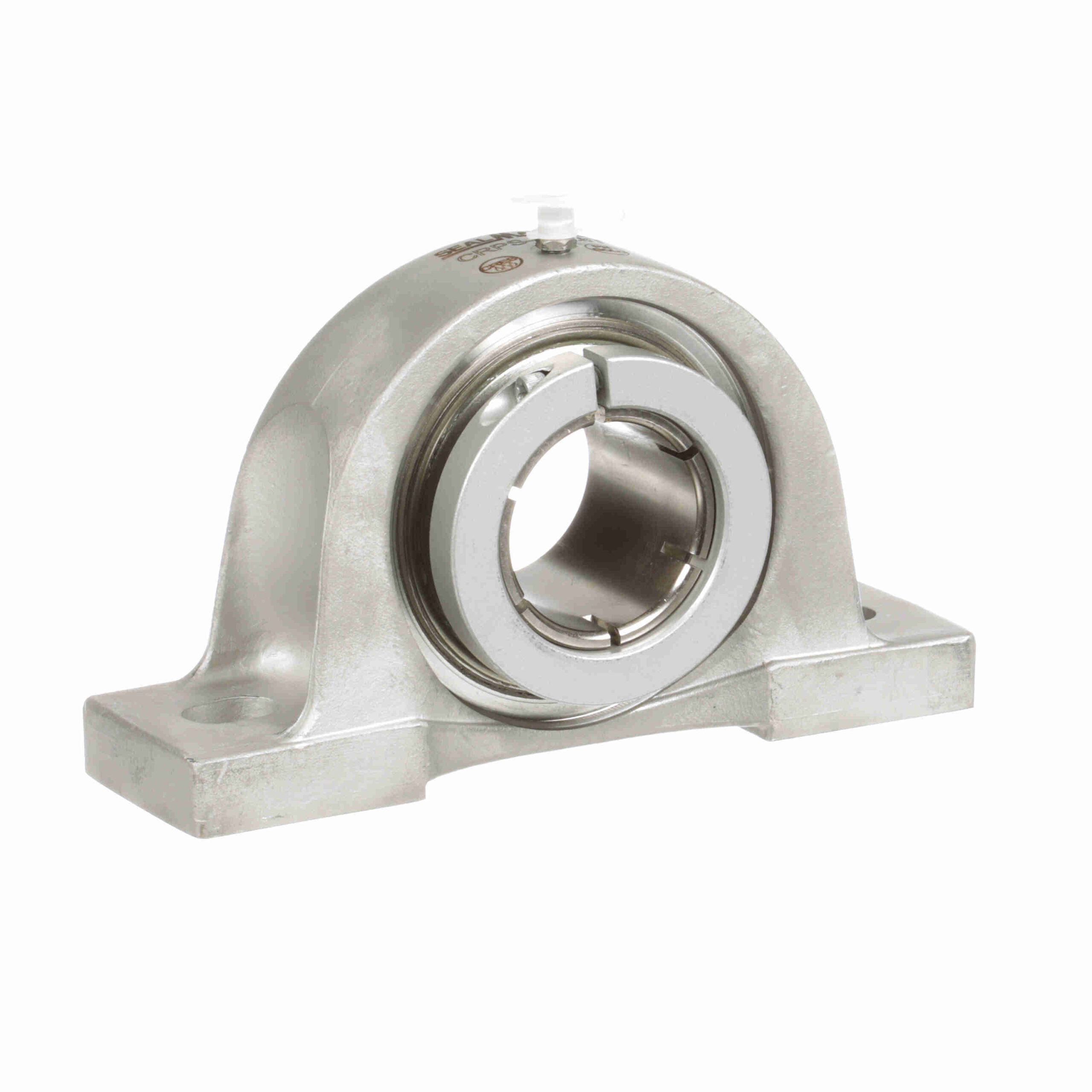

CRPS-PN28T
Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – CRPS-PN28T
$730.73
Out of stock
Out of stock
| Internal Clearance: | Standard | Measure Units: | Inch |
|---|---|---|---|
| Housing Material: | Stainless Steel | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Speed (Max): | 1600 | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Pillow Block, Two Bolt | Expansion: | No |
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Seal Type: | Multi-Lip Contact Seal |
| Insert No.: | PN-28T | Retainer Type: | Land Riding Retainer |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Locking Type: | Concentric | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Outer Ring Land Profile: | Standard | Platform: | PN Gold |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Housing Color: | Silver |
| Options: | Corrosion Resistant | End Cap: | Yes |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 5, 139 |
| Cage Material: | PPS | Grease Fitting Thread Size: | 1/4-28 NF |
| UPC: | 662461343388 | Weight: | 6.50 LB |
| Packaged Length: | 5.19 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 7.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
