- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy split cast iron housing
RFB 315

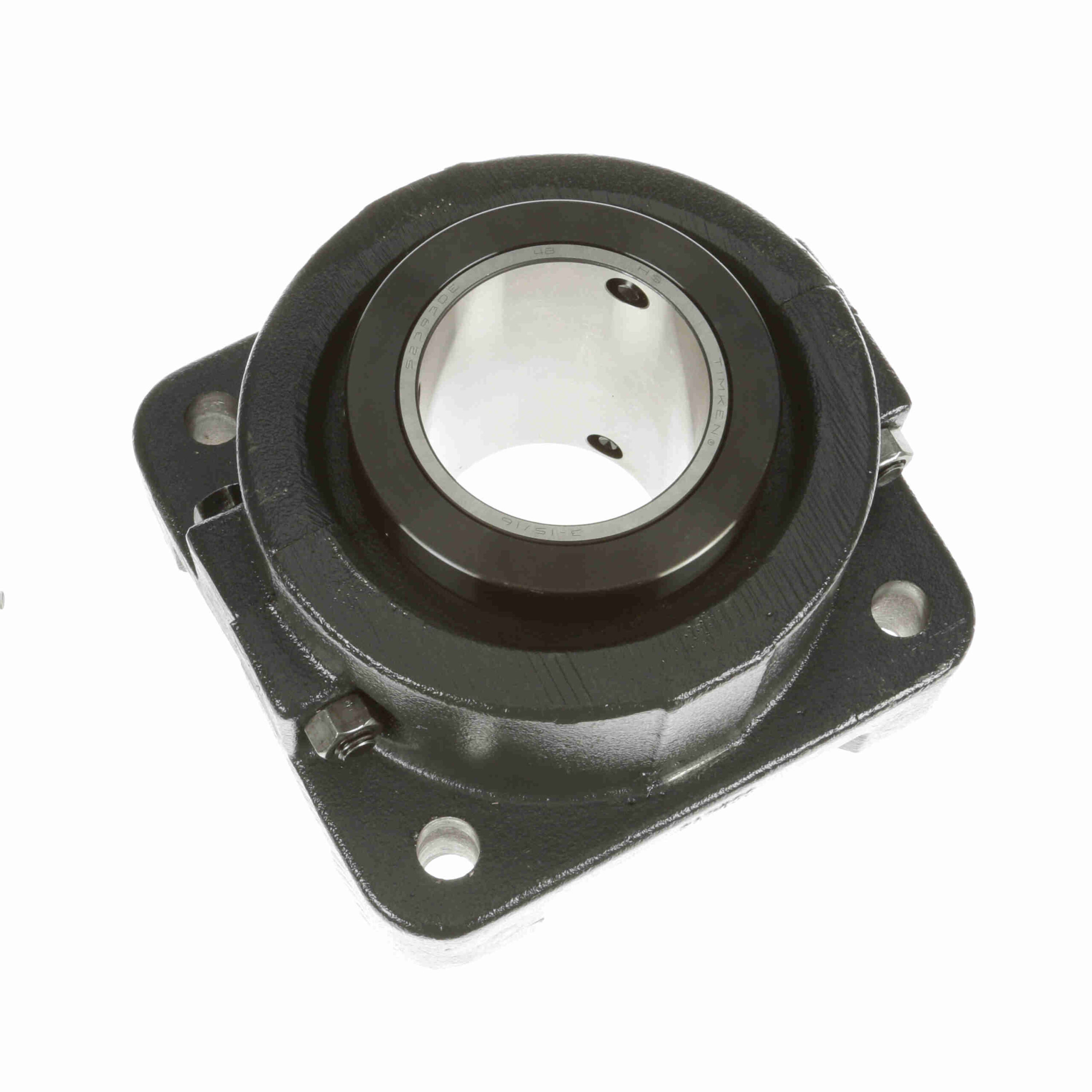

Sealmaster Mounted Cast Iron Four Bolt Flange Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RFB 315
$2,458.77
Availability: 1 in stock
Availability: 1 in stock
| Maximum Operating Temperature: | 220 °F | Bore Shape: | Straight |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Housing Material: | Cast Iron | Expansion: | Non-Expansion Bearing (Fixed) |
| Housing Type: | Flange; Four Bolt | Speed (Max): | 1250 |
| Rolling Element: | Tapered Roller | Housing Base: | Solid |
| Insert Material: | 52100 Bearing Steel | Measure Units: | Inch |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Internal Clearance: | Standard | Duty Series: | Standard |
| Lubrication: | Lithium; EP; NLGI#2 | Locking Type: | Double Collar Mount |
| Misalignment: | ±3.0° Misalignment - Static Only | Housing Construction: | Split Two Piece |
| Radial Dynamic Load Capacity (lb): | 20, 980 | Insert No.: | RCI-315 |
| Retainer Material: | Steel | Bearing Insert Coating: | Uncoated |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Platform: | RPB Series | End Cap: | No |
| Series: | RFB | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662288480396 | Weight: | 81.80 LB |
| Packaged Length: | 11 Inches | Packaged Width: | 11 Inches |
| Packaged Height: | 6.63 Inches | HTC: | 8483.20.4080 |
| Country of Origin: | United States of America |
