- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-210

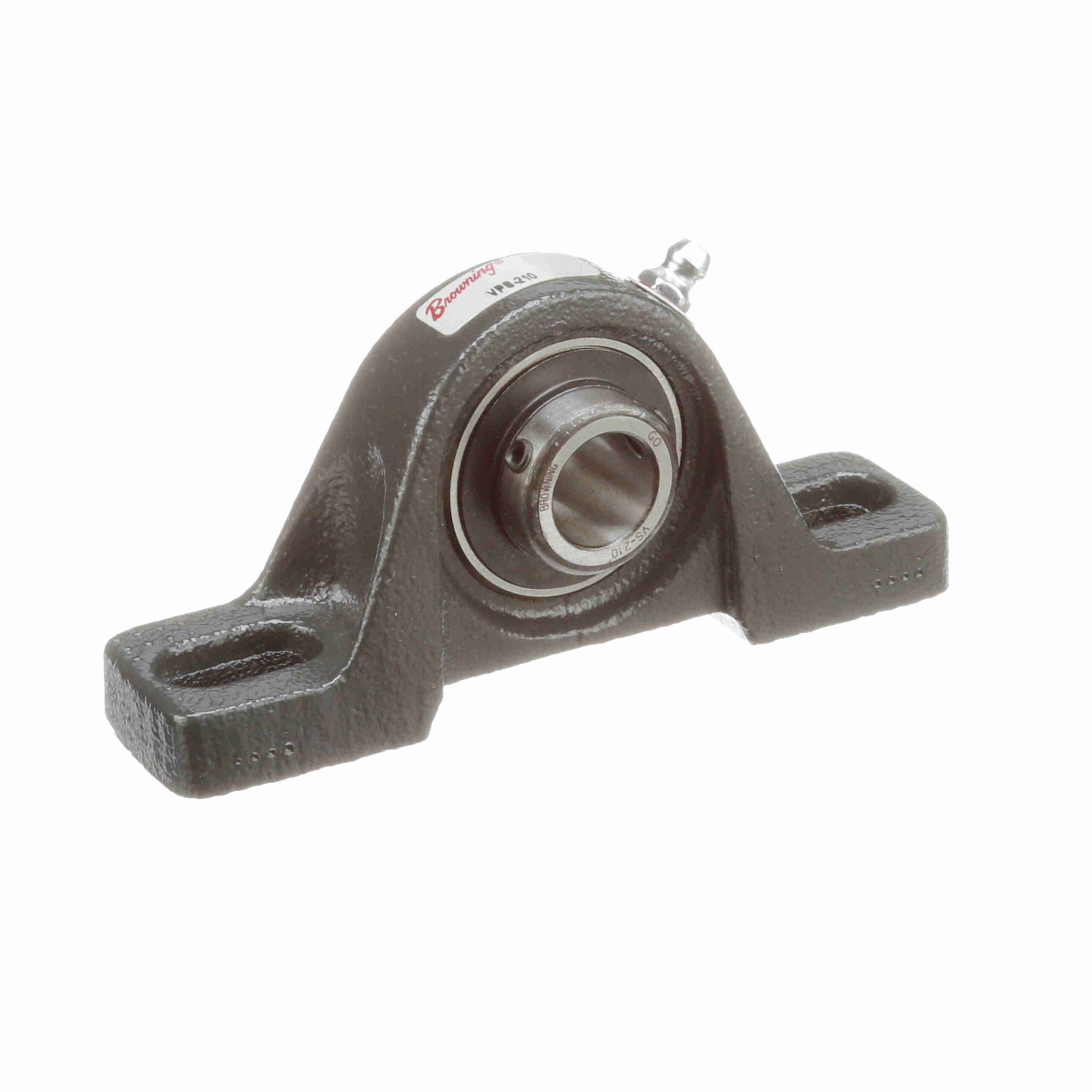

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-210
$64.93
Availability: 61 in stock
Availability: 61 in stock
| Internal Clearance: | Standard | Maximum Operating Temperature: | 200 °F |
|---|---|---|---|
| Housing Material: | Cast Iron | Expansion: | No |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Insert No.: | VS-210 | Measure Units: | Inch |
| Duty Series: | Standard Duty | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Type: | Pillow Block; Two Bolt | Speed (Max): | 7500 |
| Housing Base: | Semi-Solid | Retainer Type: | Ball Riding Retainer |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 108 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Relubricatable: | Yes | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Setscrew | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | End Cap: | No |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 1, 117 | UPC: | 662289525355 |
| Weight: | 0.99 LB | Packaged Length: | 5.6 Inches |
| Packaged Width: | 3.4 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
