- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R2 3 3/8

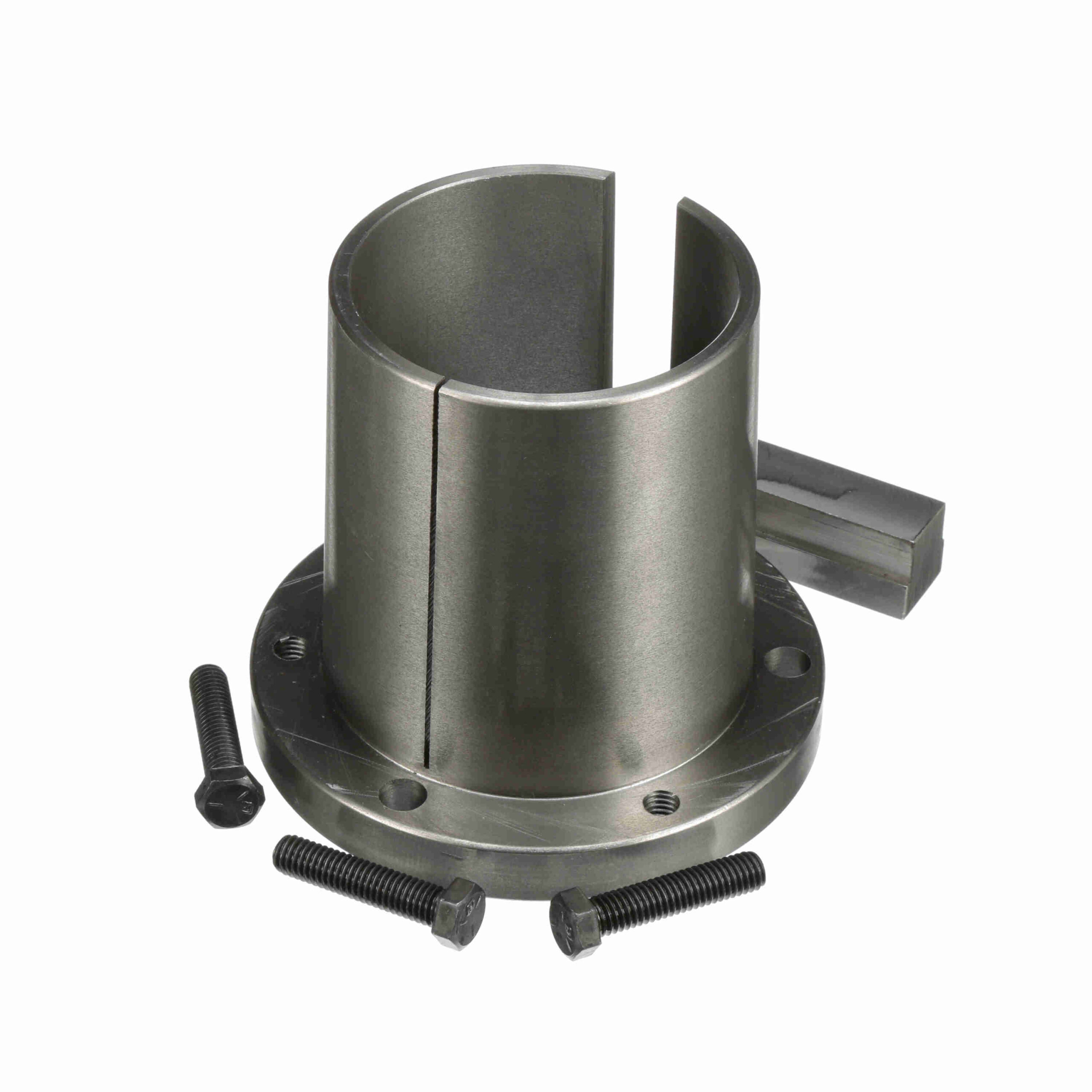

Browning Split Taper Bushing – Inch Bore Type – R2 3 3/8
$217.63
Out of stock
Out of stock
| Length Through Bore (in): | 4.875 in | Model Name: | R1-R2_Type2_BushingMaster |
|---|---|---|---|
| Outside Diameter (in): | 5.375 in | Bore Size (in): | 3.375 in |
| Bushing Type: | R2 | Wrench Torque (in-lb): | 348 |
| Keyseat: | 7/8 x 7/16 | Cap Screws (Size): | 3/8 x 1 3/4 |
| Material: | Sintered Steel or Ductile Iron | Compatible Bore Size [Max] (in): | 3.375 in |
| Total Length (in): | 4.875 in | Product Type: | Split Taper Bushing |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289281107 | Weight: | 6.52 LB |
| Packaged Length: | 6 Inches | Packaged Width: | 6 Inches |
| Packaged Height: | 5.1 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
