- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q2 1 5/16

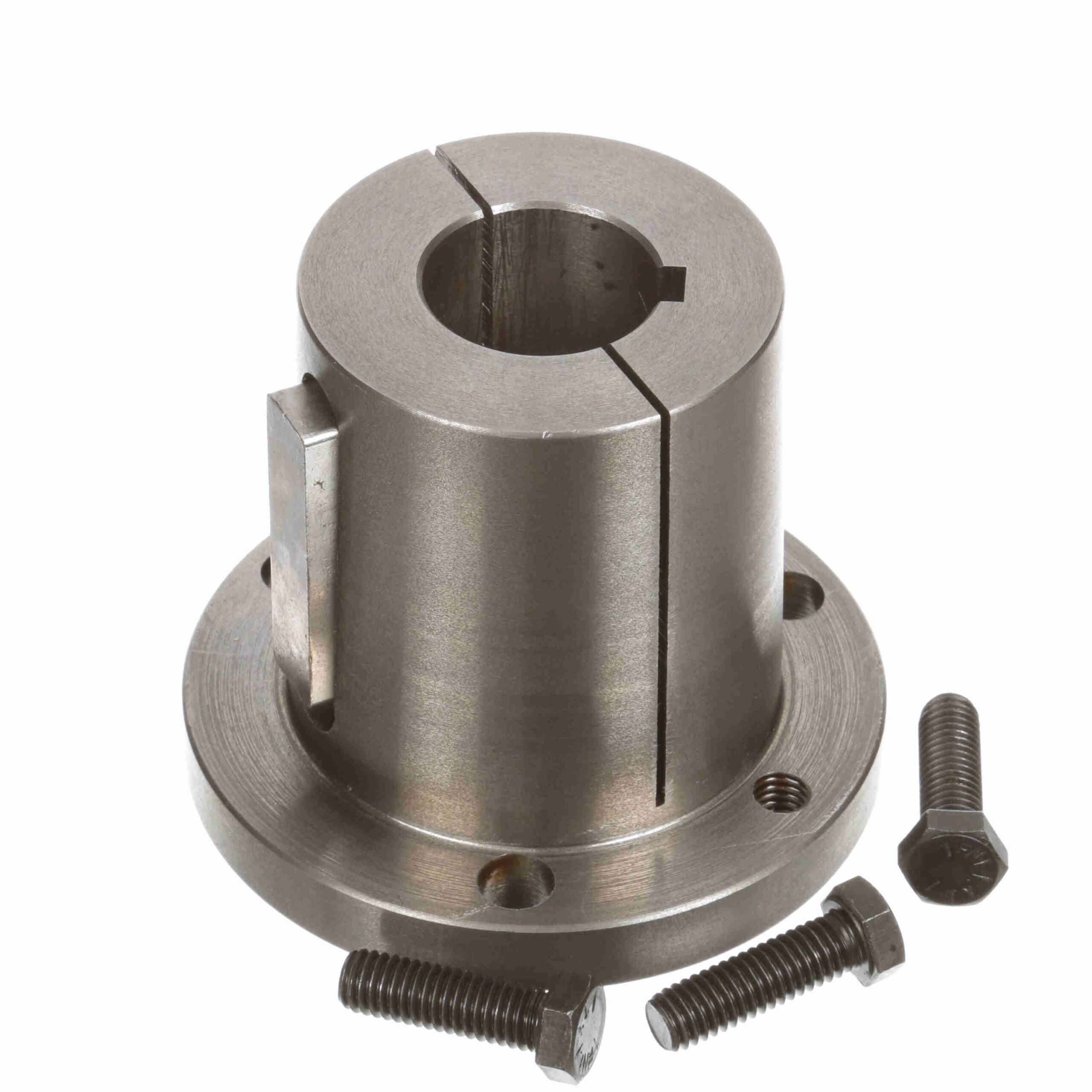

Browning Split Taper Bushing – Inch Bore Type – Q2 1 5/16
$174.95
Out of stock
Out of stock
| Wrench Torque (in-lb): | 348 | Bore Size (in): | 1.3125 in |
|---|---|---|---|
| Length Through Bore (in): | 3.5 in | Cap Screws (Size): | 3/8 x 1 1/4 |
| Total Length (in): | 3.5 in | Bushing Type: | Q2 |
| Outside Diameter (in): | 4.125 in | Product Type: | Split Taper Bushing |
| Material: | Sintered Steel or Ductile Iron | Keyseat: | 5/16 x 5/32 |
| Compatible Bore Size [Max] (in): | 1.3125 in | Model Name: | Q2-Type1_Bushing_Master |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289189991 | Weight: | 5.73 LB |
| Packaged Length: | 4.6 Inches | Packaged Width: | 4.3 Inches |
| Packaged Height: | 2.7 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
