- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R1 1 5/16

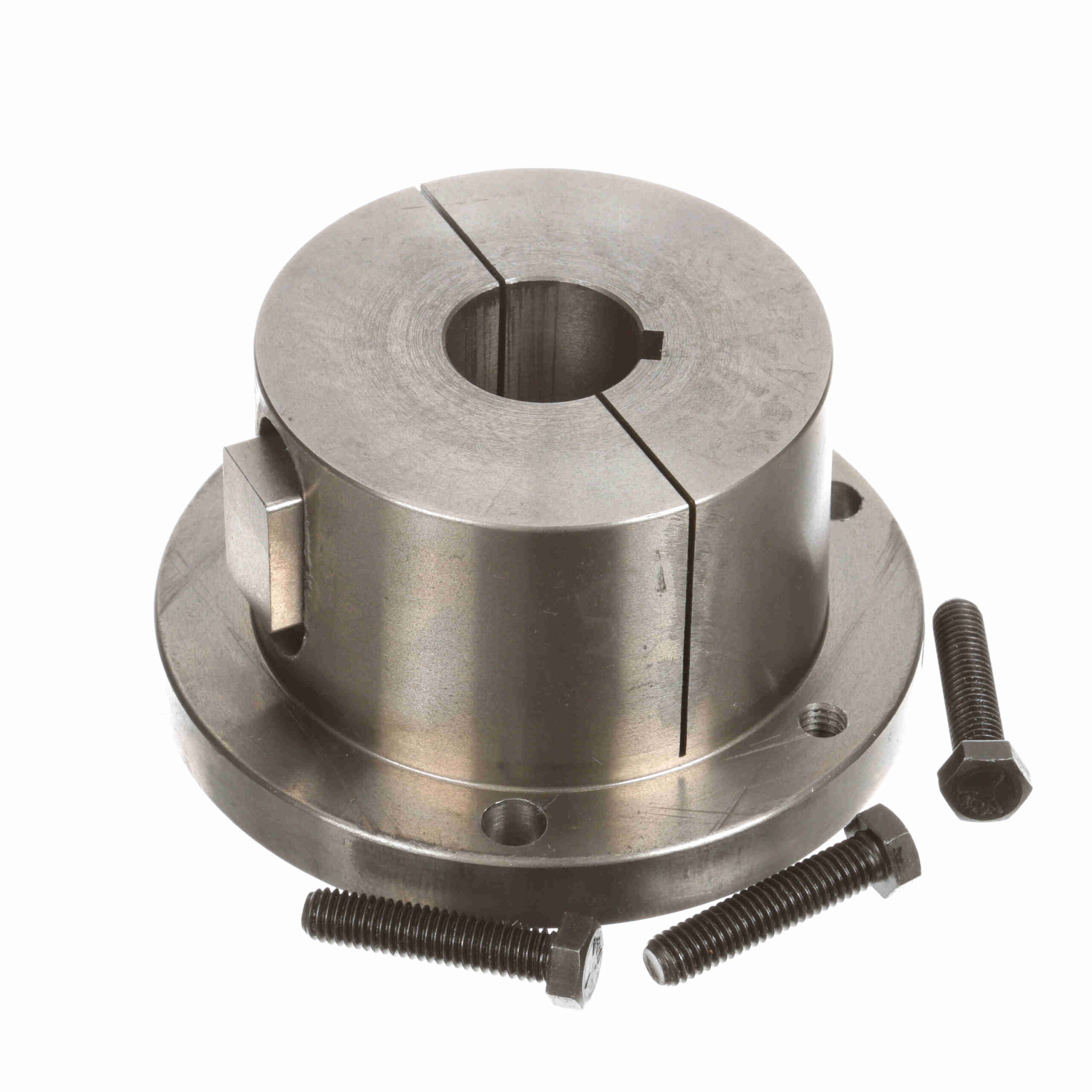

Browning Split Taper Bushing – Inch Bore Type – R1 1 5/16
$394.51
Out of stock
Out of stock
| Bore Size (in): | 1.3125 in | Length Through Bore (in): | 2.875 in |
|---|---|---|---|
| Model Name: | R1-R2_Type1_BushingMaster | Total Length (in): | 2.875 in |
| Wrench Torque (in-lb): | 348 | Keyseat: | 5/16 x 5/32 |
| Material: | Sintered Steel or Ductile Iron | Compatible Bore Size [Max] (in): | 1.3125 in |
| Cap Screws (Size): | 3/8 x 1 3/4 | Product Type: | Split Taper Bushing |
| Bushing Type: | R1 | Outside Diameter (in): | 5.375 in |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| Flange Thickness: | 0.625 | Barrel Diameter (Small End): | 3.875 |
| Flange Type: | Solid Flange | Barrel Diameter (Large End): | 4 |
| Mounting Type: | Conventional | Screw Length: | 1.75 |
| Includes: | Set Screw, Cap Screws and Ext. Key | Thread Size: | 3/8-16 |
| Bolt Circle Diameter (in): | 4.625 | UPC: | 662289290420 |
| Weight: | 10.12 LB | Packaged Length: | 5.38 Inches |
| Packaged Width: | 3 Inches | Packaged Height: | 5.38 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
