- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q2 1 13/16

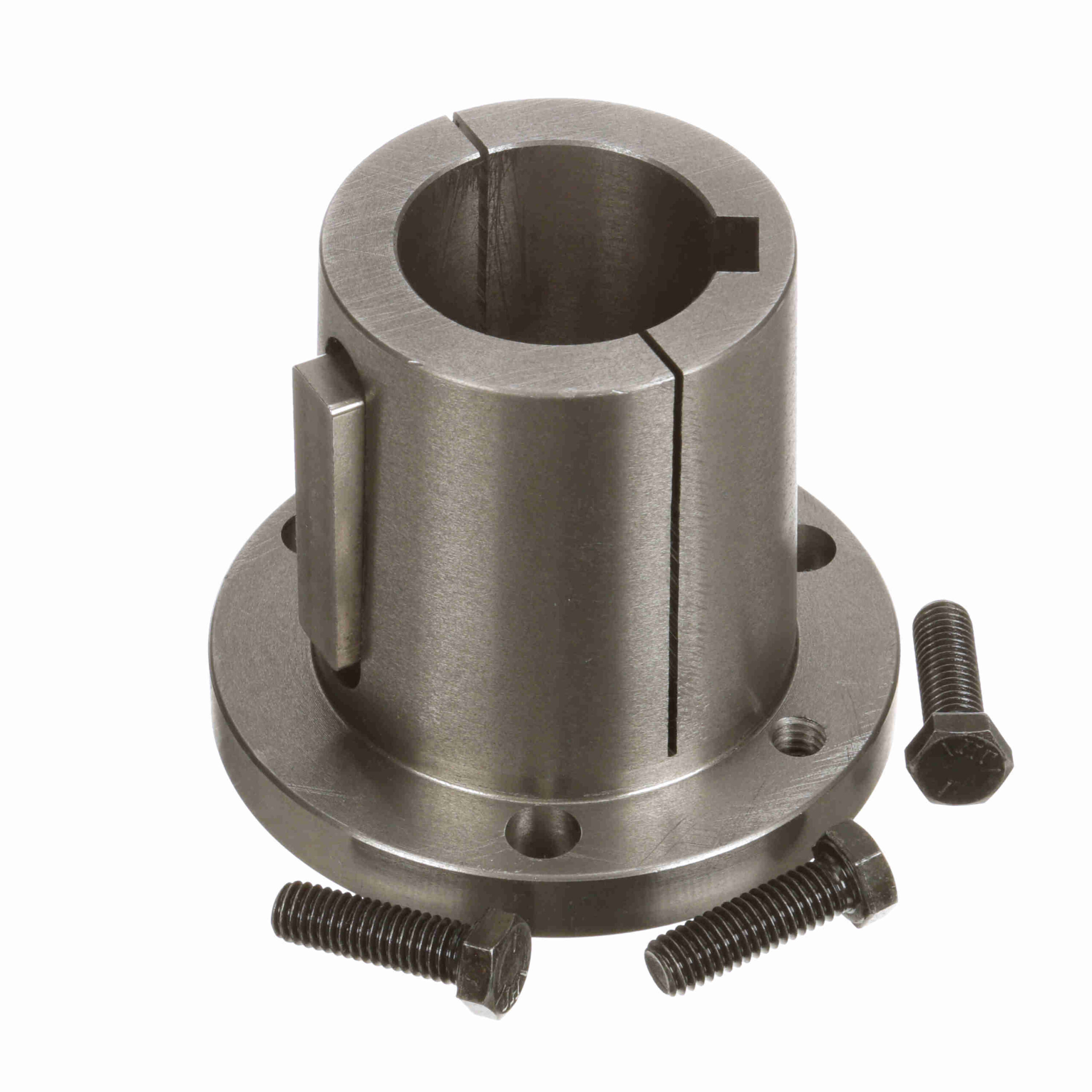

Browning Split Taper Bushing – Inch Bore Type – Q2 1 13/16
$174.95
Out of stock
Out of stock
| Total Length (in): | 3.5 in | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Cap Screws (Size): | 3/8 x 1 1/4 | Keyseat: | 1/2 x 1/4 |
| Length Through Bore (in): | 3.5 in | Bushing Type: | Q2 |
| Compatible Bore Size [Max] (in): | 1.8125 in | Wrench Torque (in-lb): | 348 |
| Bore Size (in): | 1.8125 in | Outside Diameter (in): | 4.125 in |
| Model Name: | Q2-Type1_Bushing_Master | Product Type: | Split Taper Bushing |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| Barrel Diameter (Small End): | 2.7032 | Barrel Diameter (Large End): | 2.875 |
| Thread Size: | 3/8-16 | Flange Type: | Solid Flange |
| Screw Length: | 1.25 | Includes: | Cap Screws and Ext. Key |
| Flange Thickness: | 0.5 | Mounting Type: | Conventional |
| Bolt Circle Diameter (in): | 3.375 | UPC: | 662289280063 |
| Weight: | 4.14 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 4.3 Inches | Packaged Height: | 2.7 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
